Axle Shaft Assembly

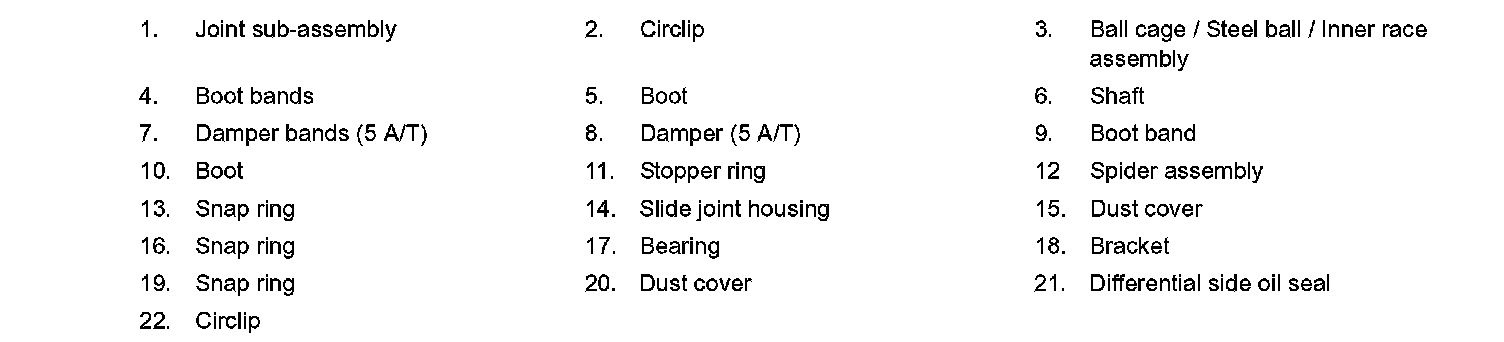

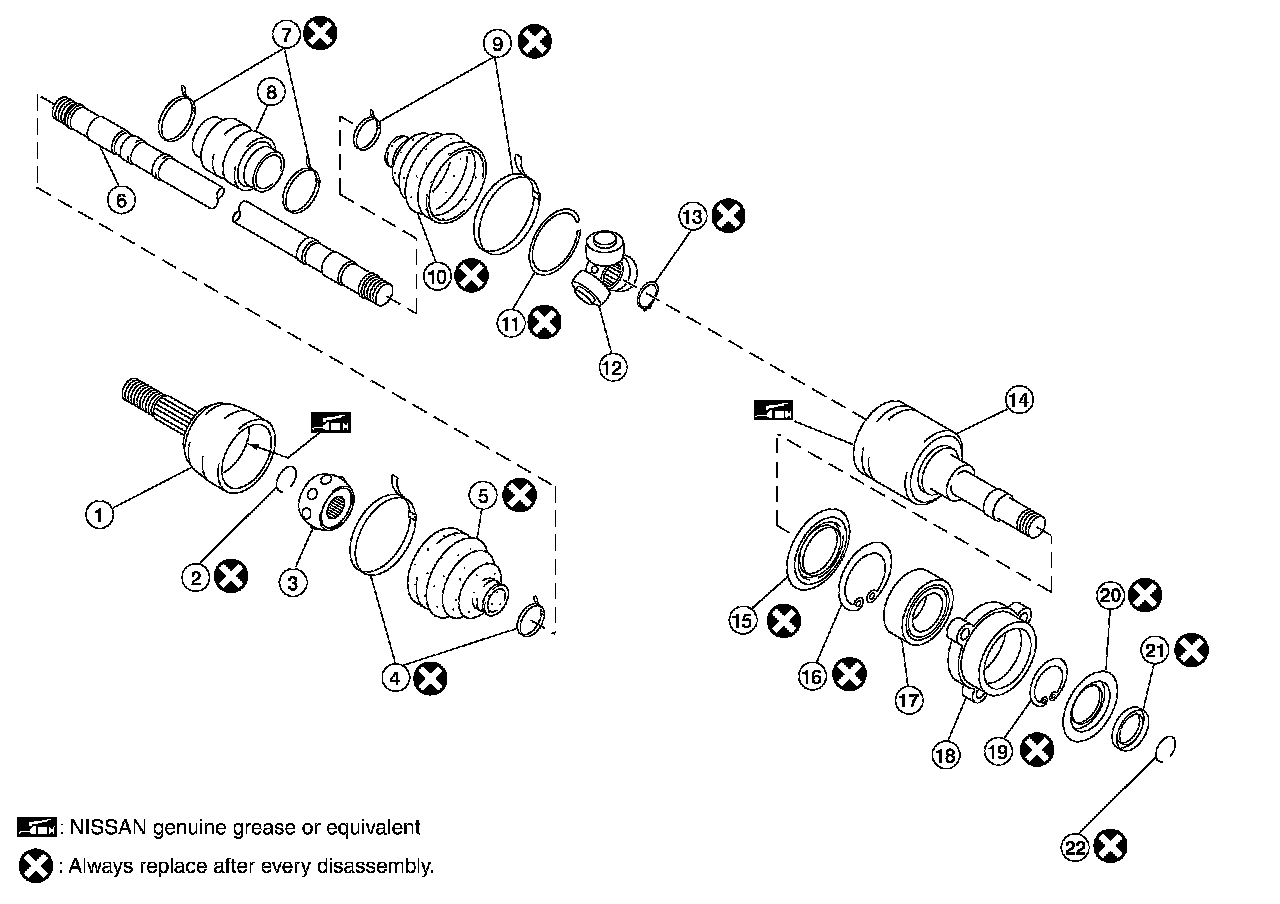

FRONT DRIVE SHAFT (Right Side) 1 of 2:
FRONT DRIVE SHAFT (Right Side) 2 of 2:

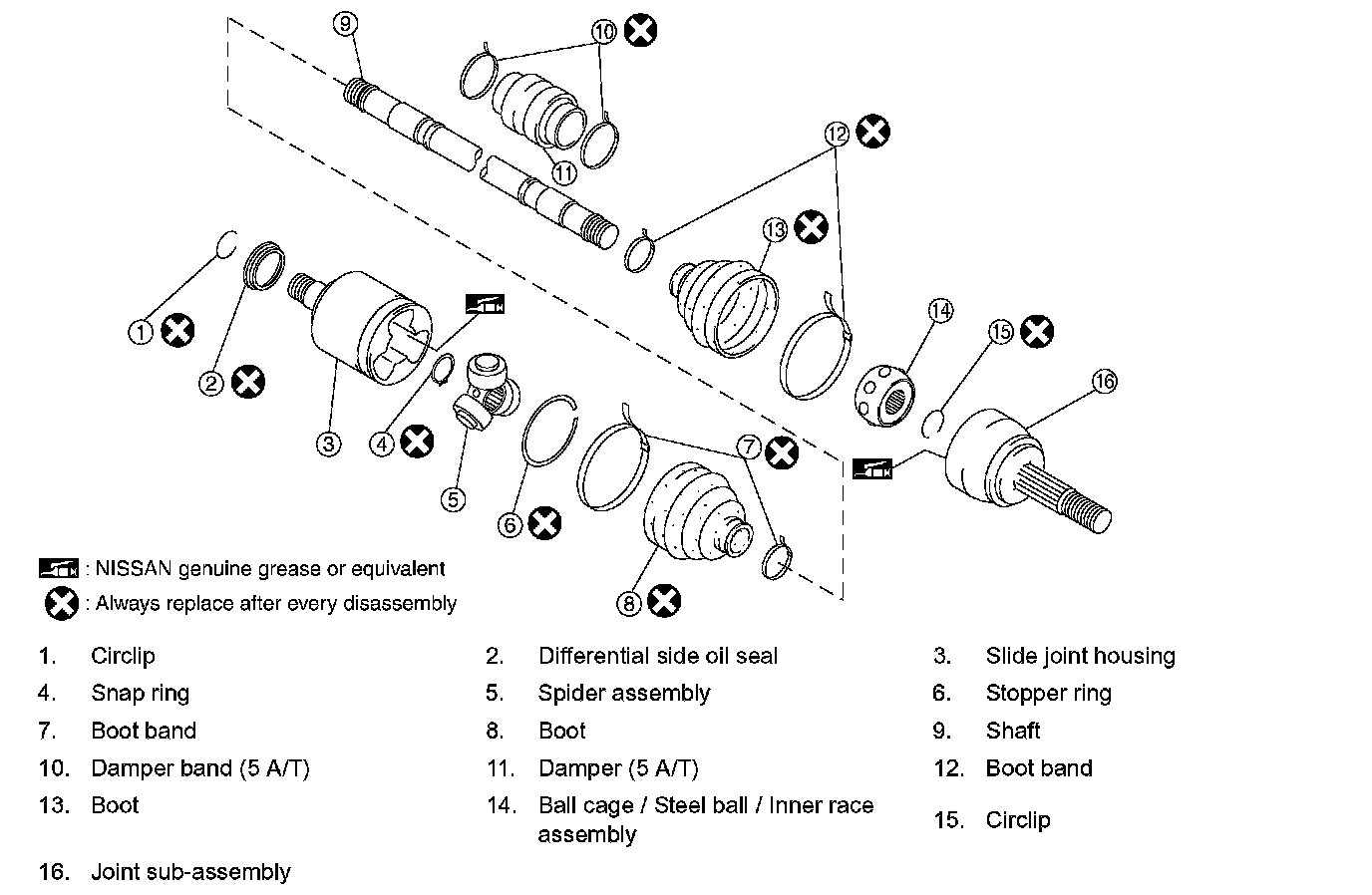

FRONT DRIVE SHAFT (Left Side):
