Diagrams
>>
Exploded Views
>>
Timing Chain
Timing Chain

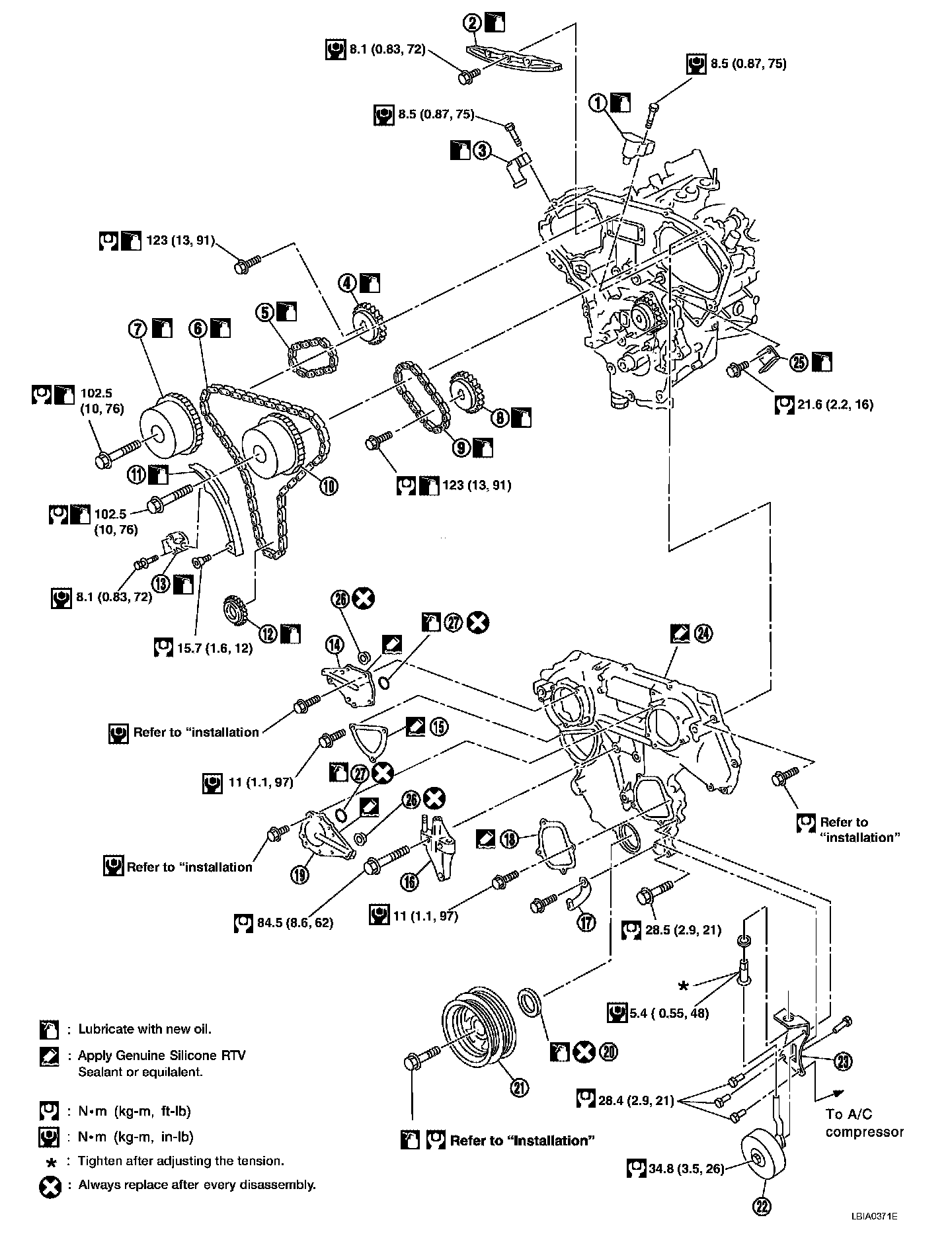

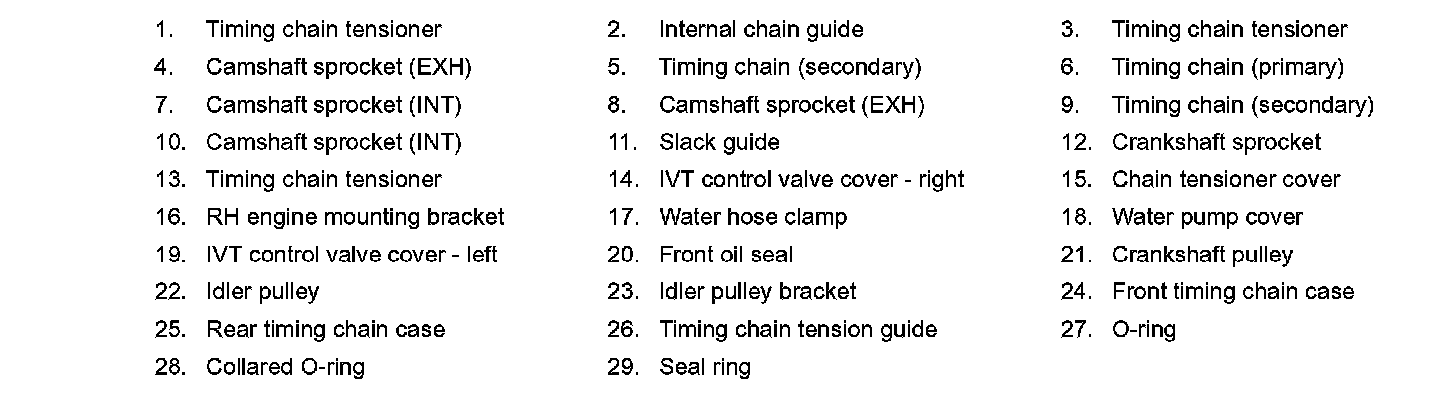

FRONT
TIMING CHAIN
CASE
Removal and Installation

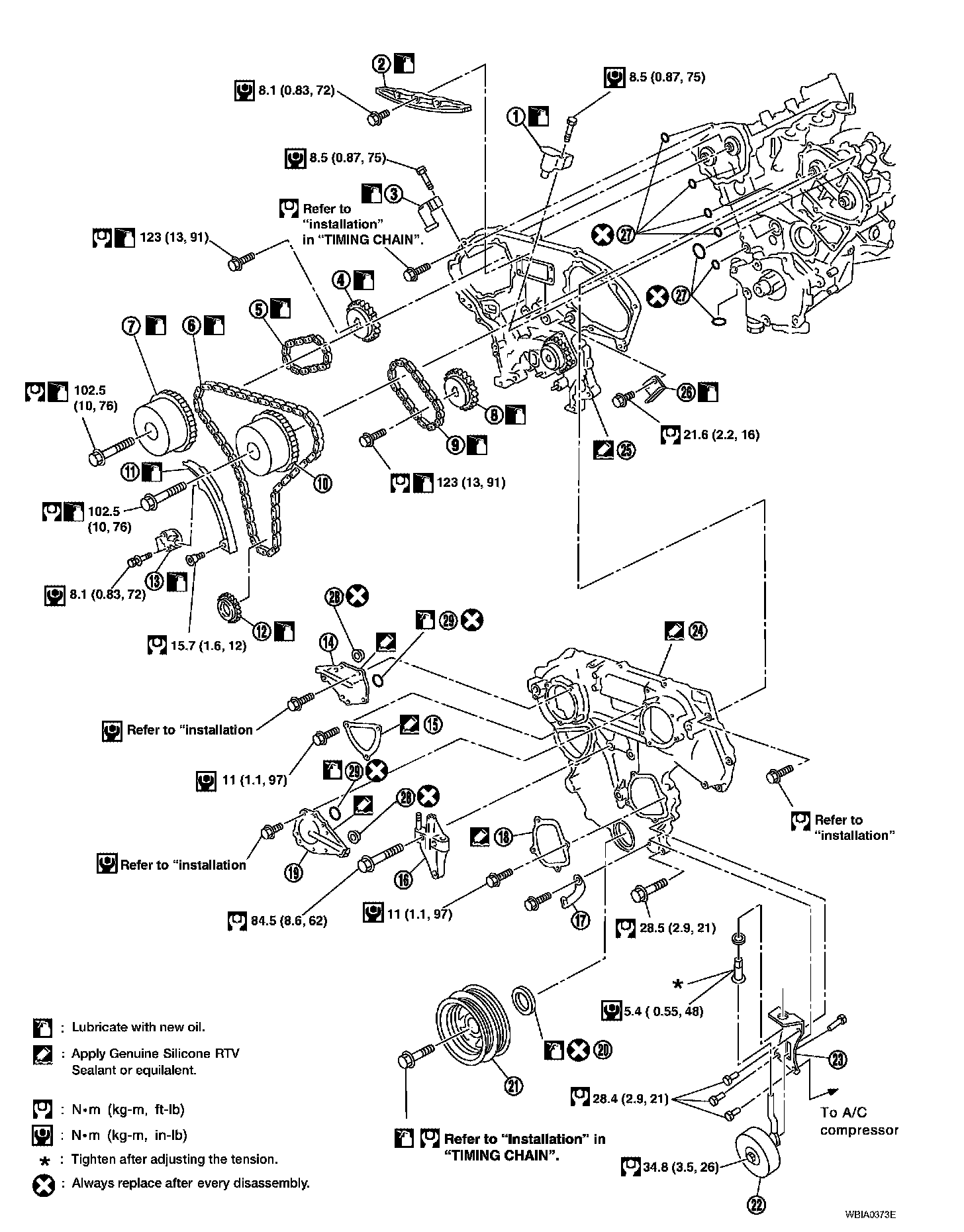

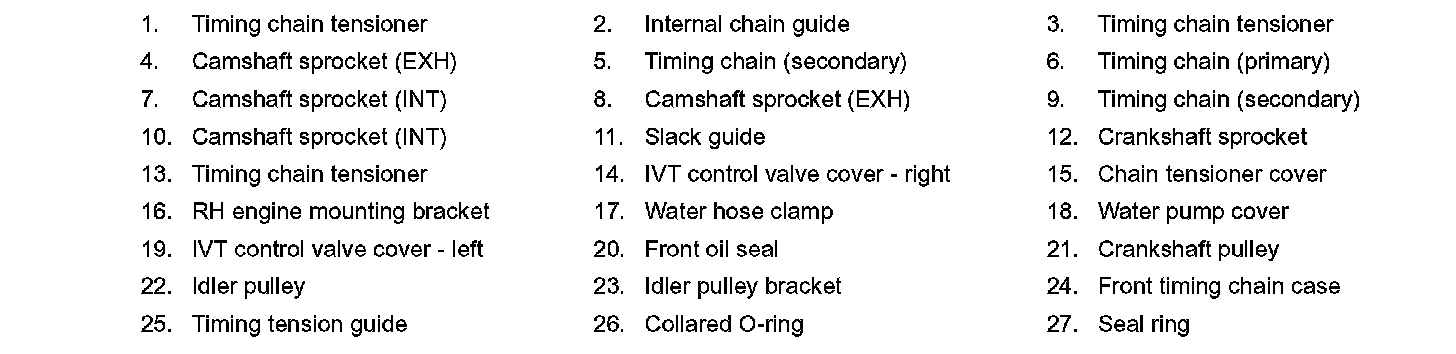

TIMING CHAIN
Removal and Installation
