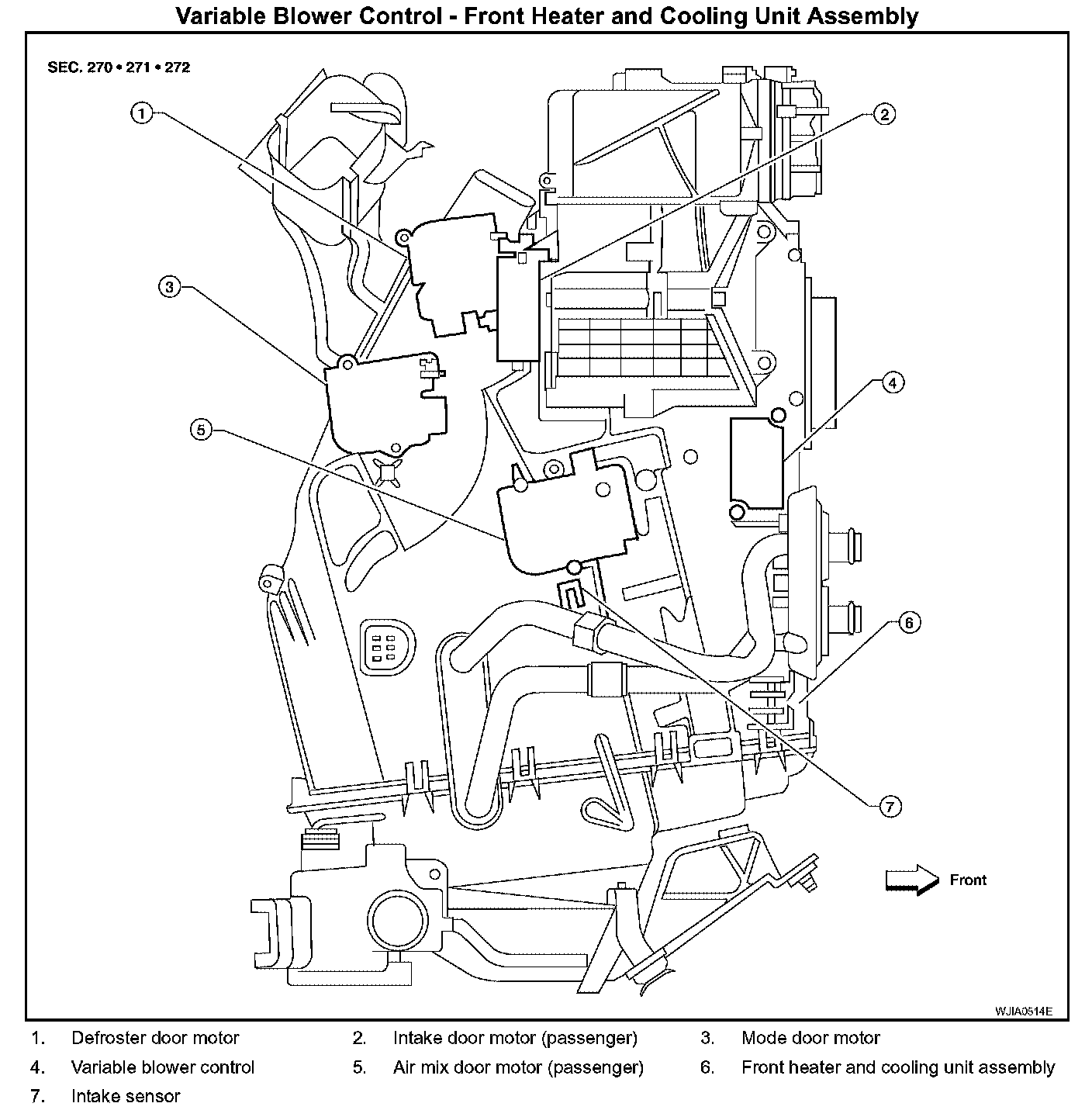

Variable Blower Control

VARIABLE BLOWER CONTROL




Removal and Installation

REMOVAL
1. Remove the instrument passenger lower panel and glove box.
2. Remove the center console trim panel.
3. Disconnect the variable blower control electrical connector.
4. Remove the two screws and remove the variable blower control.

INSTALLATION
Installation is in the reverse order of removal.
