Power and Ground Distribution
>>
Power Distribution Module
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
Initial Inspection and Diagnostic Overview

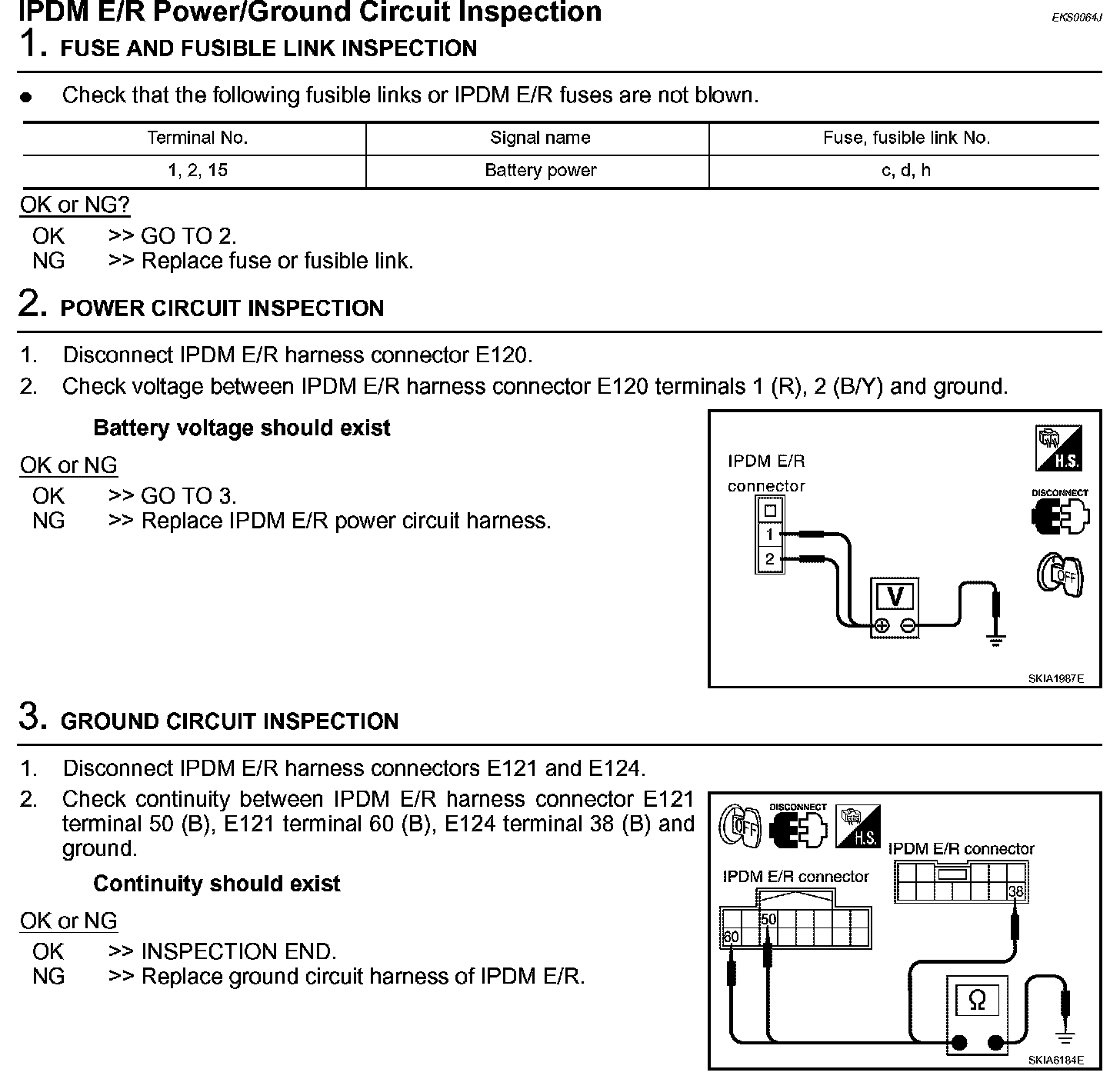

IPDM E/R Power/Ground Circuit Inspection (Step 1 - 3):

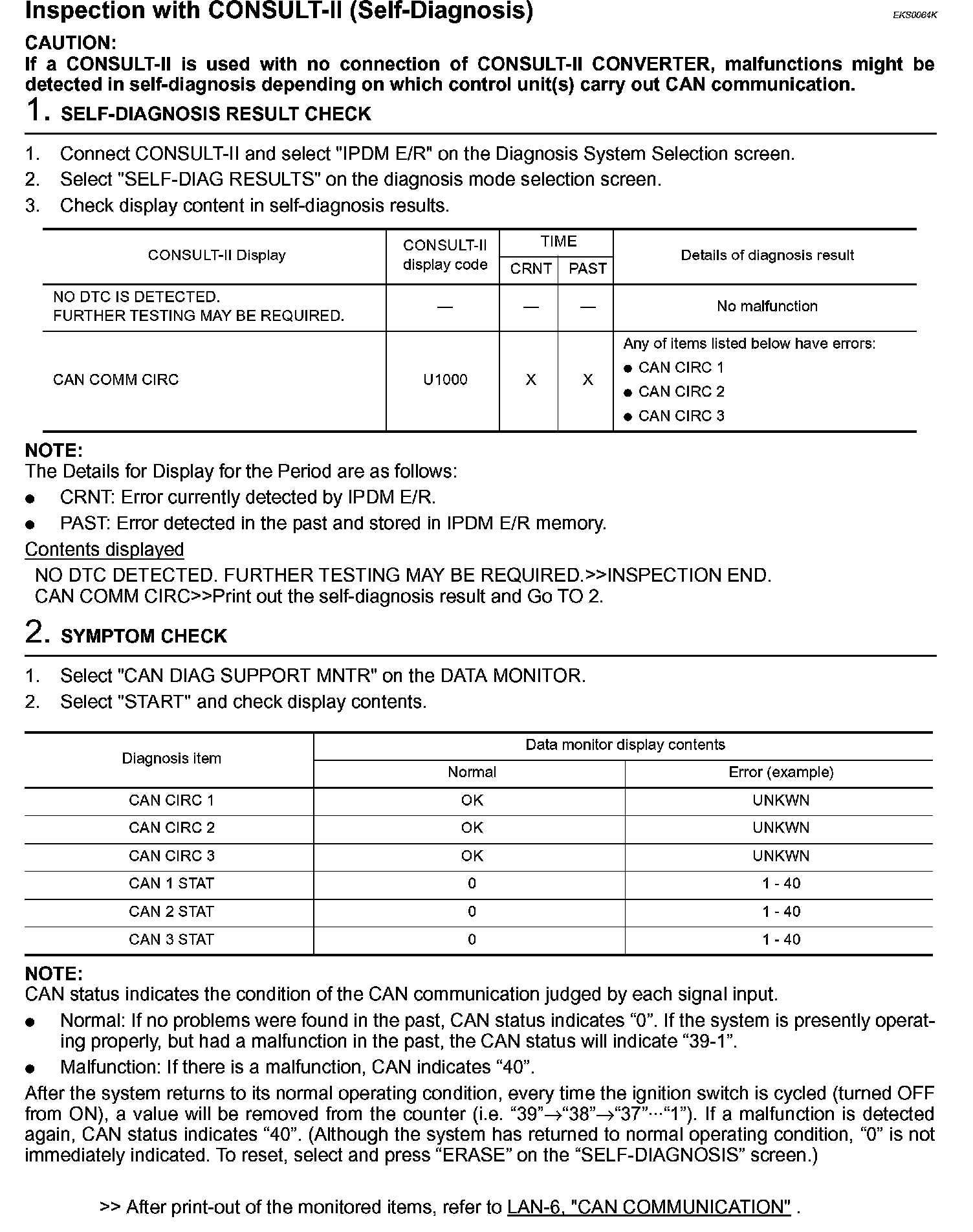

Inspection With CONSULT-II (Self-Diagnosis):
