Terminals and Reference Value For BCM

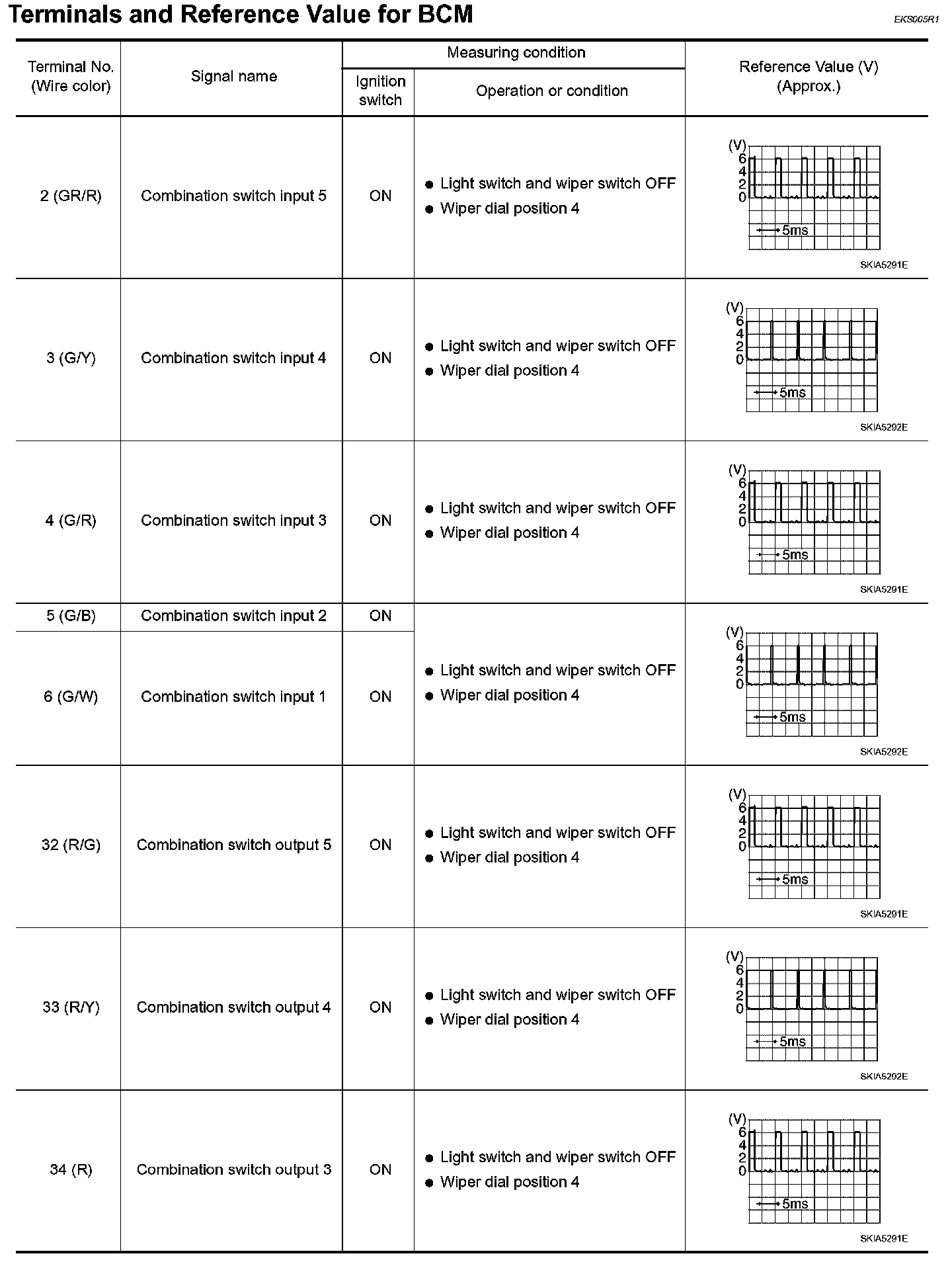

Terminals And Reference Value For BCM Part 1:

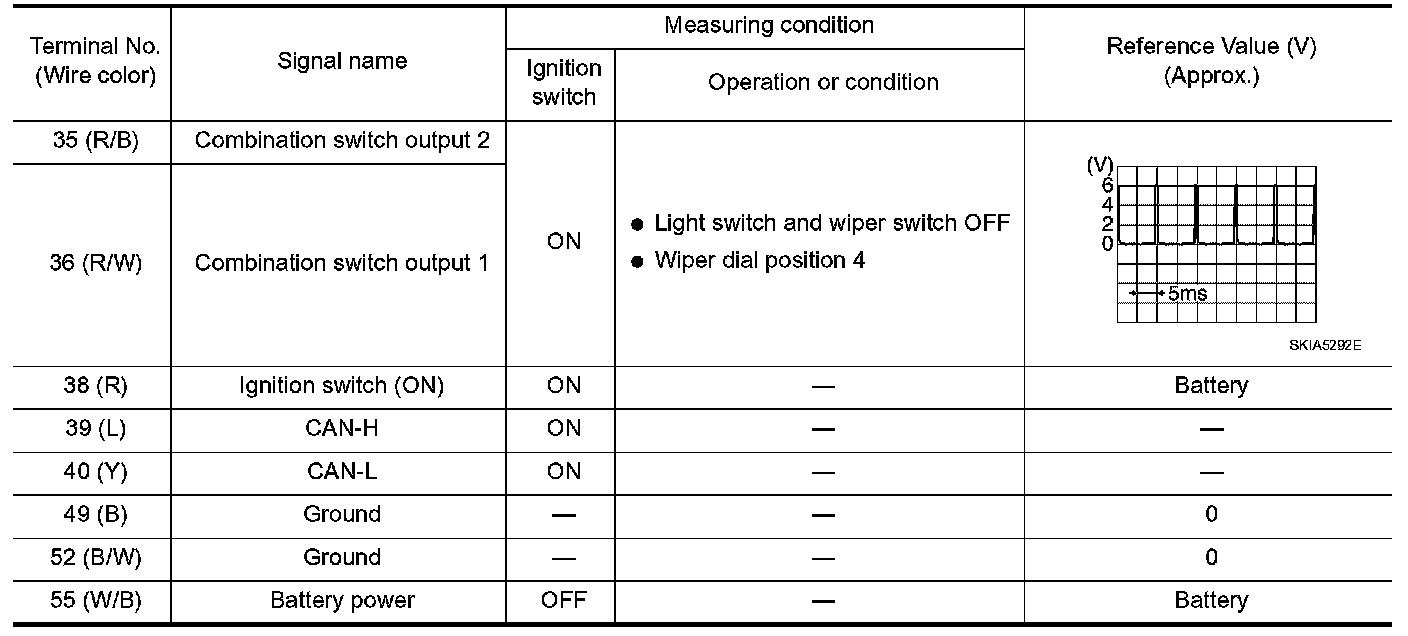

Terminals And Reference Value For BCM Part 2:
