Air Temperature Sensor ( Ambient / Intake ): Testing and Inspection

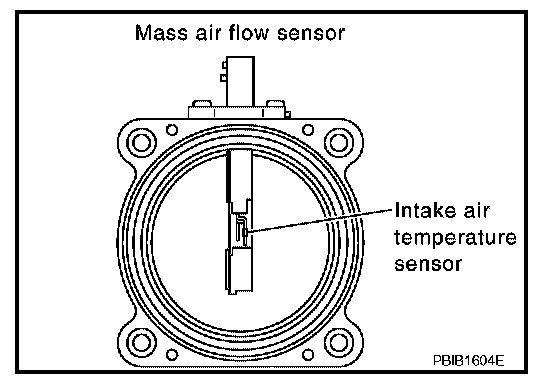

INTAKE AIR TEMPERATURE SENSOR

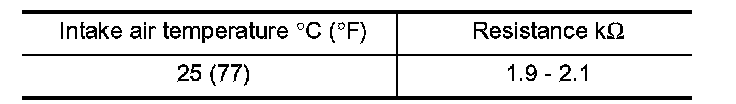

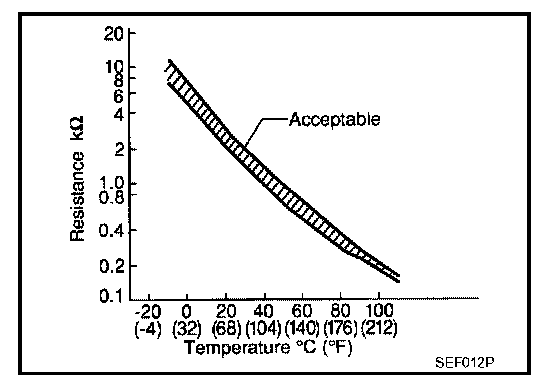

1. Check resistance between intake air temperature sensor terminals 5 and 6 under the following conditions.
2. If NG, replace mass air flow sensor (with intake air temperature sensor).
