Coolant Temperature Sensor/Switch (For Computer): Testing and Inspection

ENGINE COOLANT TEMPERATURE SENSOR

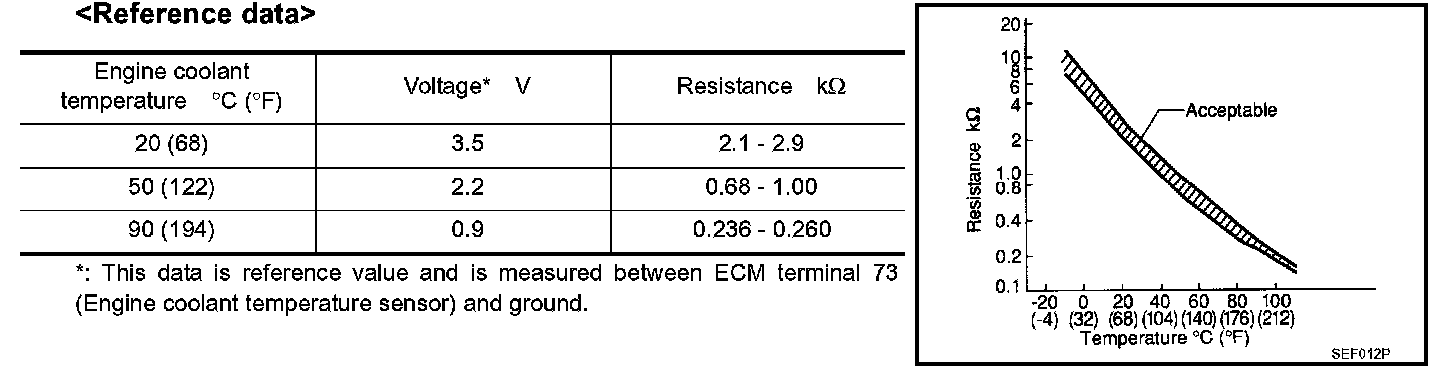

Check resistance as shown in the figure.

ENGINE COOLANT TEMPERATURE SENSOR







1. Check resistance between engine coolant temperature sensor terminals 1 and 2 as shown in the figure.
2. If NG, replace engine coolant temperature sensor.
