Step A - Confirm This Bulletin Applies
Step A: Confirm This Bulletin Applies1. With CONSULT-II "ON", print the Freeze Frame data as follows:
[START Nissan] >> [ENGINE] >> [Self-DIAG Results] >> [F.F. Data] >> [PRINT]
2. Attach this printout to the Repair Order.

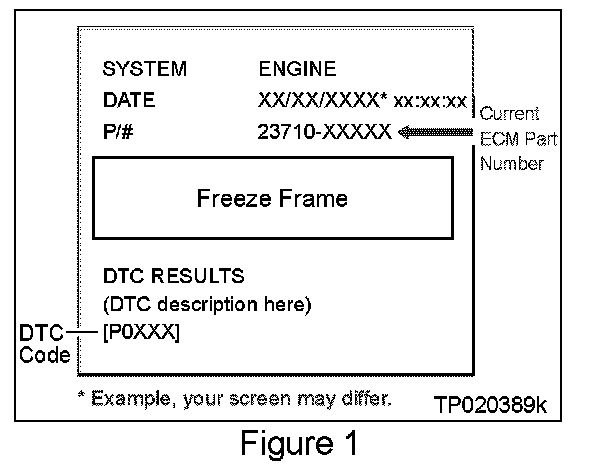

^ Figure 1 is an example of the F.F. Data printout.
^ The Freeze Frame data that you've printed contains the ECM Part Number (P/N).
^ The ECM part number will be used to see if this bulletin applies or not.
3. Check the ECM Part Number on the printout from Step 1 (Figure 1);

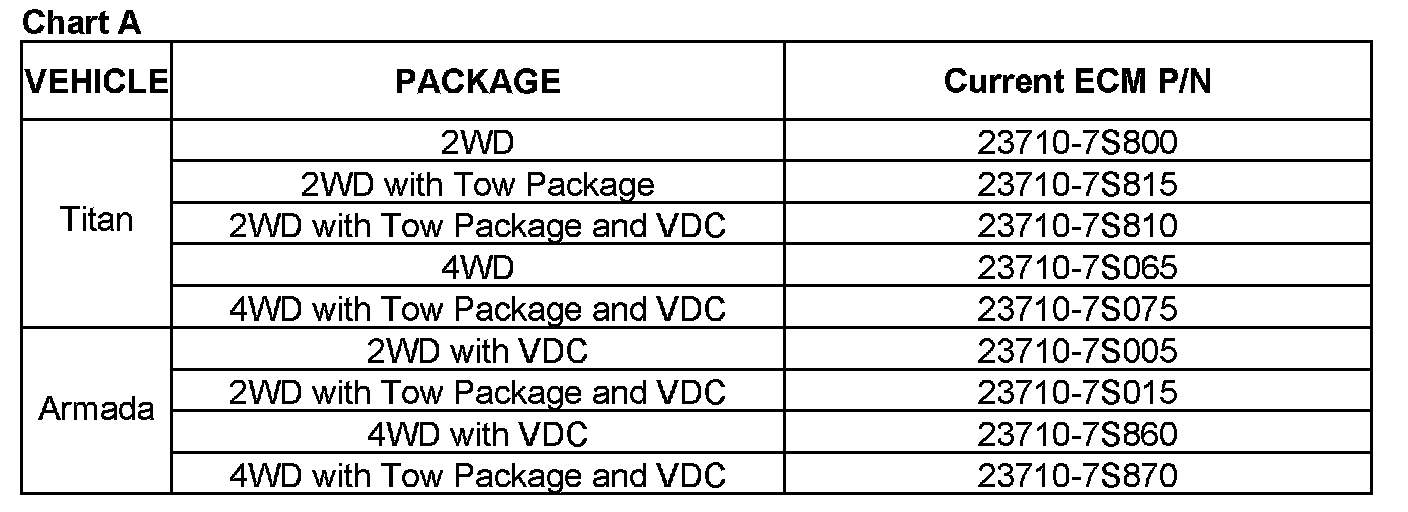

^ Compare your vehicle's ECM P/N to those shown under Current ECM P/N in Chart A, above:
^ If it's in that column, this bulletin applies.
A. If your vehicle's ECM P/N matches a P/N in the chart above:
^ Perform ECM Reprogramming, starting on Step B, then
^ Perform A/F Sensor Test on step C
B. If your vehicle's ECM P/N does not match a P/N in the chart above:
^ This bulletin does not apply. Refer to ASIST for further diagnostic and repair information.
