System Specifications

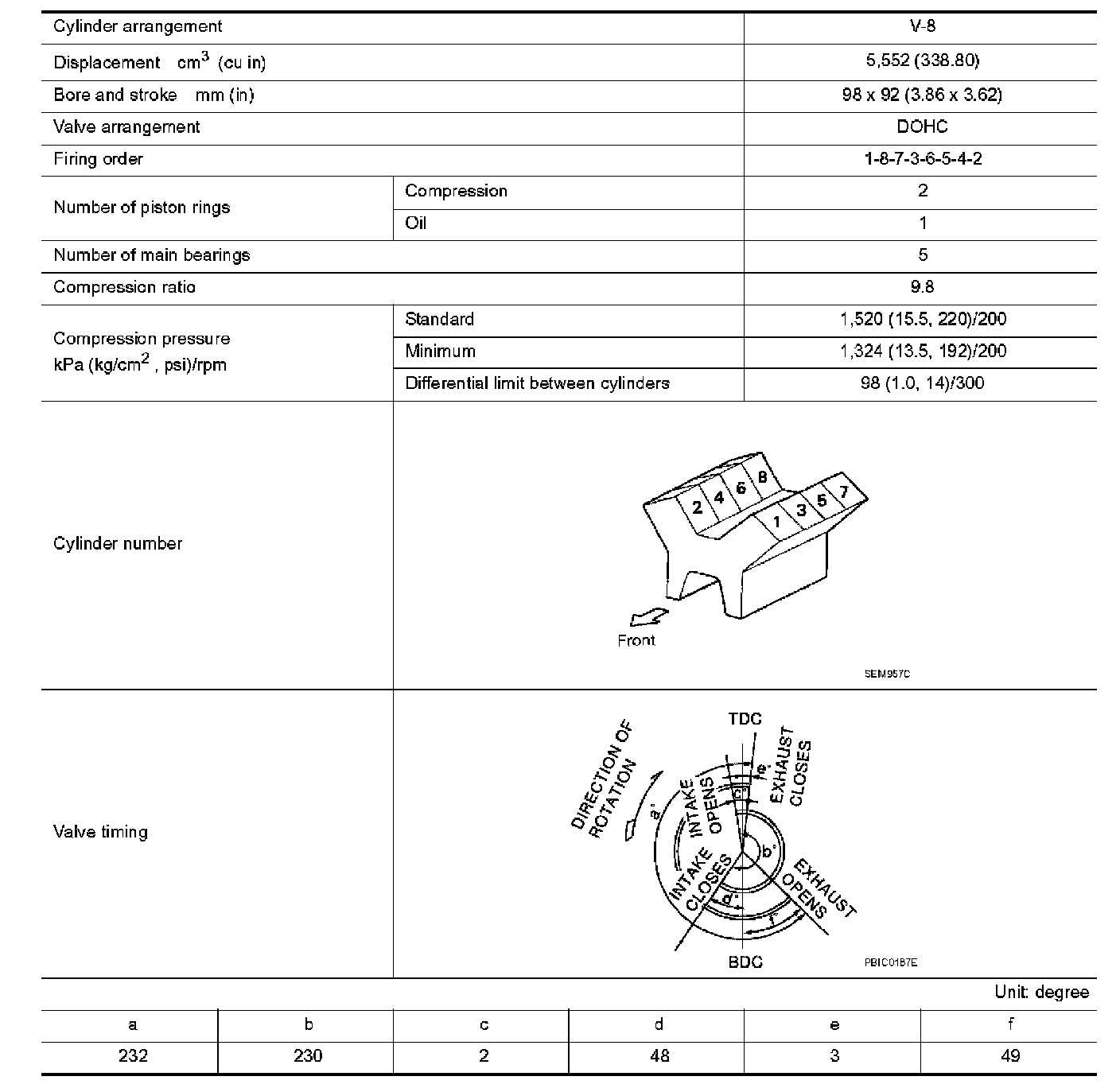

General Specifications:

Drive Belts:

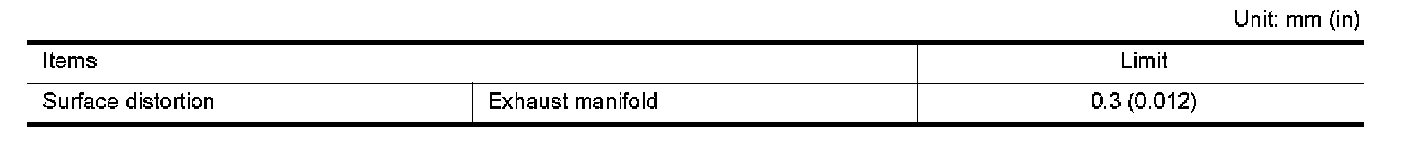

Exhaust Manifold:

Camshaft And Camshaft Bearings:

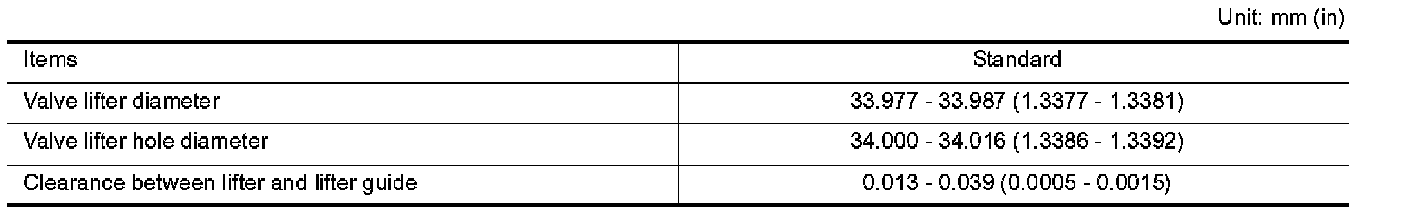

Valve Lifter:

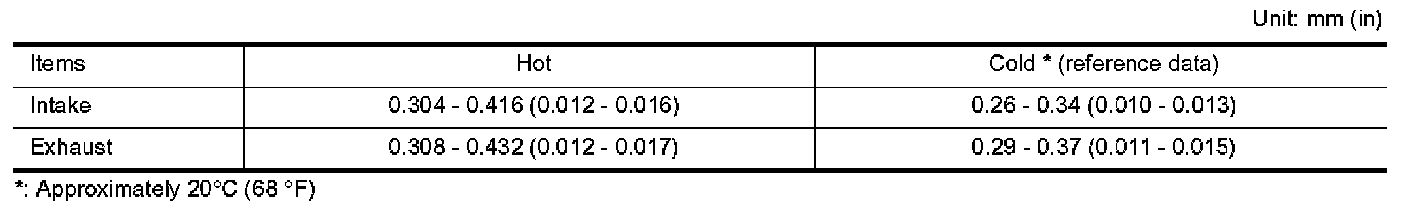

Valve Clearance:

Available Valve Lifter:

Cylinder Head:

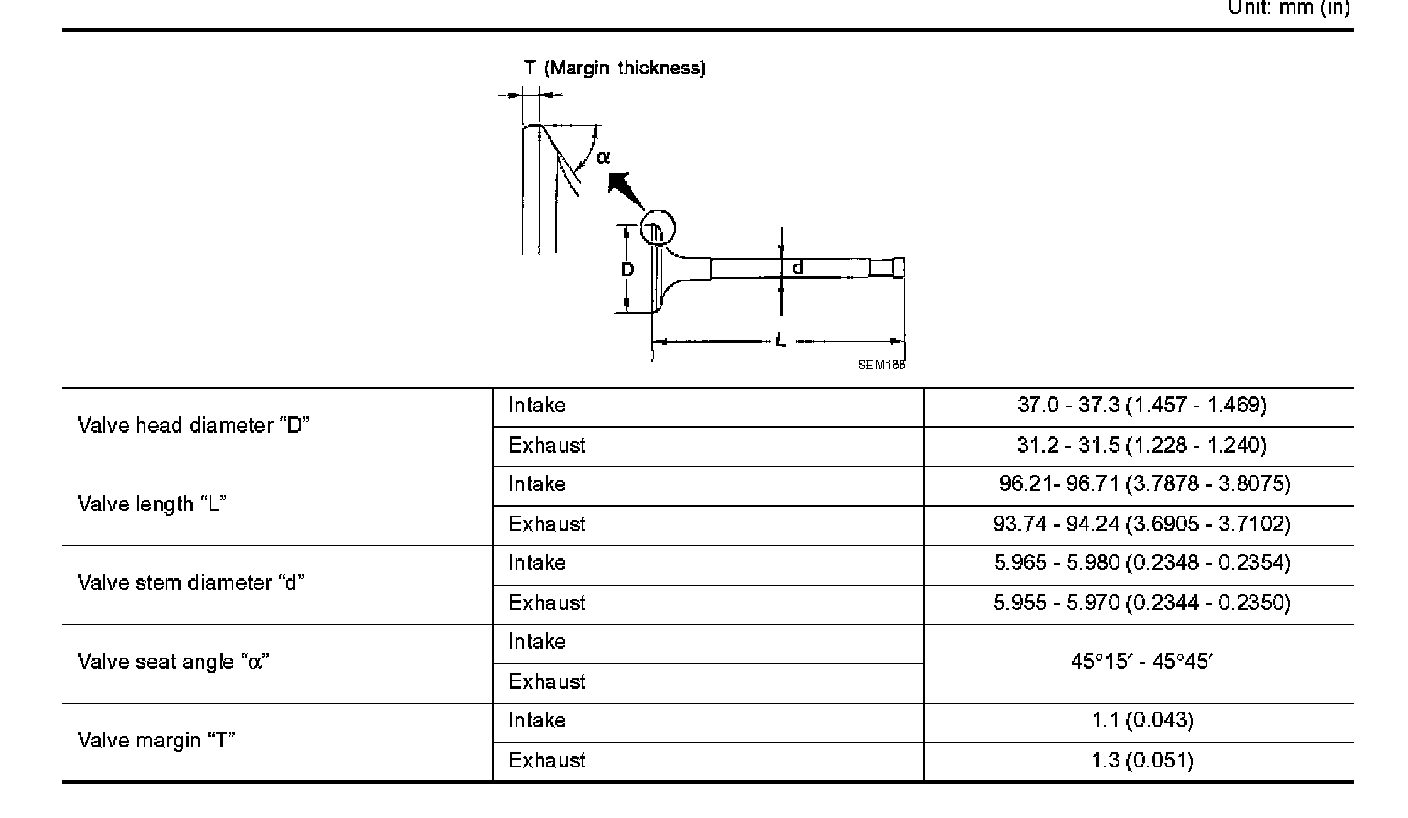

Valve Dimensions:

Valve Guide:

Valve Seat:

Valve Spring:

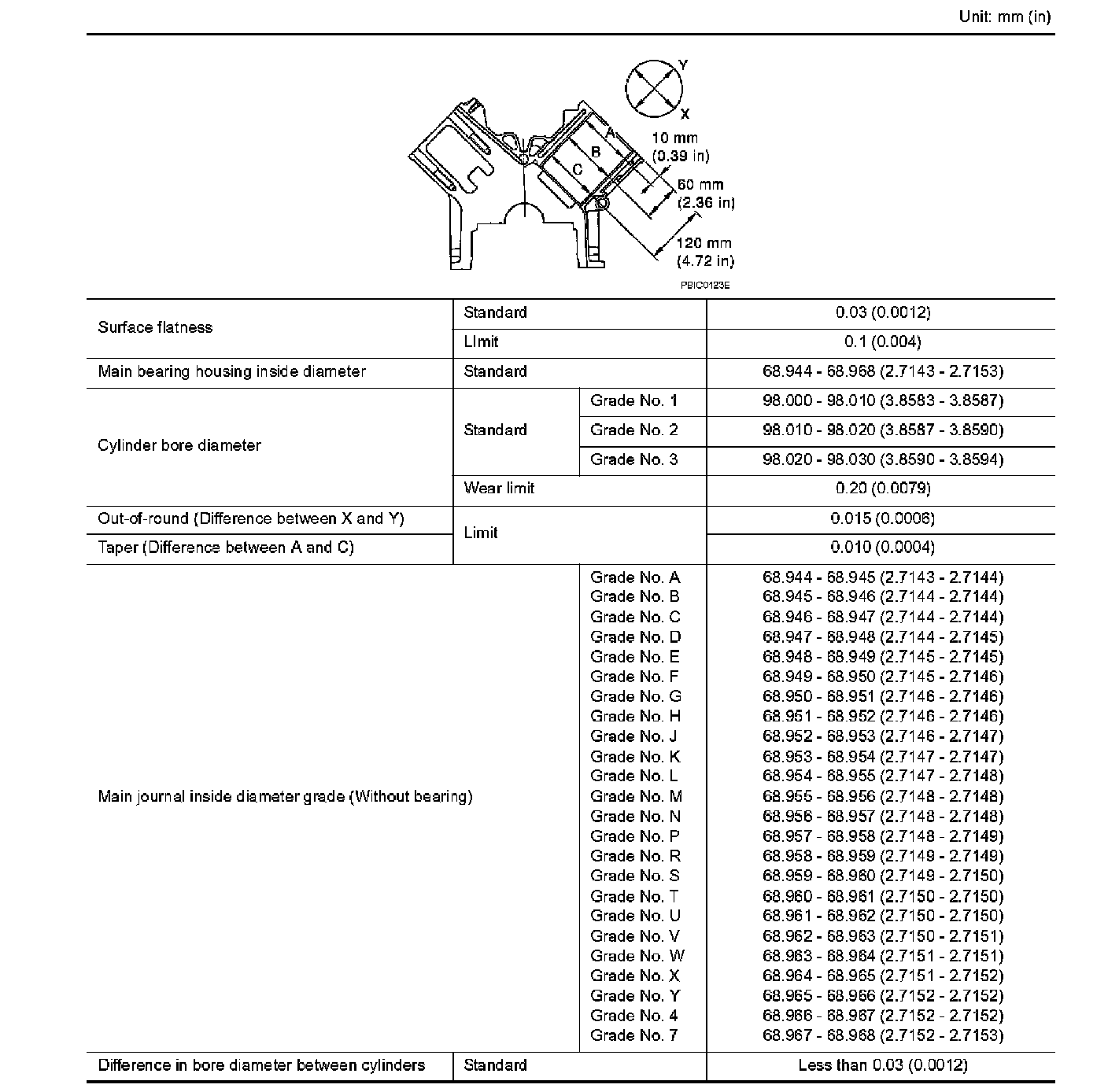

Cylinder Block:

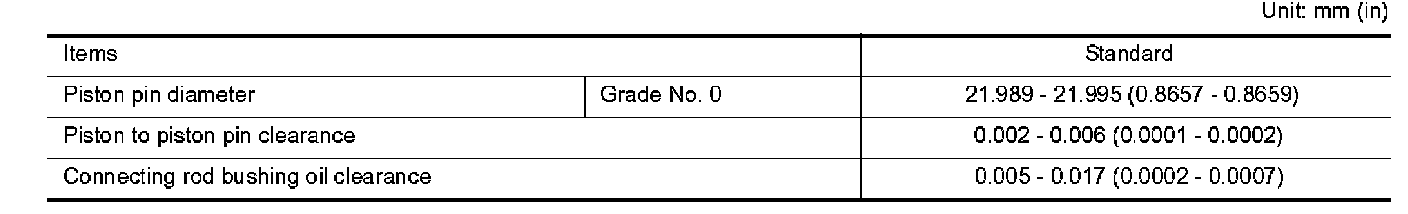

Piston, Piston Ring And Piston Pin:

Piston Ring:

Piston Pin:

Connecting Rod:

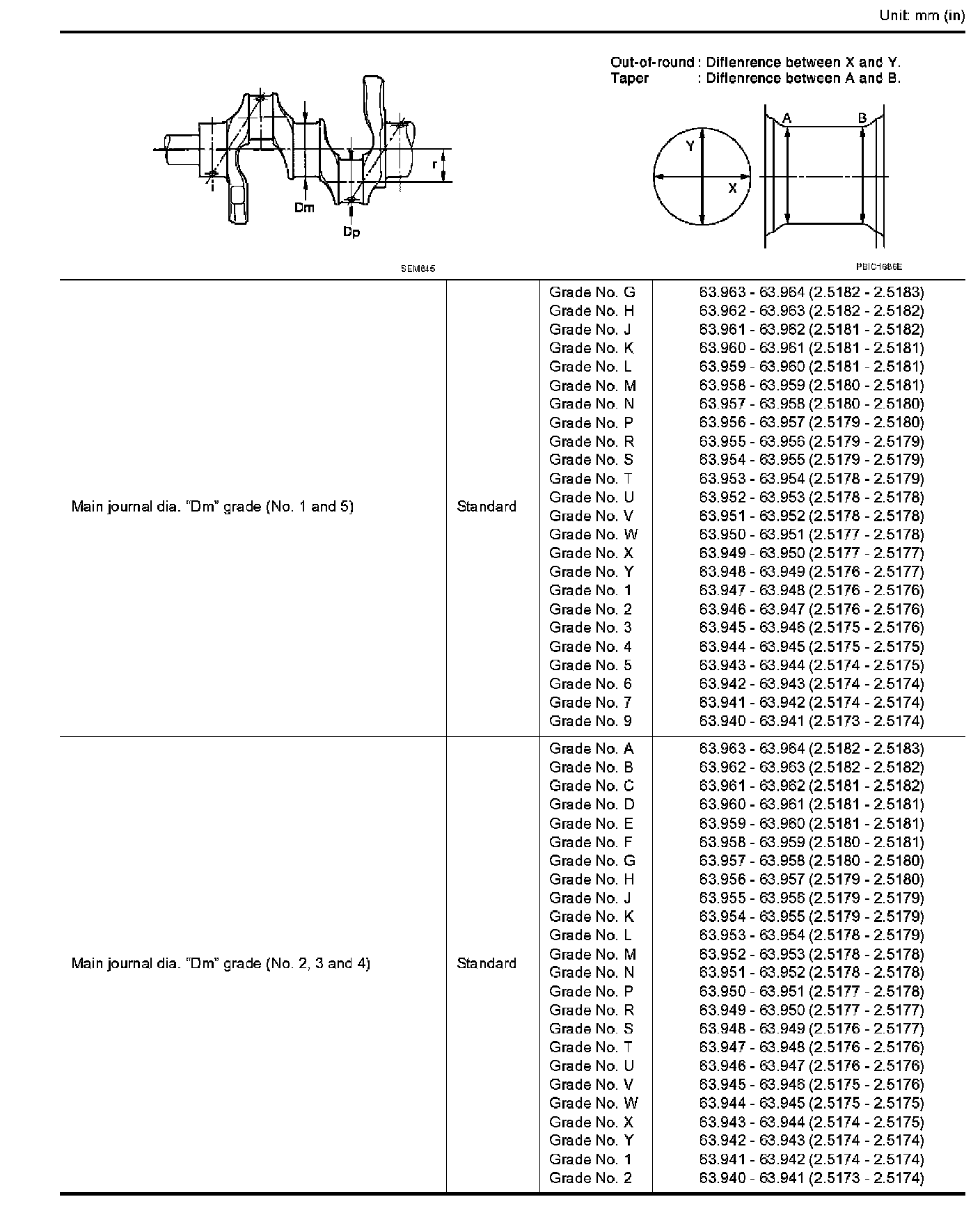

Crankshaft Part 1:

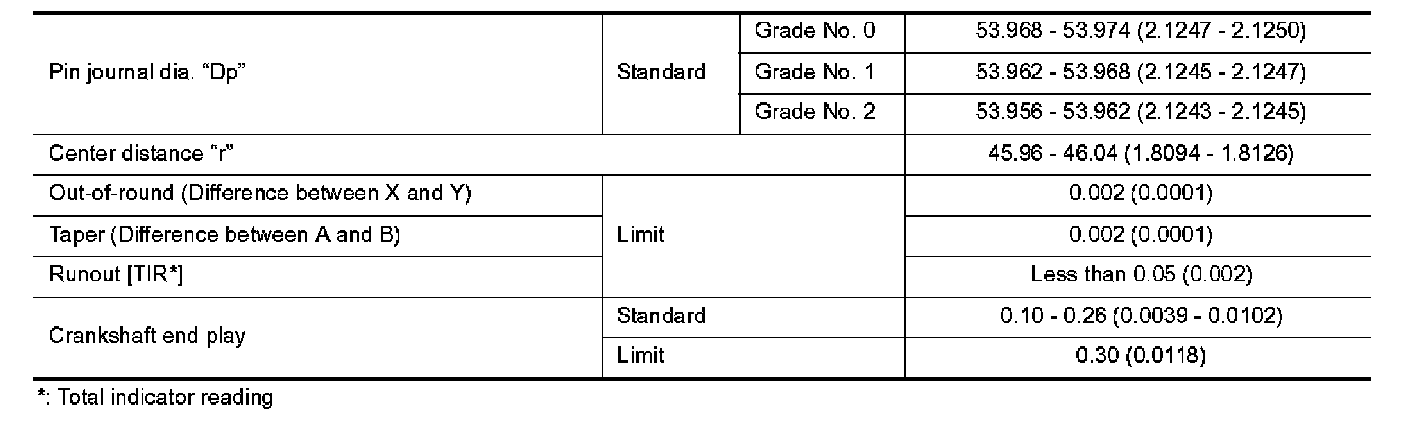

Crankshaft Part 2:

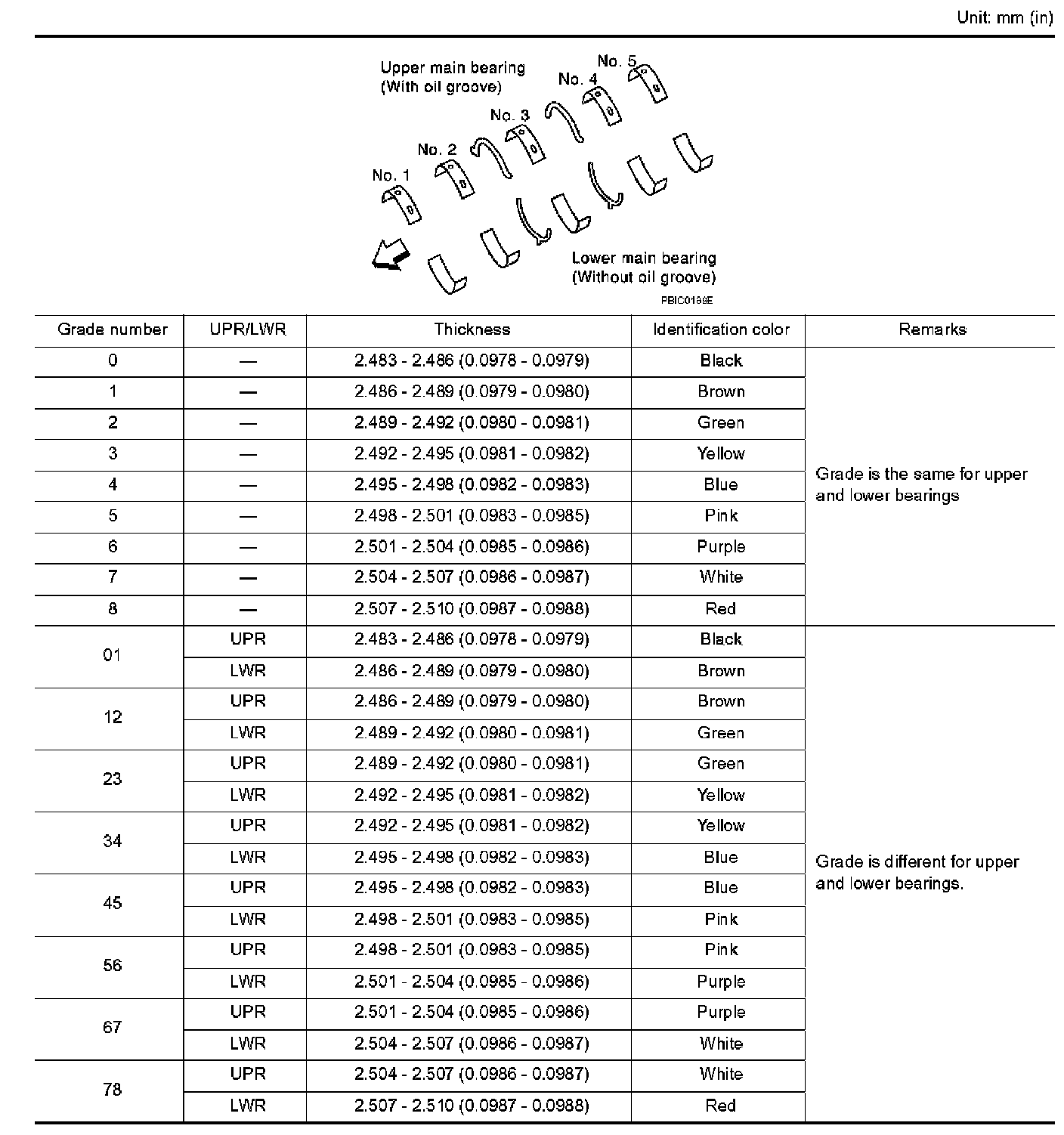

Main Bearing:

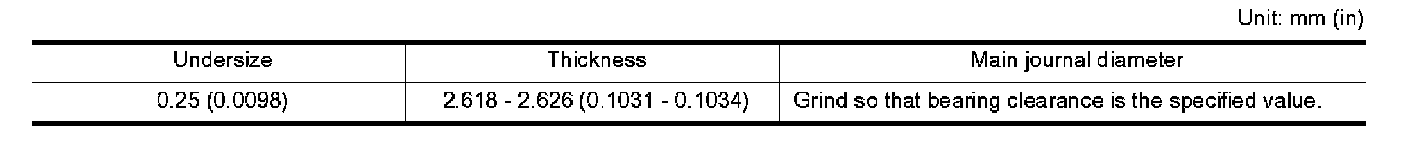

Main Bearing -- Undersize:

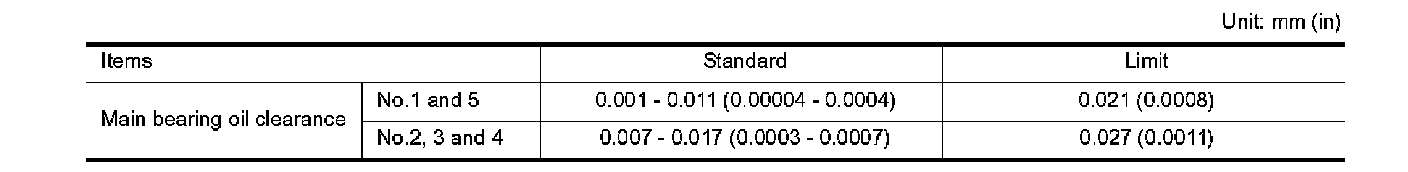

Main Bearing Oil Clearance:

Connecting Rod Bearing:

Connecting Rod Bearing -- Undersize:

Connecting Rod Bearing Oil Clearance:

Tightening Torque
Connecting rod bolts
Step 1: 19.6 Nm (1.5 kg-m, 11 ft. lbs.)
Step 2: 90° Angle tightening
Crankshaft pulley bolt torque
Step 1: 93.1 Nm (9.5 kg-m, 69 ft. lbs.)
Step 2: additional 90° (angle tightening)


Main Bearing Caps







Follow the steps below to tighten each main bearing cap bolts.
a. Apply engine oil to threads and seating surface of bolts, and tighten all bolts temporarily

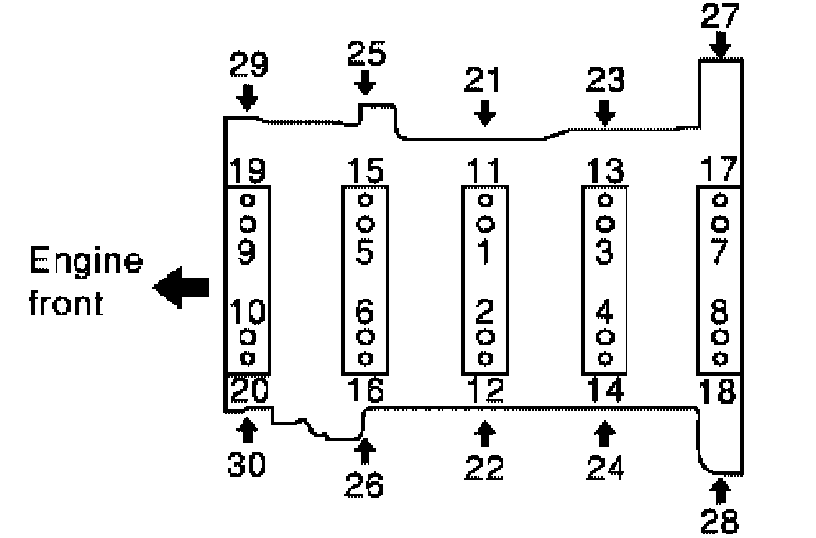

Main bearing cap bolts in order of 1 to 10: 39.2 Nm (4.0 kg-m, 29 ft. lbs.)
Main bearing cap sub bolt in order of 11 to 20: 29.4 Nm (3.0 kg-m, 22 ft. lbs.)
Main bearing cap bolts in order of 1 to 10: 40°

CAUTION: Measure tighten angle in step "d" and "e" with angle wrench (SST). Do not measure visually.

Main bearing cap sub bolt in order of 11 to 20: 30°
Side bolt to in order of 21 to 30: 49 Nm (5.0 kg-m, 36 ft. lbs.)
^ Rotate crankshaft by hands after bolts are tightened. Check if it rotates smoothly.
