P1032

DTC P1032 A/F SENSOR 1 HEATER

Description




SYSTEM DESCRIPTION
The ECM performs ON/OFF duty control of the A/F sensor 1 heater corresponding to the engine operating condition to keep the temperature of A/F sensor 1 element at the specified range.

CONSULT-II Reference Value In Data Monitor Mode:

CONSULT-II Reference Value in Data Monitor Mode

On Board Diagnosis Logic:

On Board Diagnosis Logic

DTC Confirmation Procedure

NOTE: If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.

TESTING CONDITION: Before performing the following procedure, confirm that battery voltage is between 10.5 V and 16 V at idle.

WITH CONSULT-II




1. Turn ignition switch ON and select "DATA MONITOR" mode with CONSULT-II.
2. Start engine and let it idle for at least 10 seconds.
3. If 1st trip DTC is detected, go to "Diagnostic Procedure" below.

WITH GST
Follow the procedure "WITH CONSULT-II" above.

EC-AF1HB1-01:

EC-AF1HB2-01:

Wiring Diagram

Diagnostic Procedure

Diagnostic Procedure (Step 1):

Diagnostic Procedure (Steps 2 - 5):

Diagnostic Procedure (Step 6):

Component Inspection

AIR FUEL RATIO (A/F) SENSOR 1 HEATER

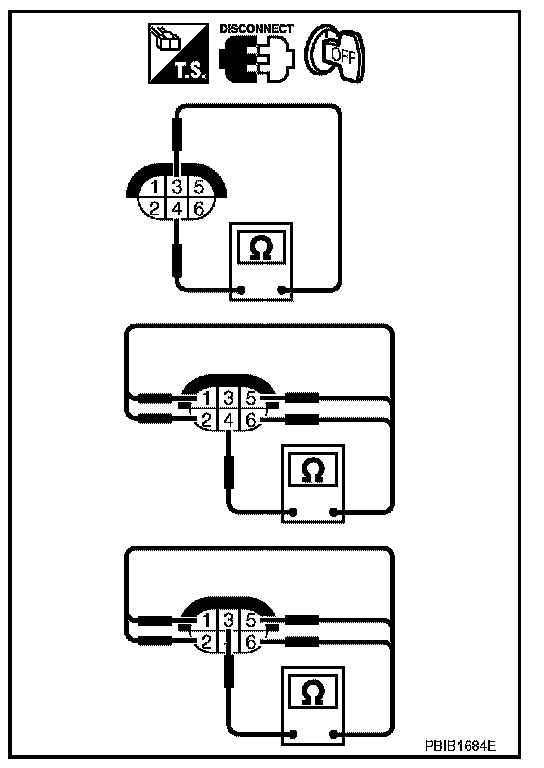

Check resistance between terminals 3 and 4.

Resistance: 2.3 - 4.3 Ohms at 25 °C (77 °F)

Check continuity between terminals 3 and 1, 2, 5, 6, terminals 4 and 1, 2, 5, 6.

Continuity should not exist.

If NG, replace the A/F sensor 1.

CAUTION:
- Discard any A/F sensor which has been dropped from a height of more than 0.5 m (19.7 in) onto a hard surface such as a concrete floor; use a new one.
- Before installing new A/F sensor, clean exhaust system threads using Heated Oxygen Sensor Thread Cleaner tool J-43897-18 or J-43897-12 and approved anti-seize lubricant.
