CONSULT-II Display Items ("Self-Diag [Current]")

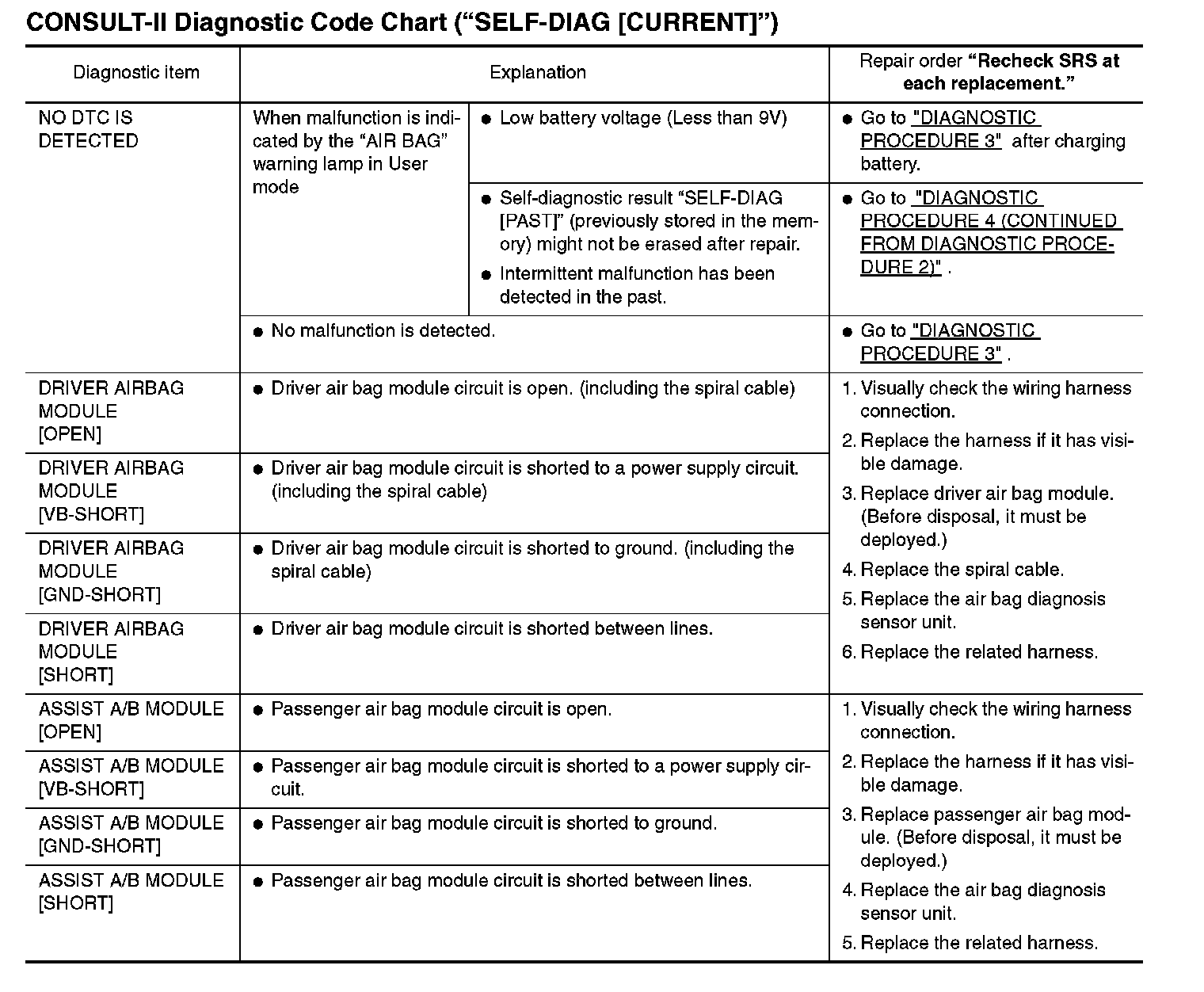

CONSULT-II Diagnostic Code Chart ("SELF-DIAG [CURRENT]") Part 1:

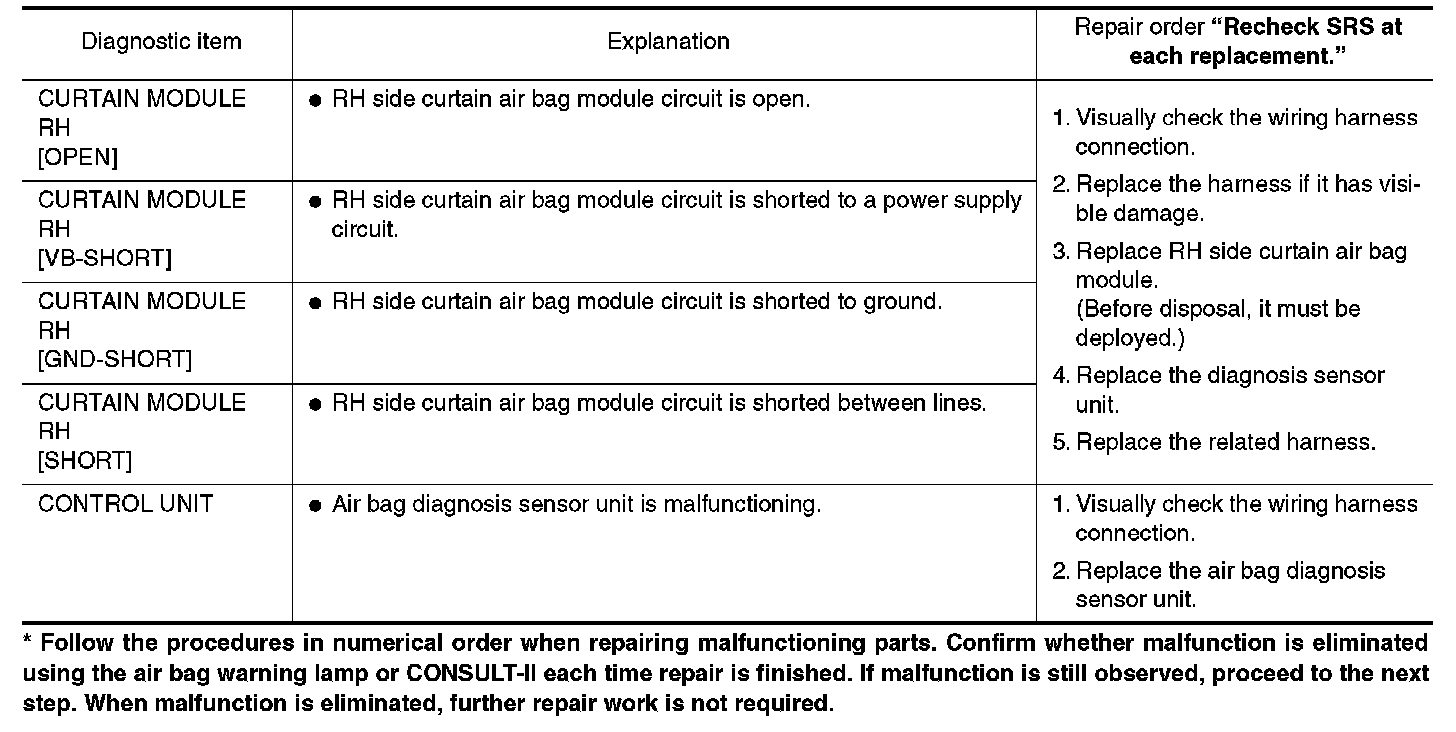

CONSULT-II Diagnostic Code Chart ("SELF-DIAG [CURRENT]") Part 2:

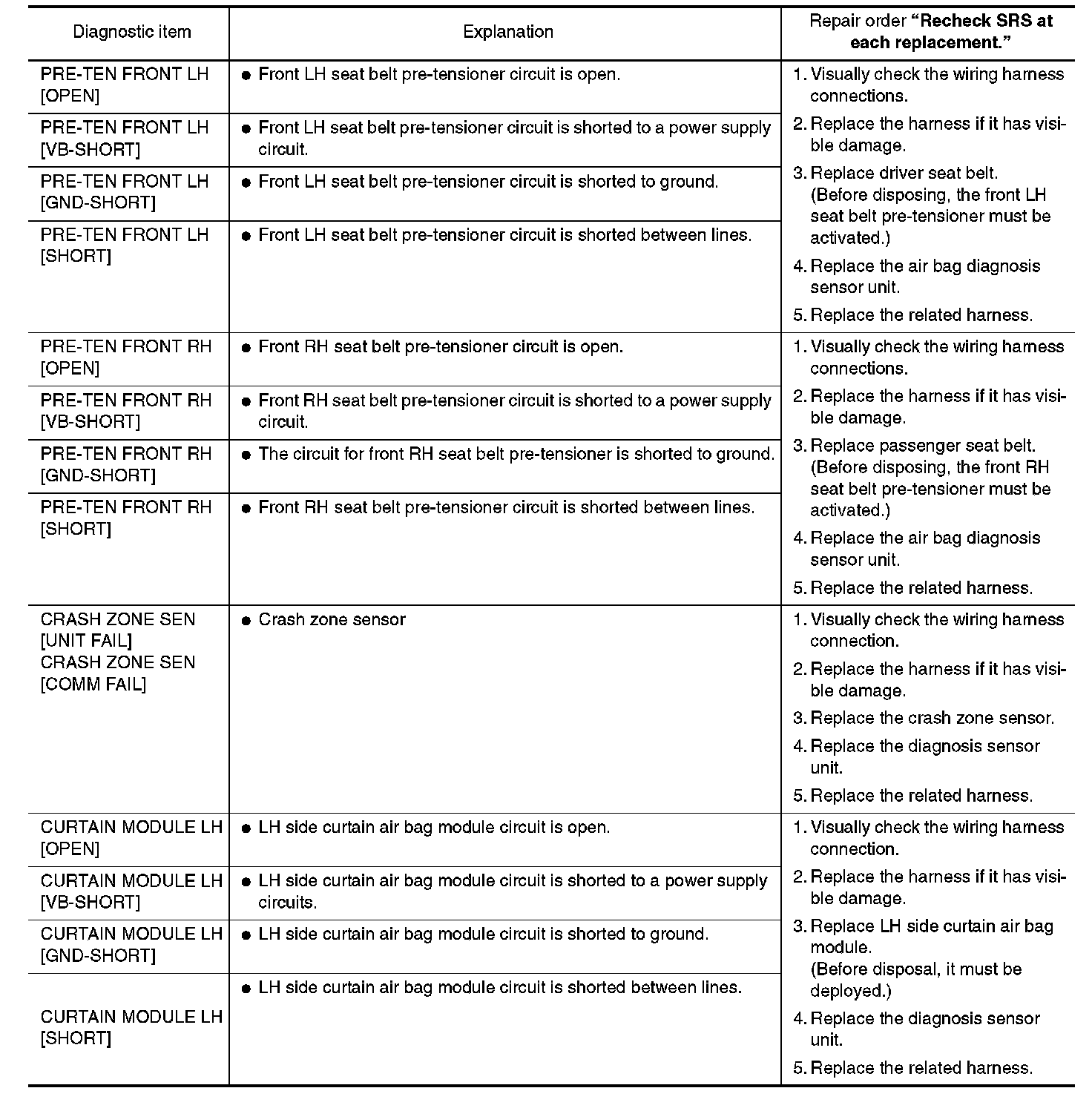

CONSULT-II Diagnostic Code Chart ("SELF-DIAG [CURRENT]") Part 3:
