P0122
DTC P0122 TP SENSORComponent Description
NOTE: If DTC P0122, P0123 is displayed with DTC P0510, first perform the trouble diagnosis for DTC P0510. P0510

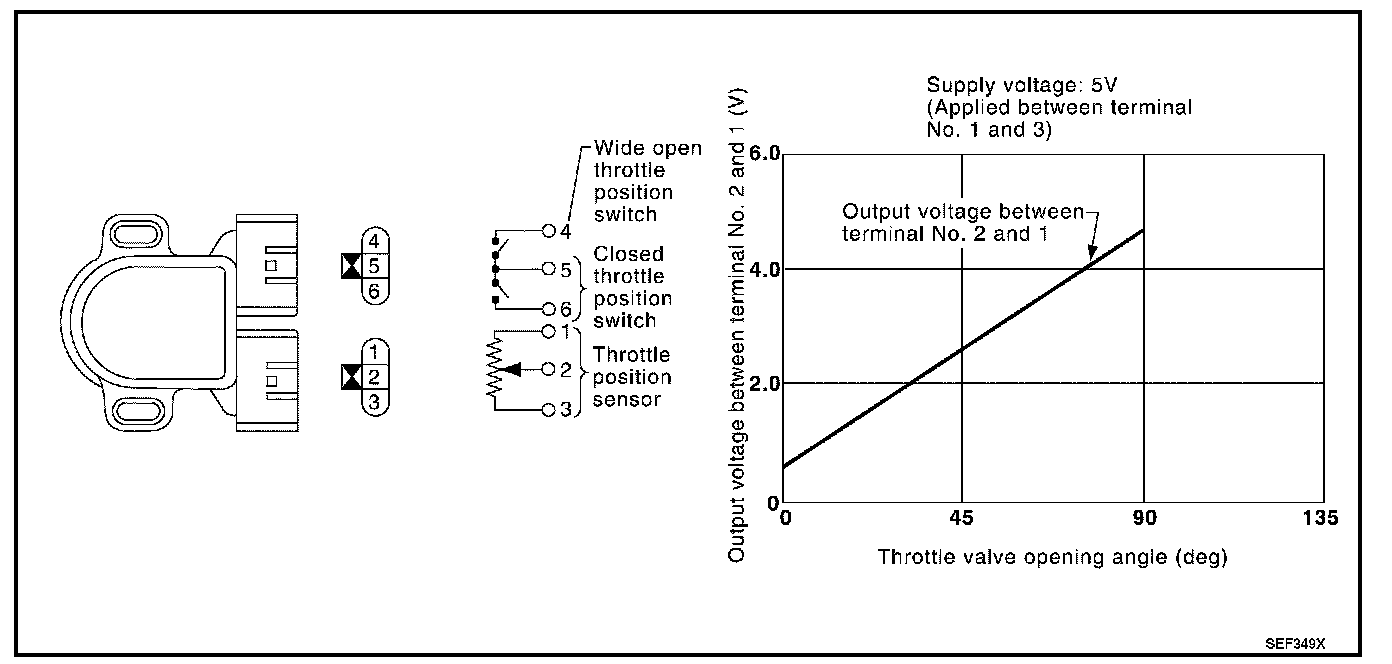

The throttle position sensor responds to the accelerator pedal movement. This sensor is a kind of potentiometer which transforms the throttle position into output voltage, and emits the voltage signal to the ECM. In addition, the sensor detects the opening and closing speed of the throttle valve and feeds the voltage signal to the ECM.
Idle position of the throttle valve is determined by the ECM receiving the signal from the throttle position sensor. This sensor controls engine operation such as fuel cut. On the other hand, the "Wide open and closed throttle position switch", which is built into the throttle position sensor unit, is not used for engine control.

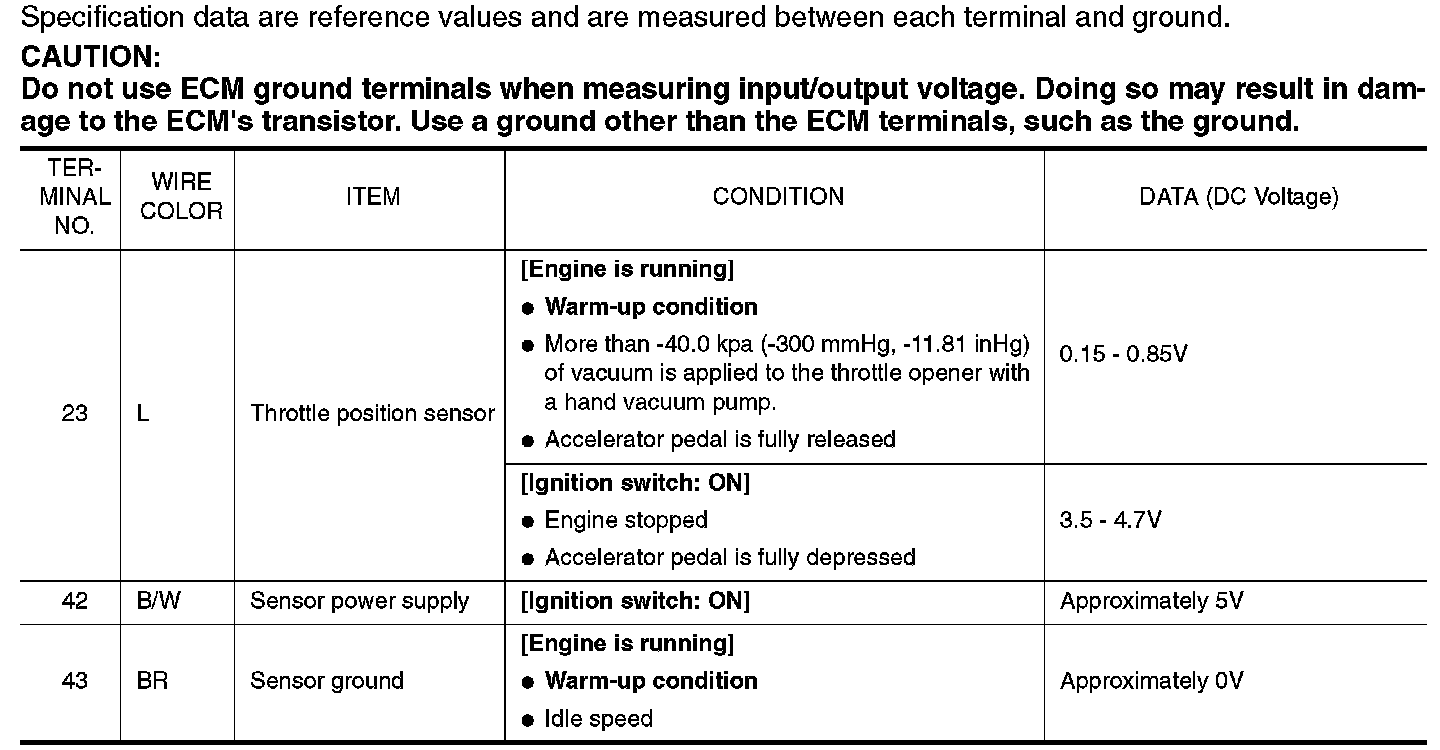

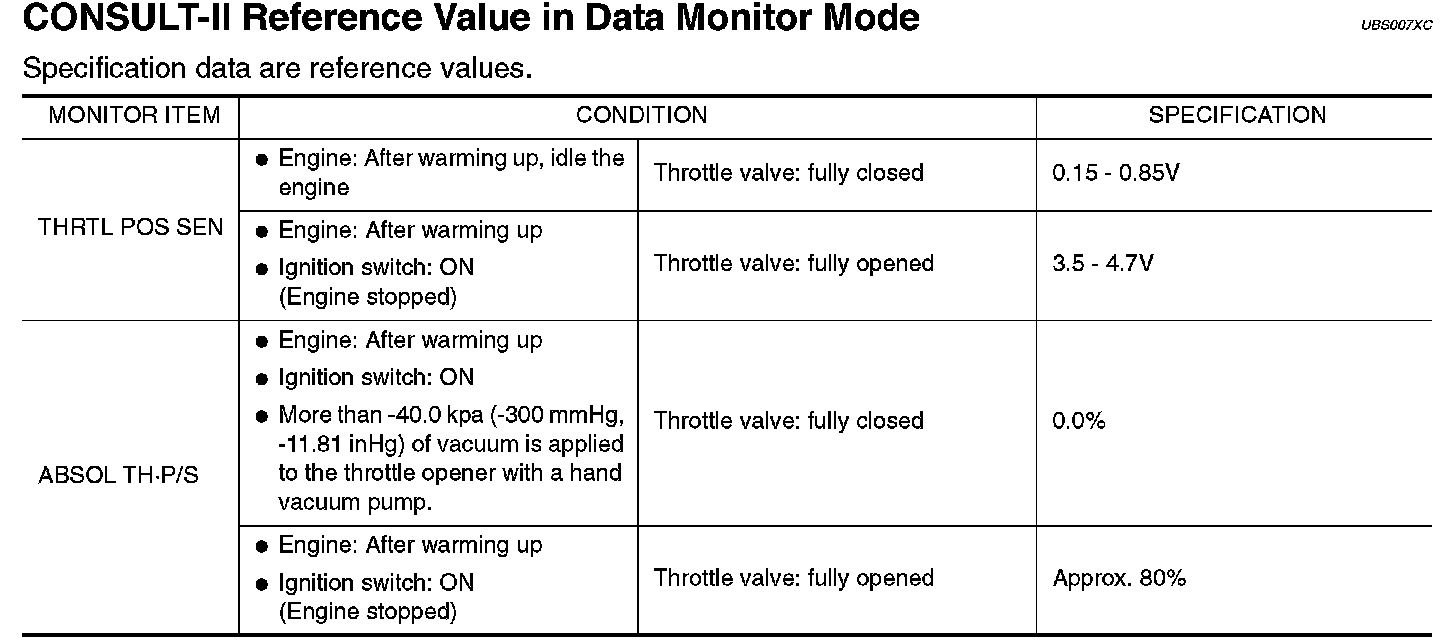

CONSULT-II Reference Value In Data Monitor Mode:
CONSULT-II Reference Value in Data Monitor Mode

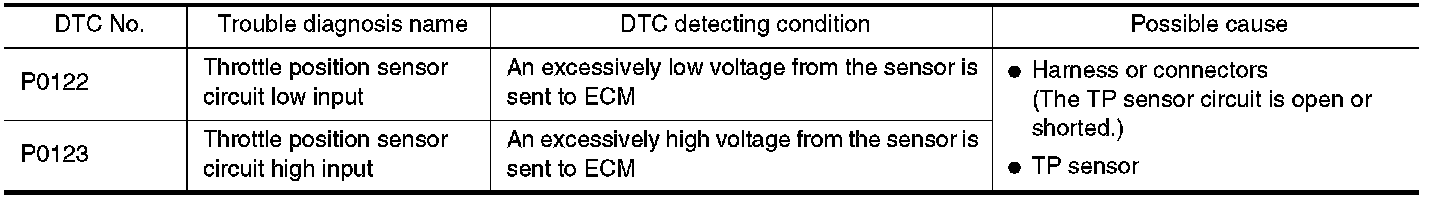

On Board Diagnosis Logic
On Board Diagnosis Logic:
These self-diagnosis have one trip detection logic.

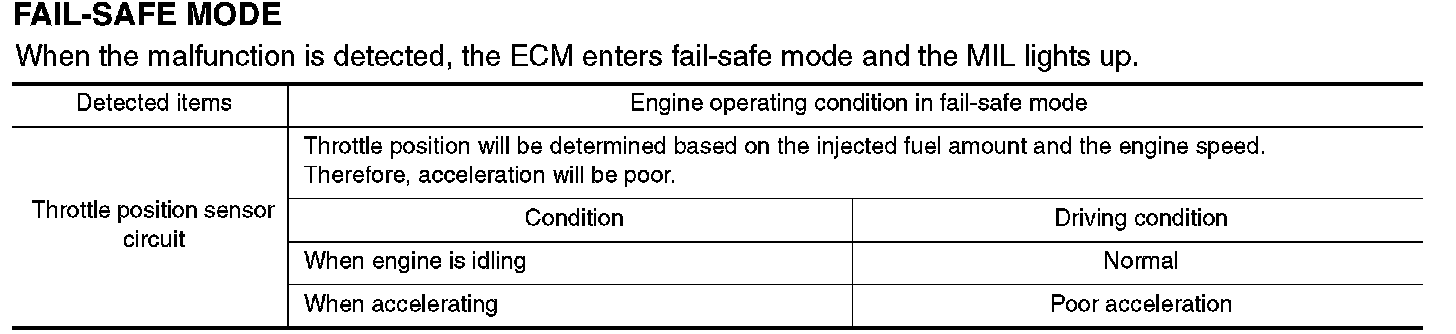

Fail-Safe Mode:
FAIL-SAFE MODE
DTC Confirmation Procedure
NOTE: If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at least 5 seconds before conducting the next test.
CAUTION: Always drive vehicle at a safe speed.

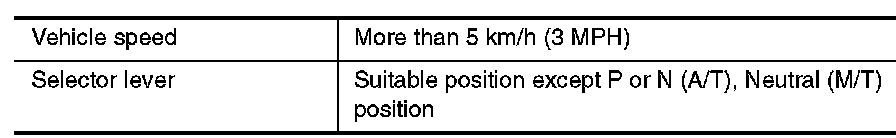

TESTING CONDITION:
- Before performing the following procedure, confirm that battery voltage is more than 10 V at idle.
- This test may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a road test is expected to be easier, it is unnecessary to lift the vehicle.
WITH CONSULT-II

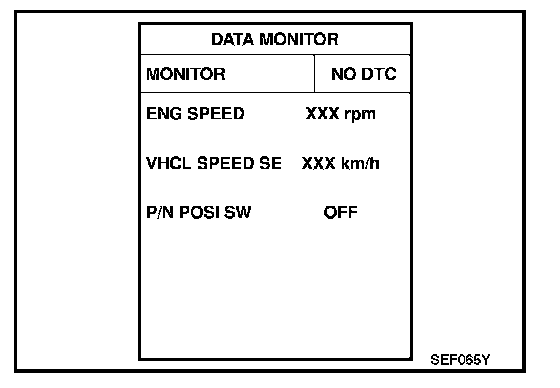

1. Turn ignition switch ON and select "DATA MONITOR" mode with CONSULT-II.
2. Start engine and maintain the given conditions for at least 5 consecutive seconds.
3. If DTC is detected, Go to "Diagnostic Procedure" below.
WITH GST
Follow the procedure "WITH CONSULT-II".
EC-TPS-01:

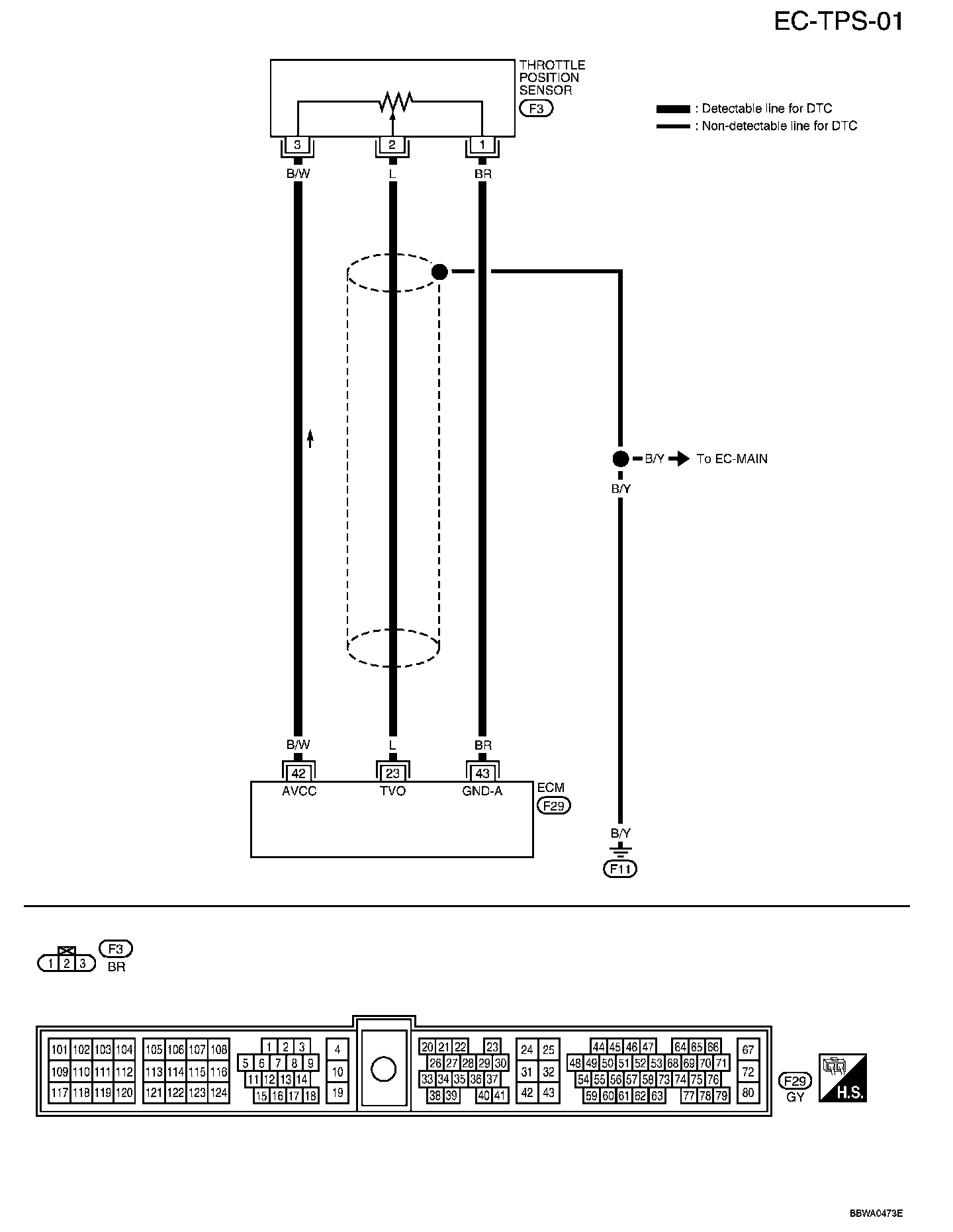

Wiring Diagram
Diagnostic Procedure
Diagnostic Procedure (Step 1):
Diagnostic Procedure (Steps 2 - 5):
