Vehicle Security Headlamp Alarm Check

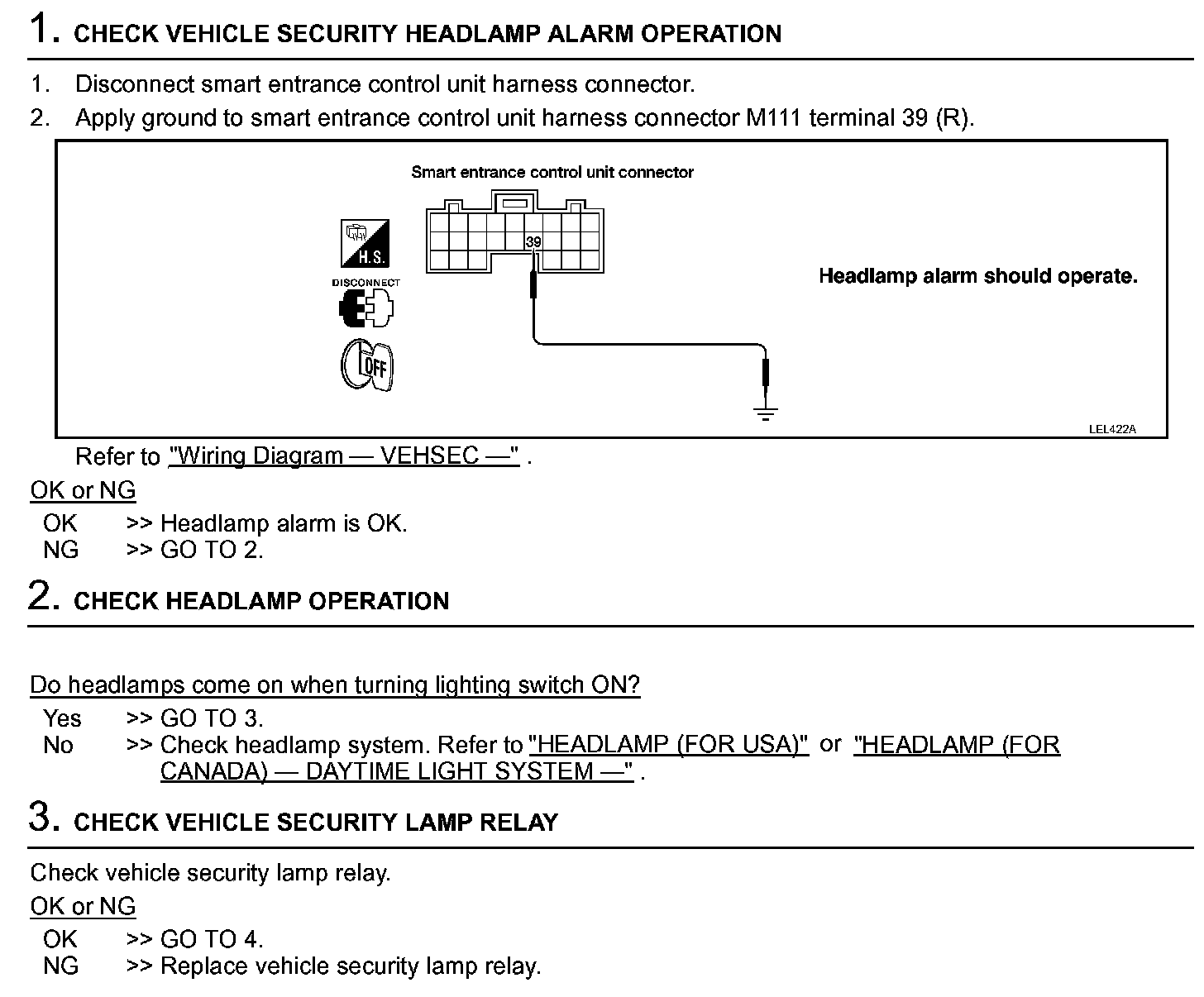

Diagnostic Procedure Step 1 - 3:

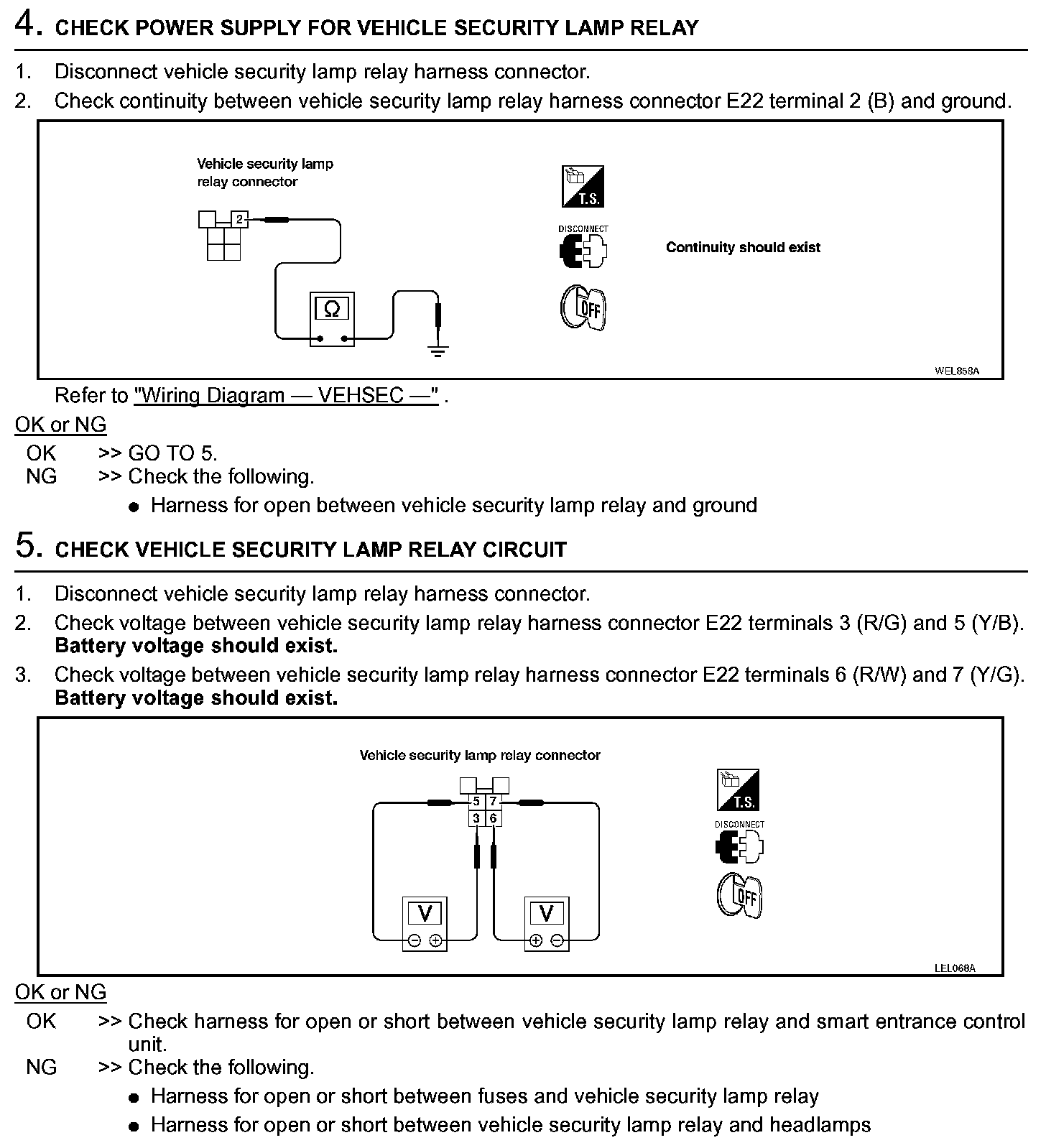

Diagnostic Procedure Step 4 - 5:
