Removal and Replacement

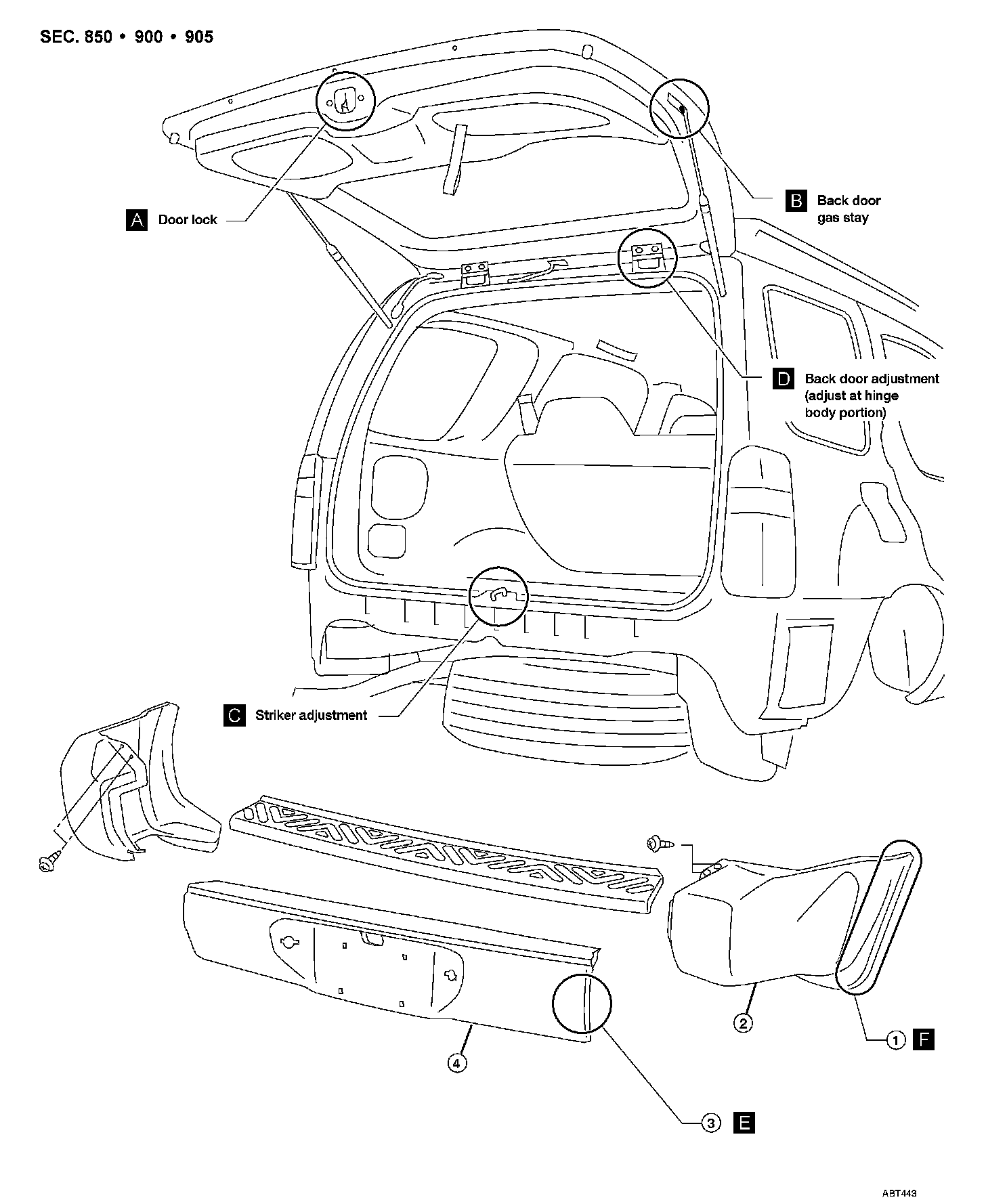

Exploded View EI-16 (Part 1):

Exploded View EI-16 (Part 2):

BODY REAR END AND OPENER

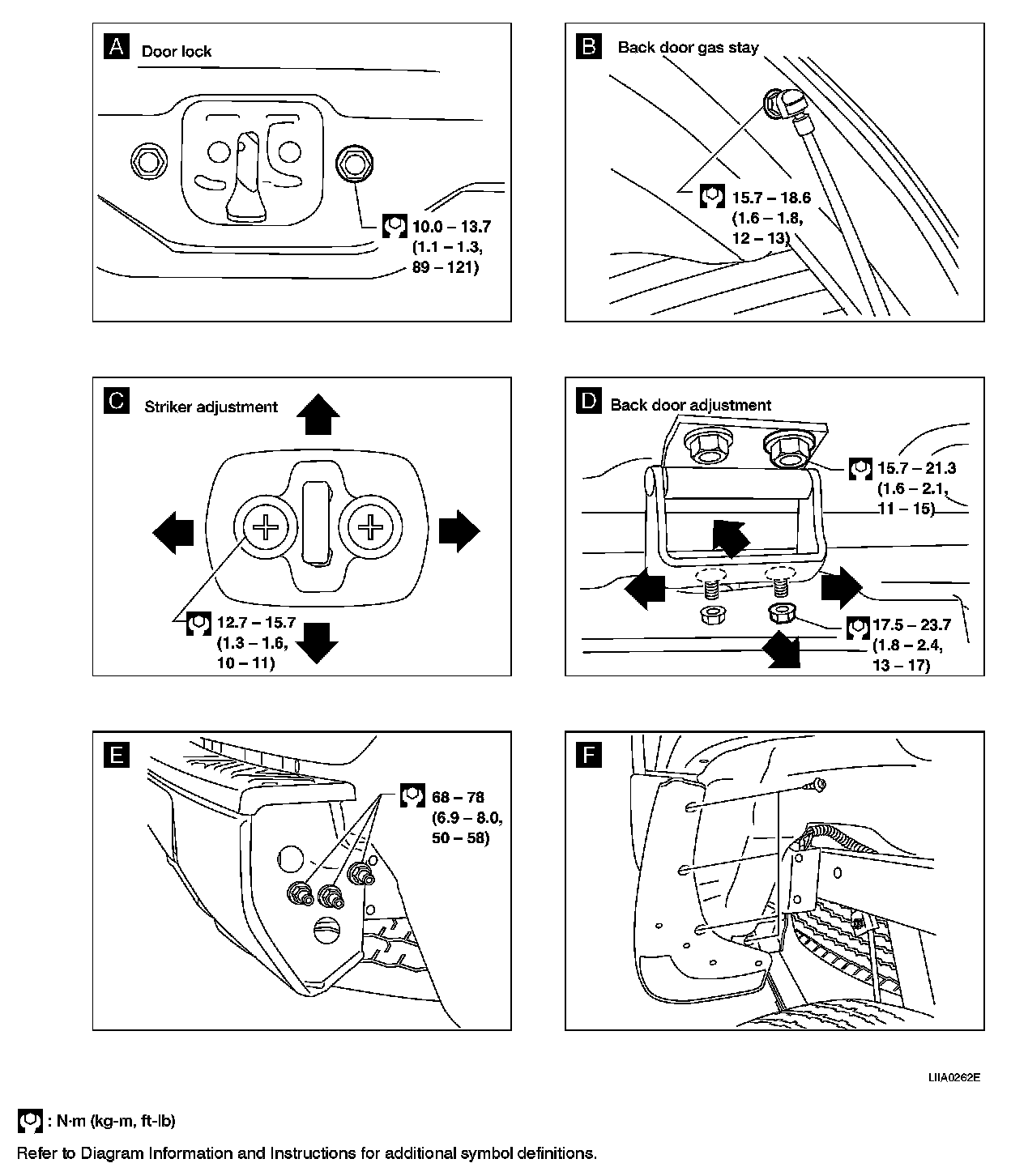

Removal and Installation
- Bumper fascia is made of plastic. Do not use excessive force and be sure to keep oil away from it.
- Back door lock system adjustment: Adjust lock and striker so that they are in the center. After adjustment, check back door lock operation.

REAR BUMPER ASSEMBLY
1. Remove screws securing left and right bumper side. F
2. Remove bumper side left and right.
3. Remove nuts securing rear bumper. E
4. Remove rear bumper.
