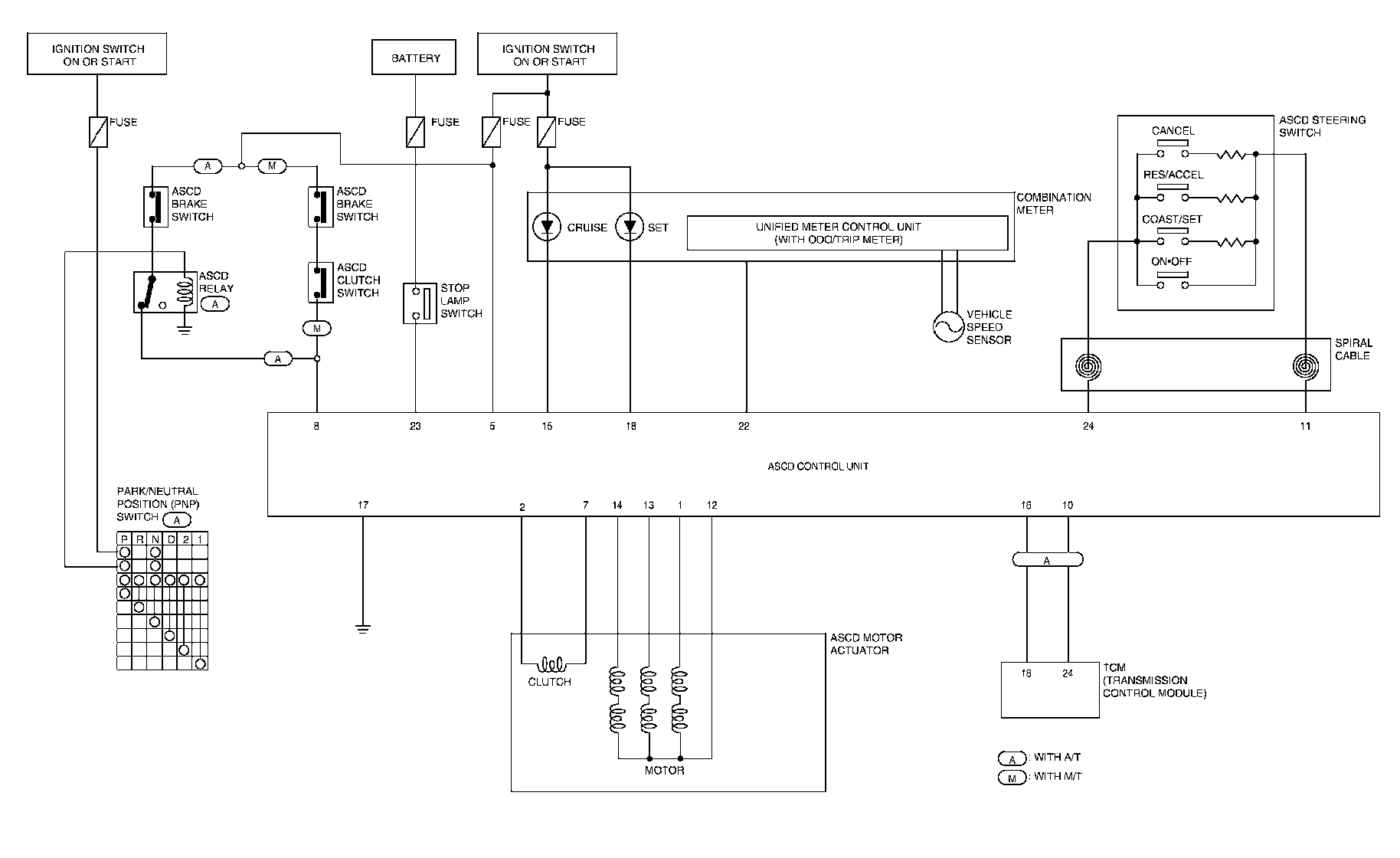

Automatic Speed Control Device (ASCD) Circuit Schematic
Automatic Speed Control Device (ASCD) Circuit Schematic
Automatic Speed Control Device (ASCD) Circuit Schematic:
