Antilock Brakes / Traction Control Systems
>>
BRC-ABS
BRC-ABS
BRC-ABS-O1:

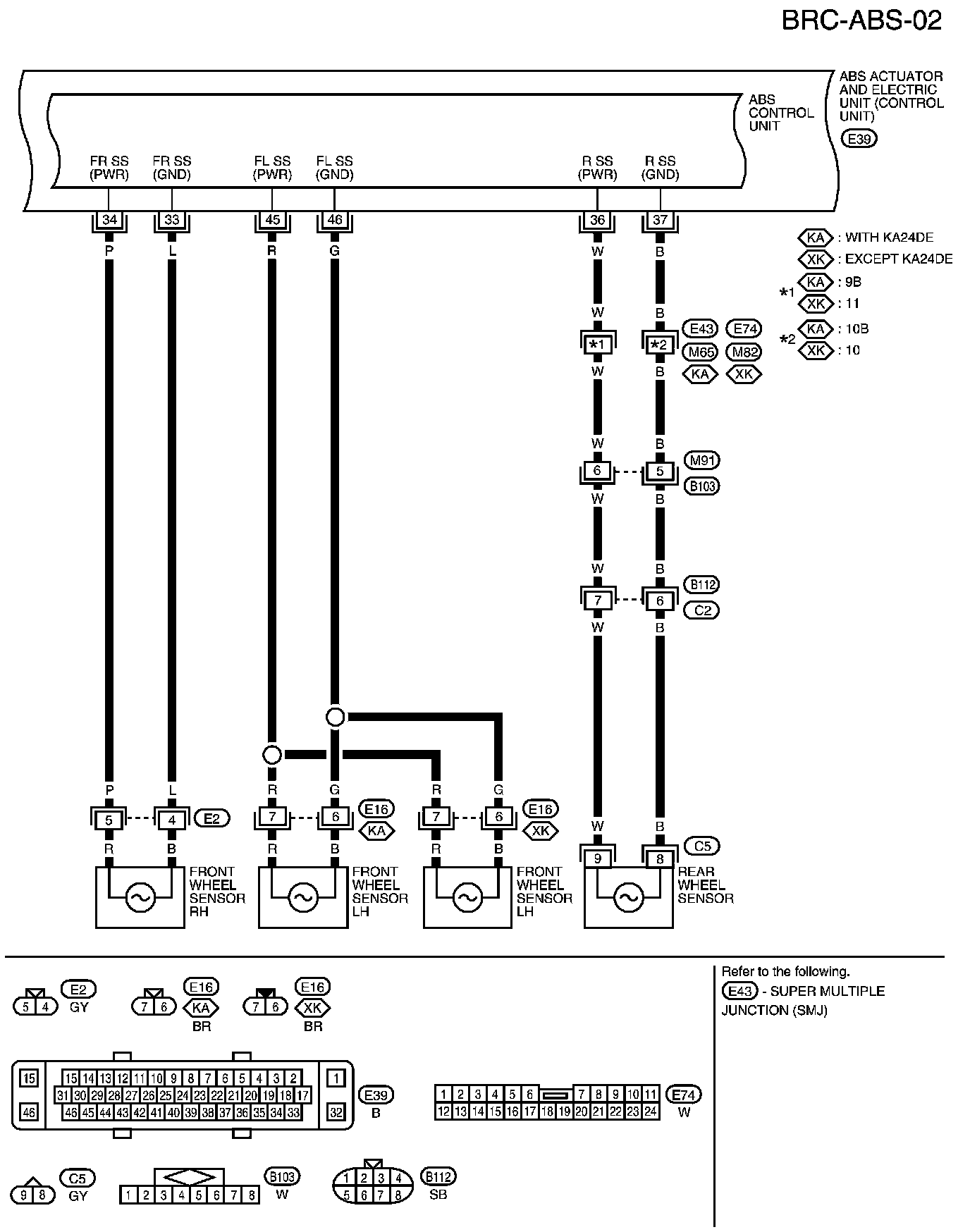

BRC-ABS-O2:

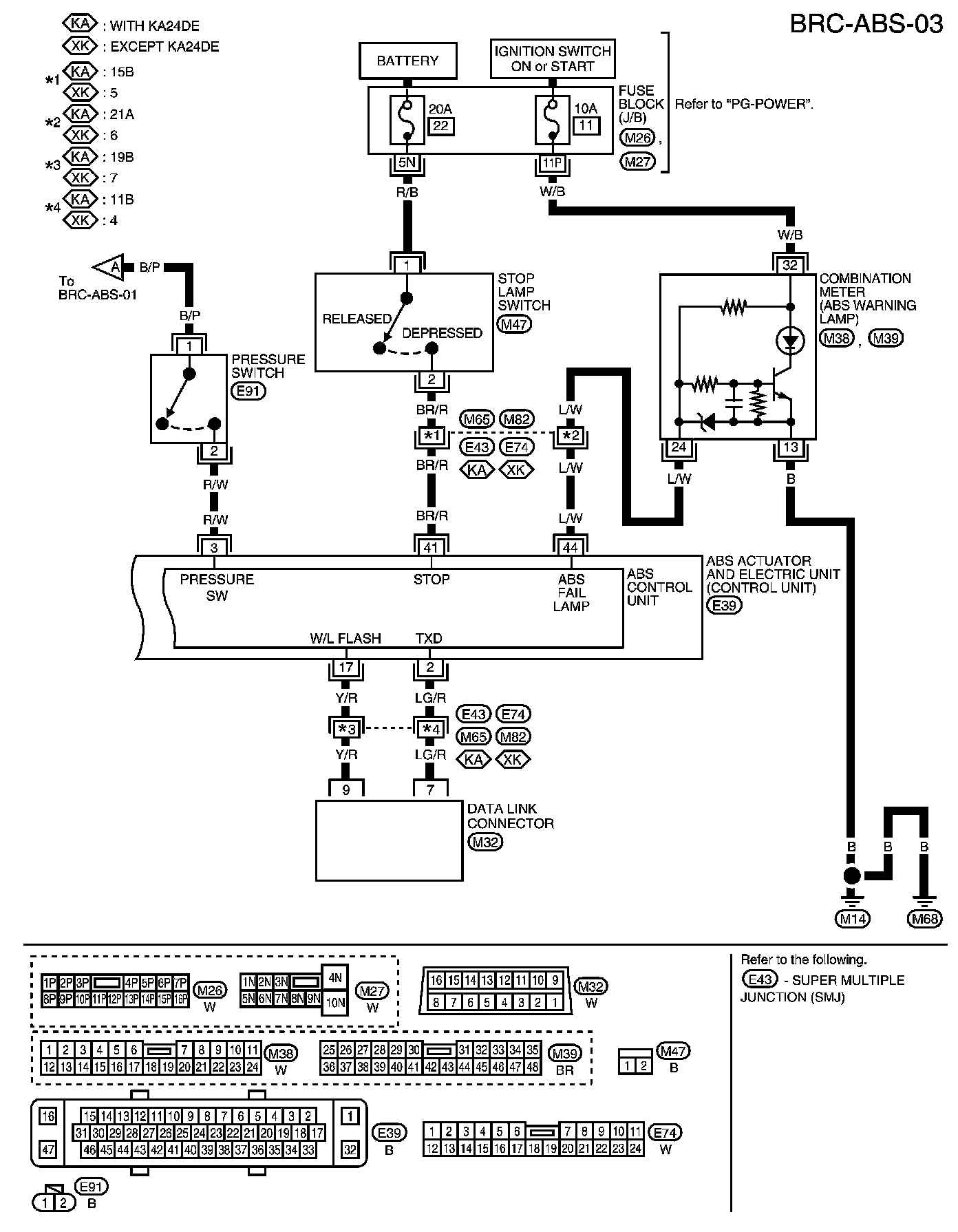

BRC-ABS-O3:
Diagrams
: Other diagrams referred to by name within these diagrams can be found at
Diagrams by Diagram Name
.
Diagrams By Diagram Name
