ASC Diagrams (Auto Speed Control System)
ASC Diagrams (Auto Speed Control System)

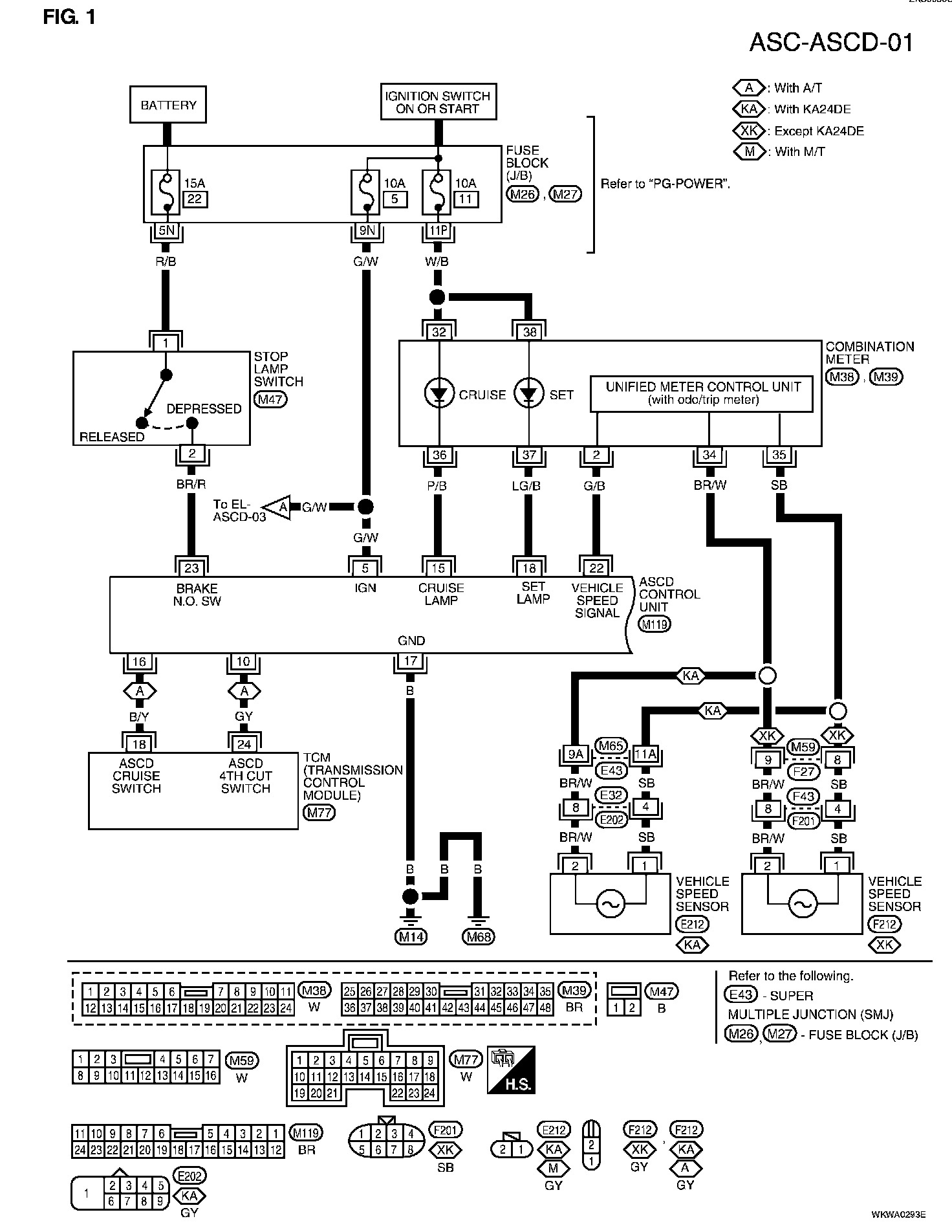

ASC-ASCD-01:

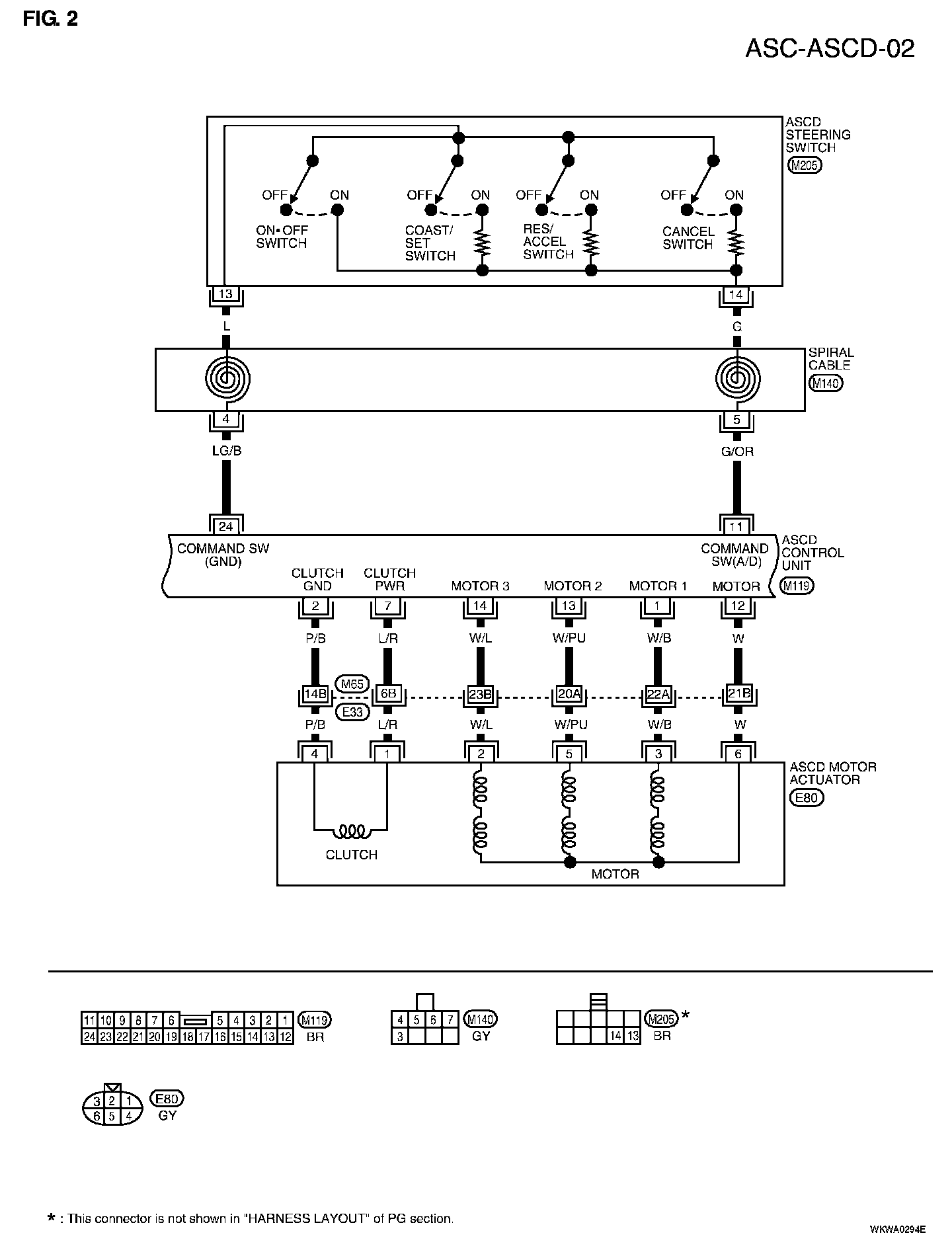

ASC-ASCD-02:
ASC-ASCD-03:
