Operation CHARM
: Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2004
>>
Xterra 2WD V6-3.3L (VG33E)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Diagram Name
>>
AT Diagrams (Automatic Transmission)
>>
AT-BA/FTS
AT-BA/FTS

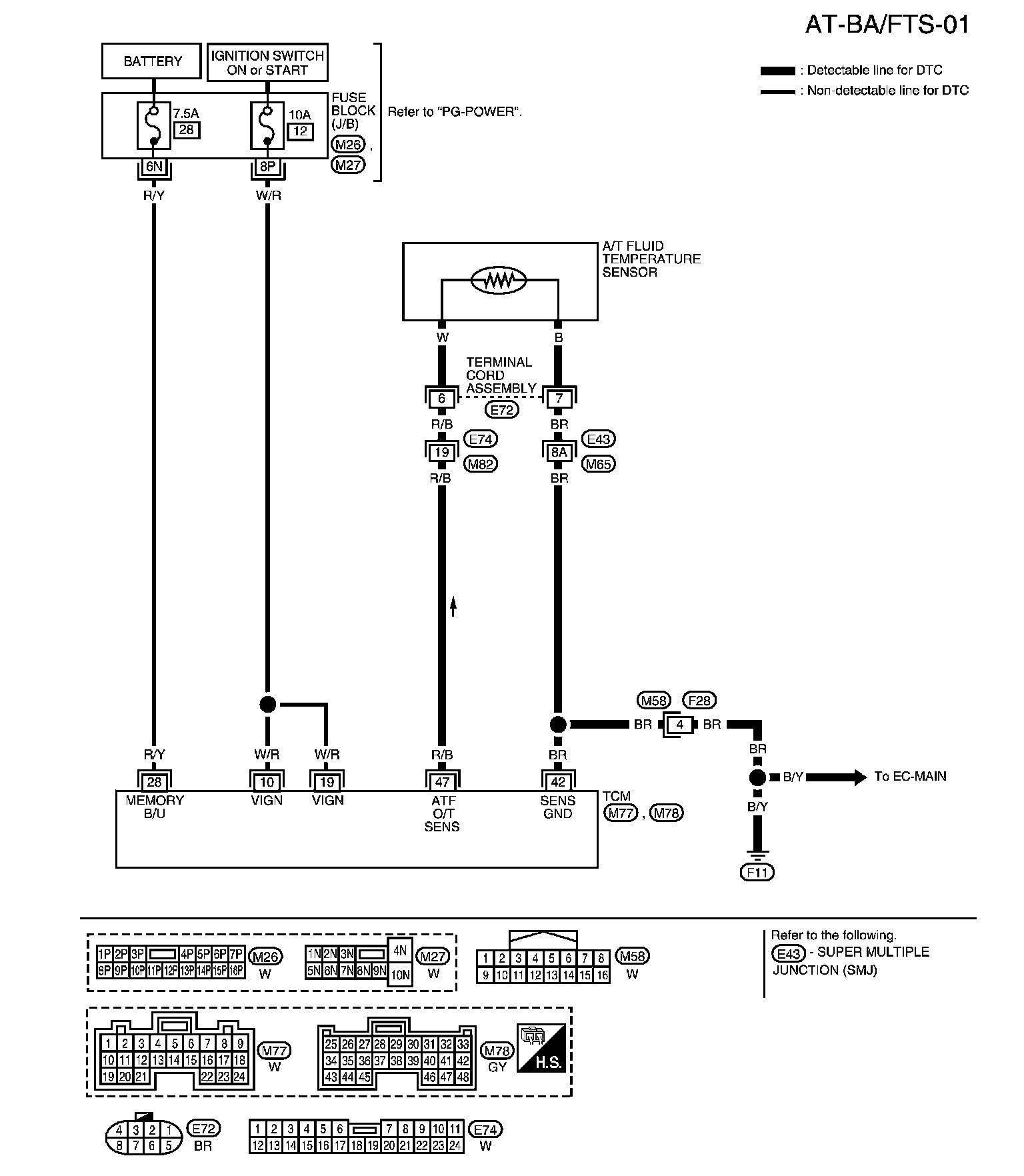

AT-BA/FTS-01:
