Clutch, M/T
>>
Clutch Hydraulic System
>>
System Diagram
>>
Operating Cylinder
Operating Cylinder

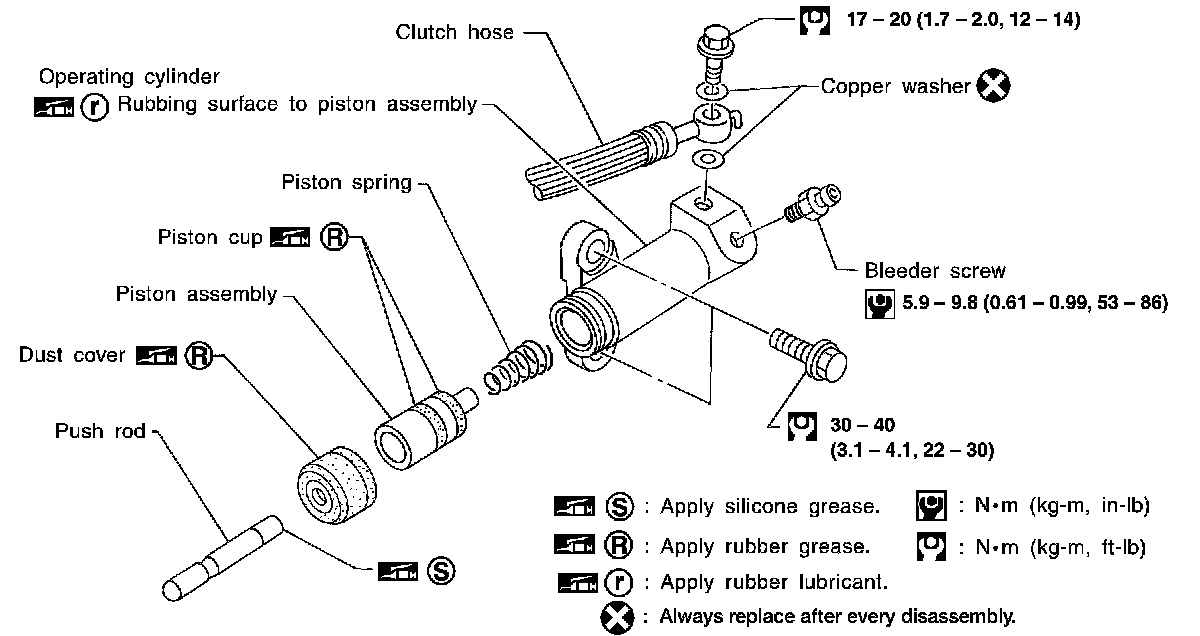

OPERATING CYLINDER:
