Drum Brake System
Drum Brake System

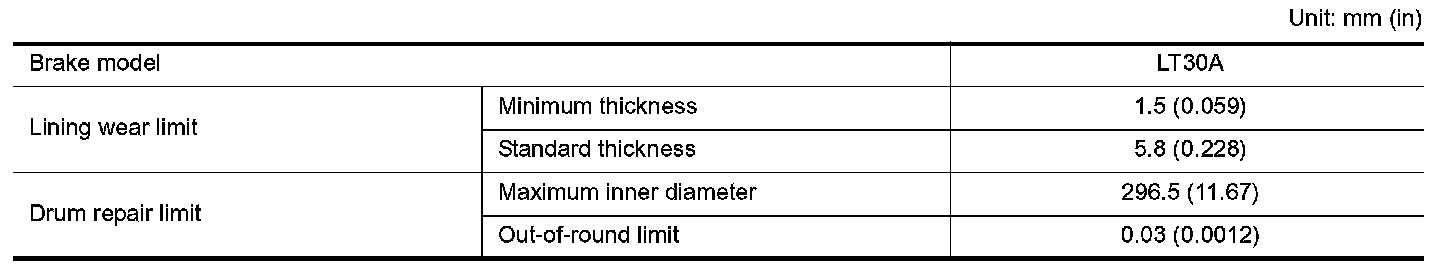

REAR DRUM BRAKE:

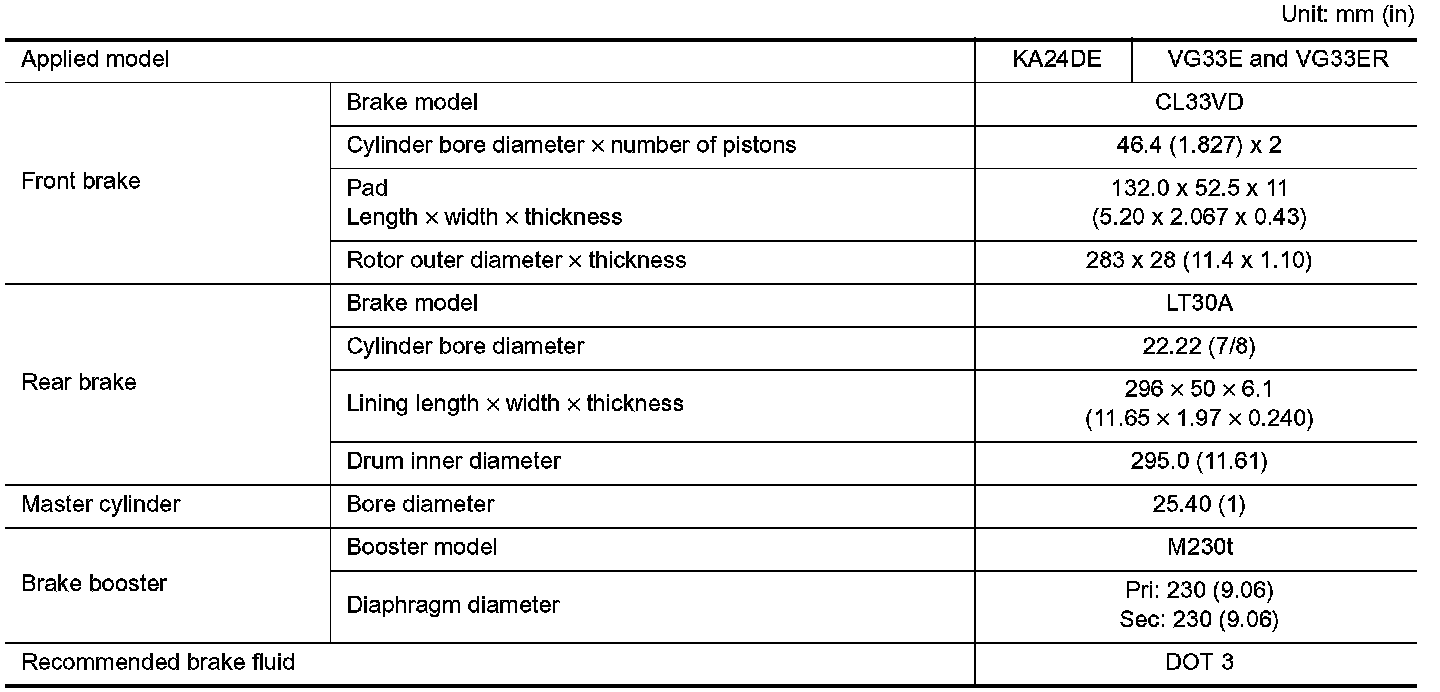

BRAKES / GENERAL SPECIFICATIONS:
REAR DRUM BRAKE:
