Suspension
>>
System Diagram
>>
Front
Front

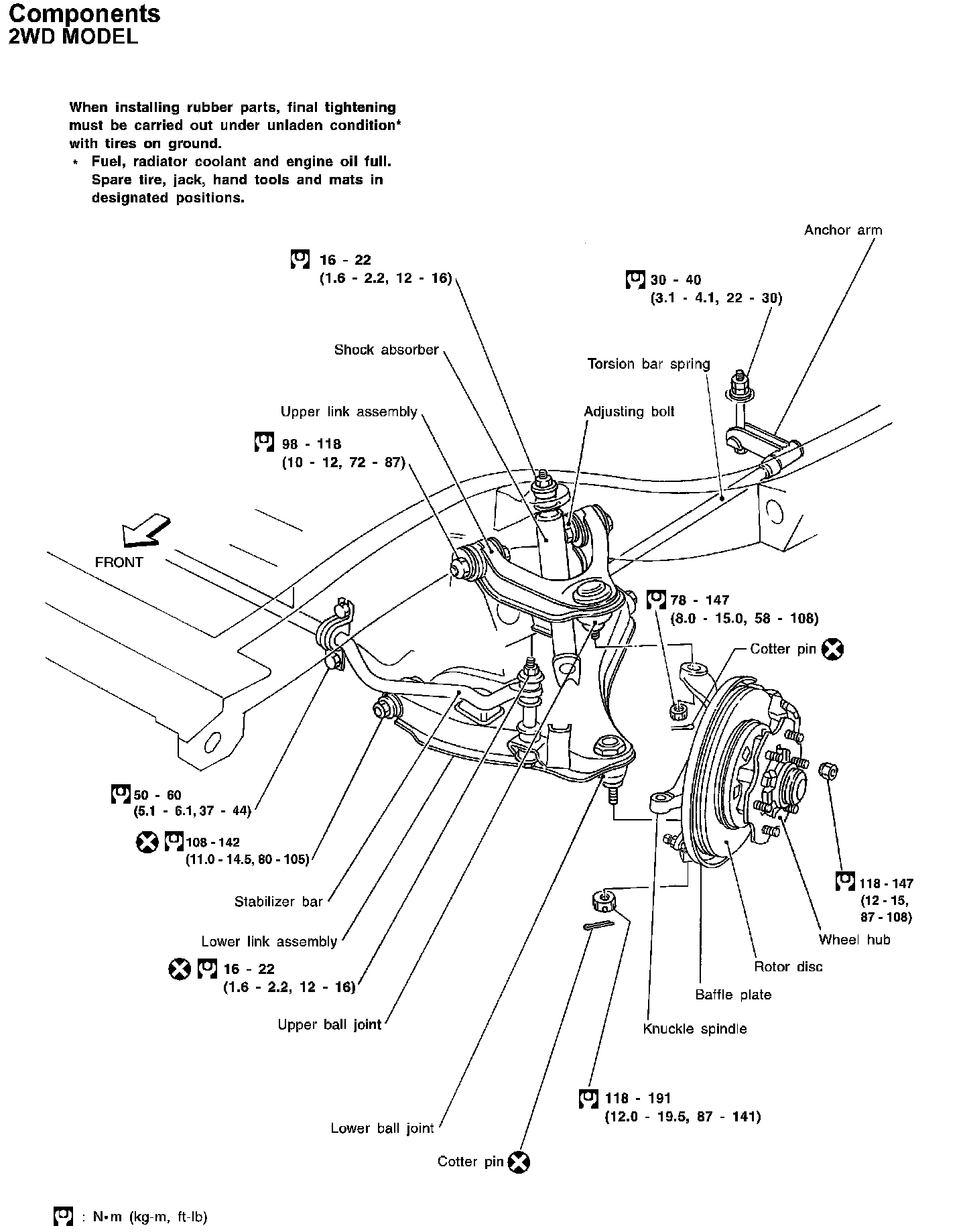

FRONT SUSPENSION ASSEMBLY (2WD):

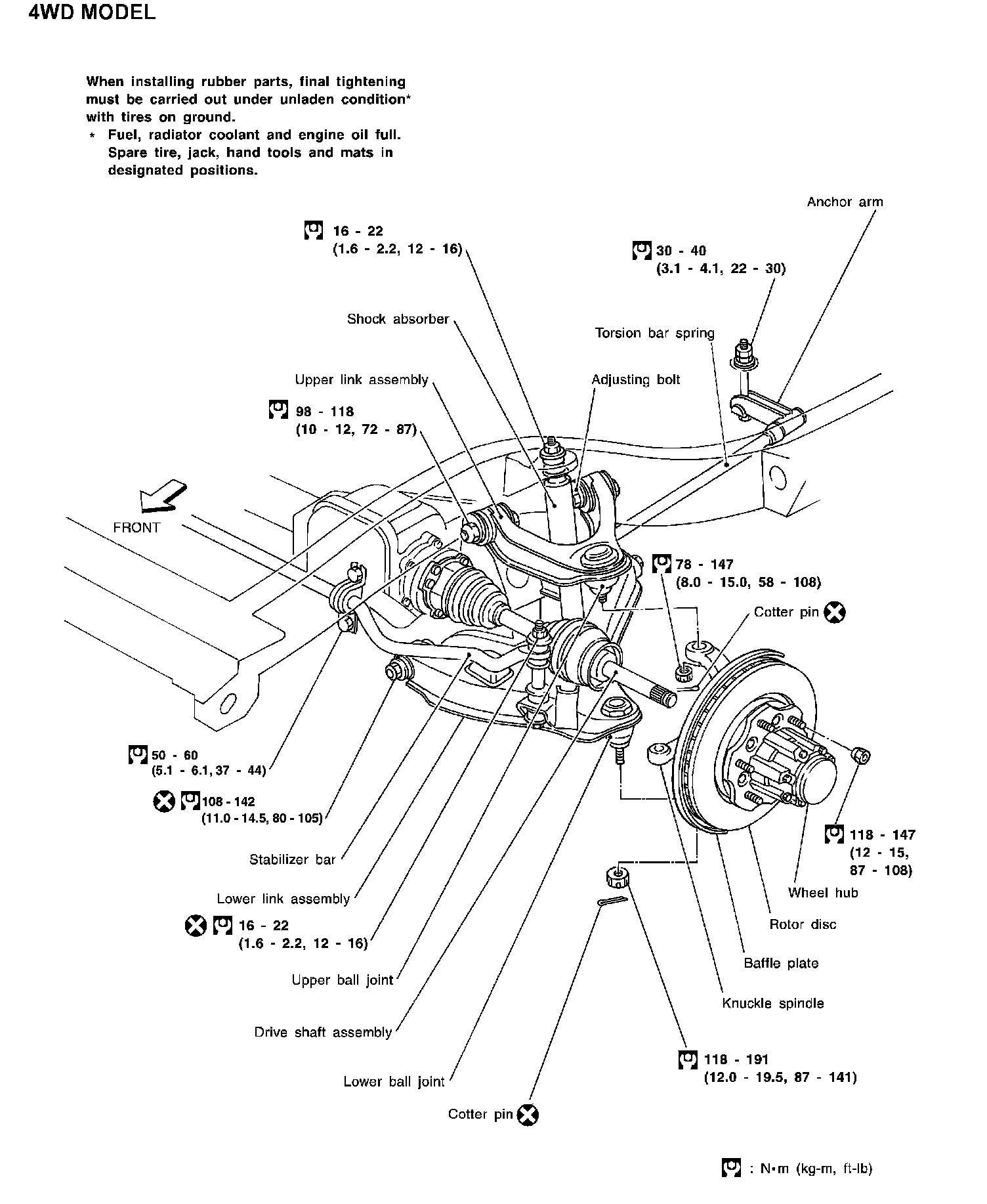

FRONT SUSPENSION ASSEMBLY (4WD):

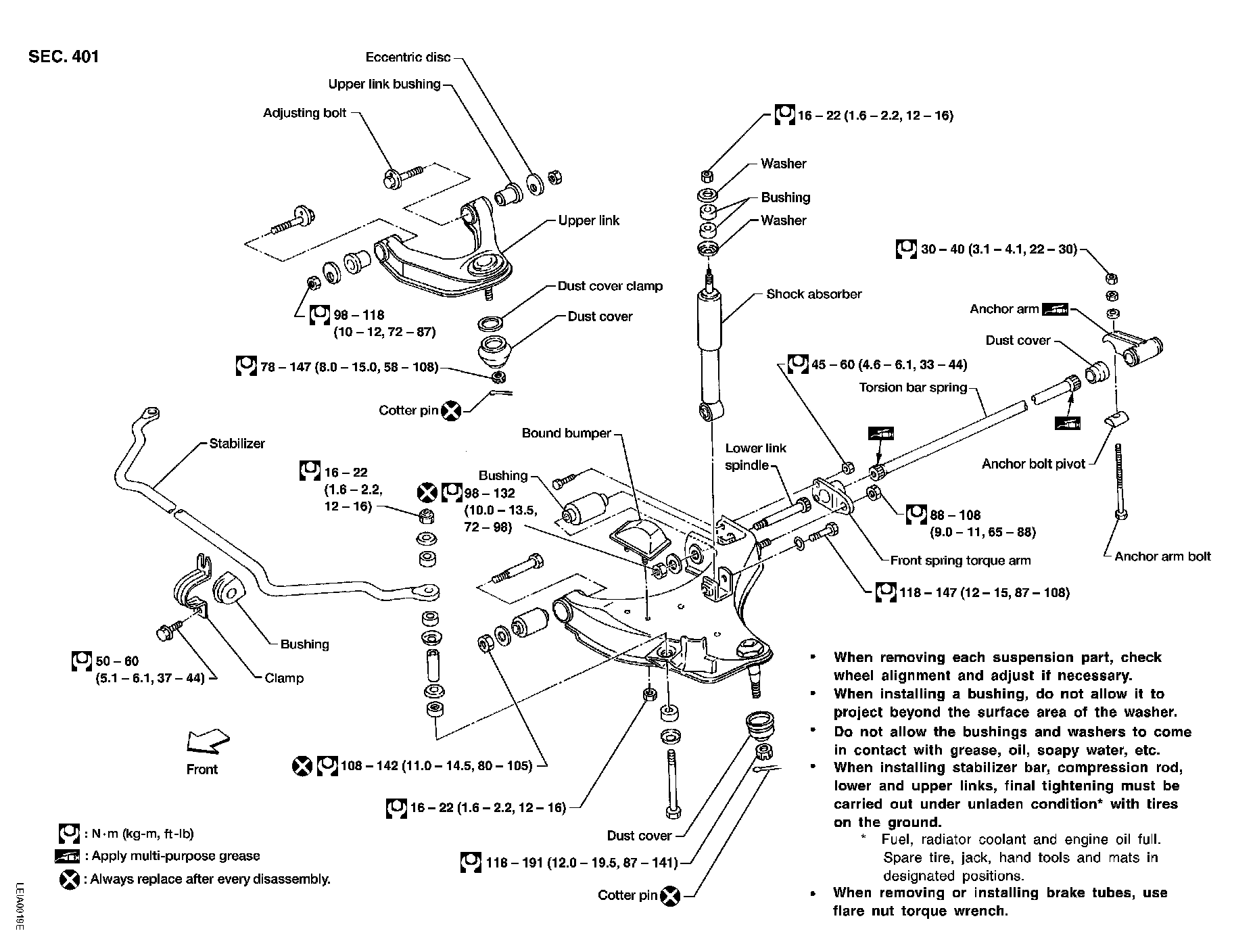

FRONT SUSPENSION:
