Blower Motor Circuit

Blower Motor

TROUBLE DIAGNOSIS PROCEDURE FOR BLOWER MOTOR

Symptom:
- Blower motor does not rotate.

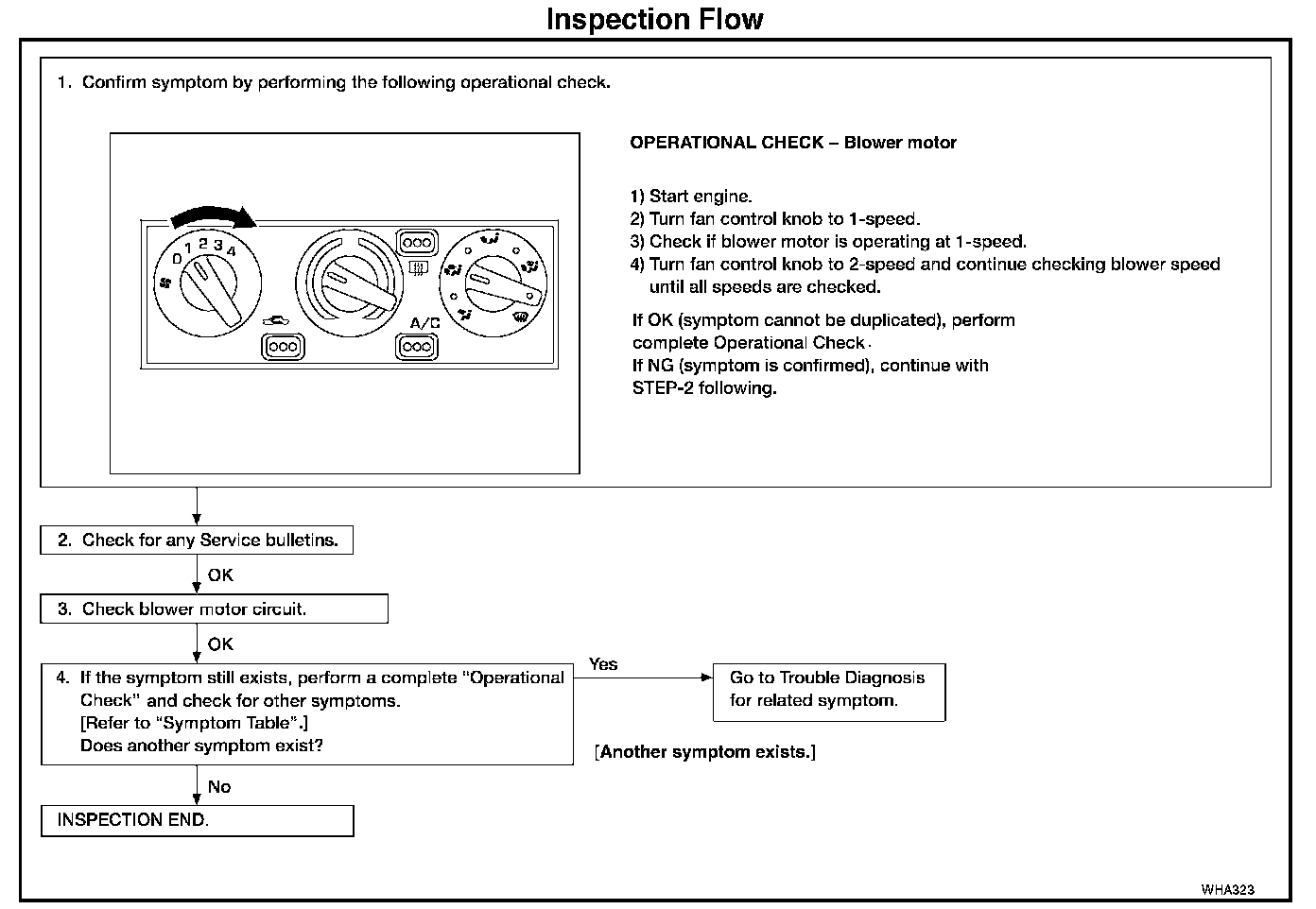

Inspection Flow

BLOWER MOTOR CIRCUIT

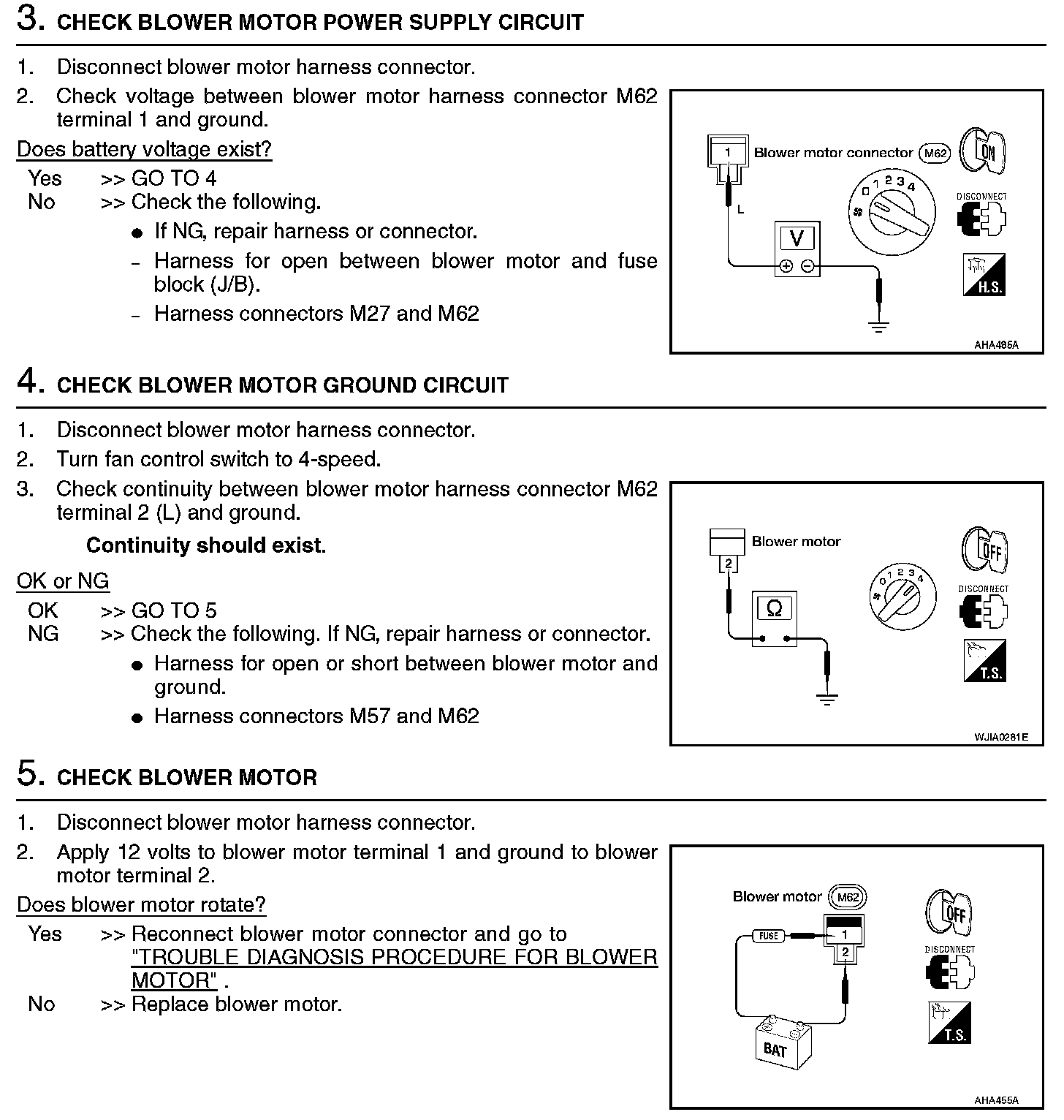

Blower Motor Circuit (Steps 1 - 2):

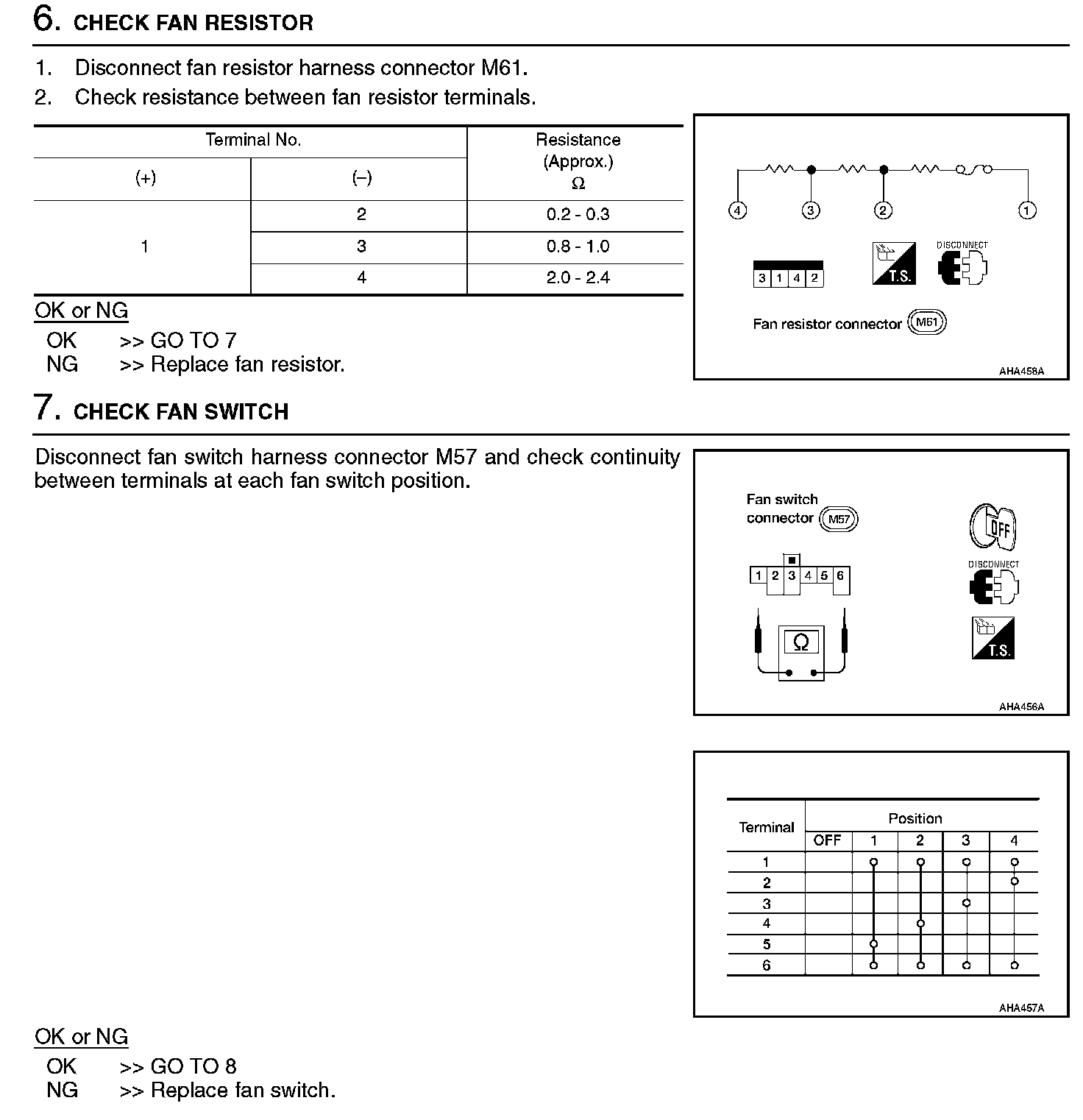

Blower Motor Circuit (Steps 6 - 7):

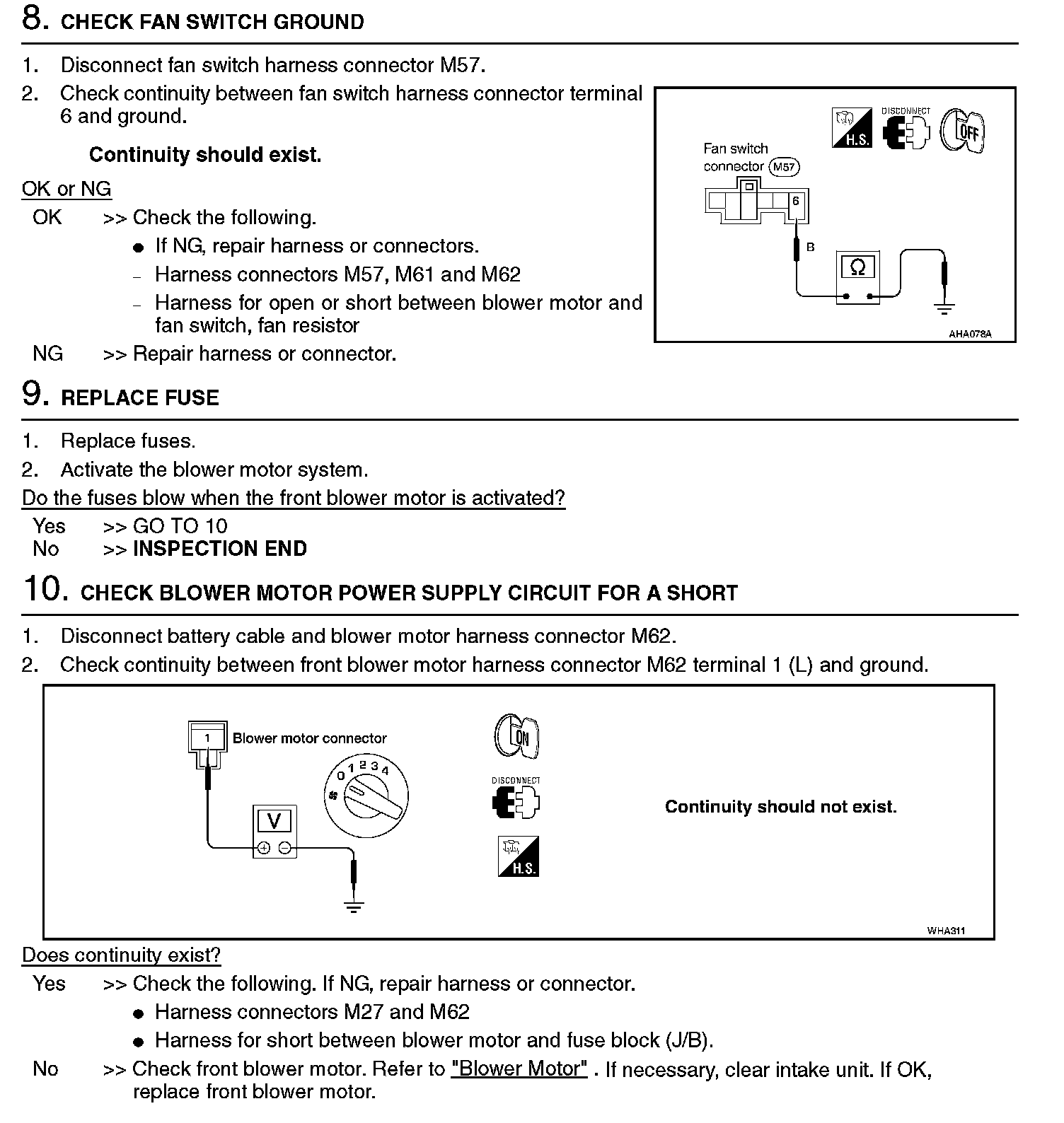

Blower Motor Circuit (Steps 8 - 10):

Magnet Clutch Circuit (Steps 8 - 10):

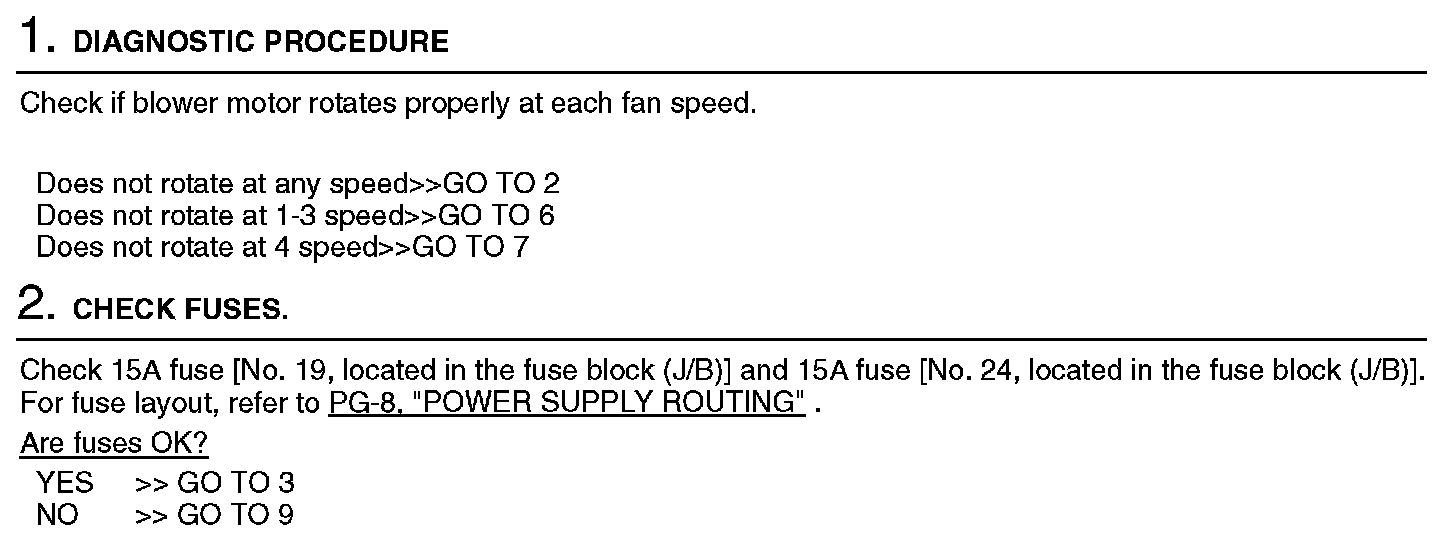

Diagnostic Procedure

Electrical Components Inspection

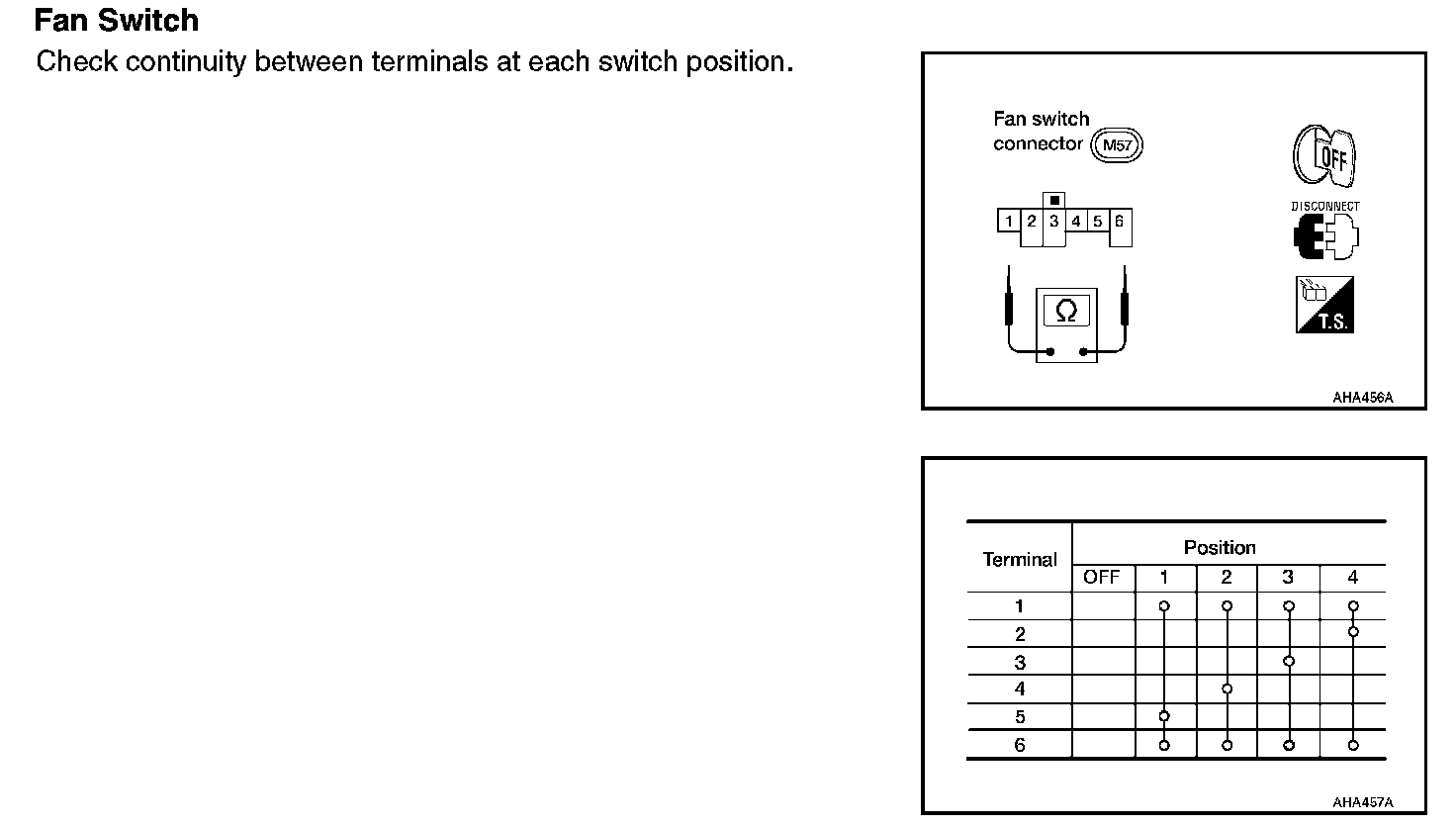

Fan Switch




Blower Motor
Confirm smooth rotation of the blower motor.
- Check that there are no foreign particles inside the intake unit.

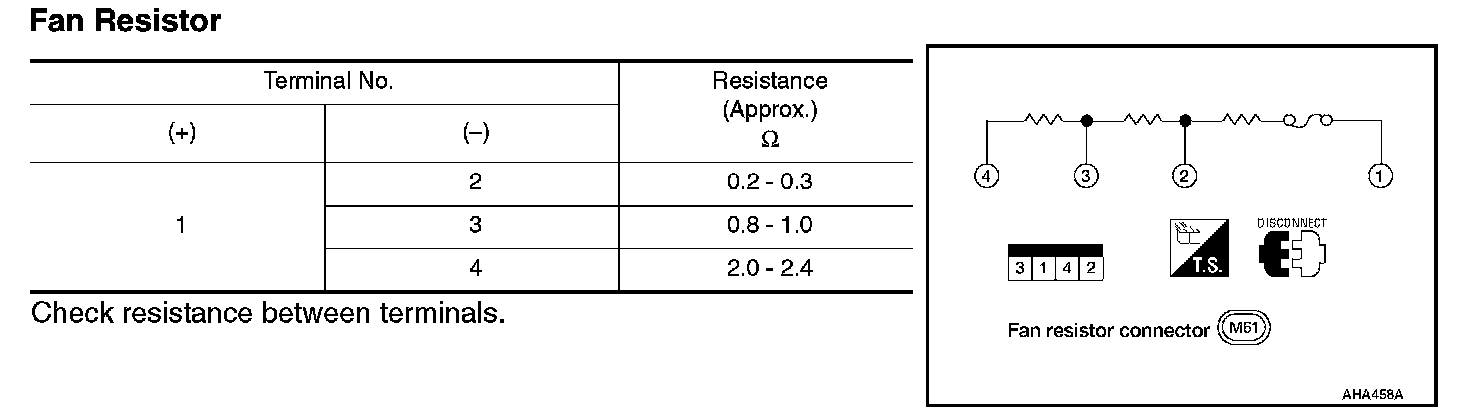

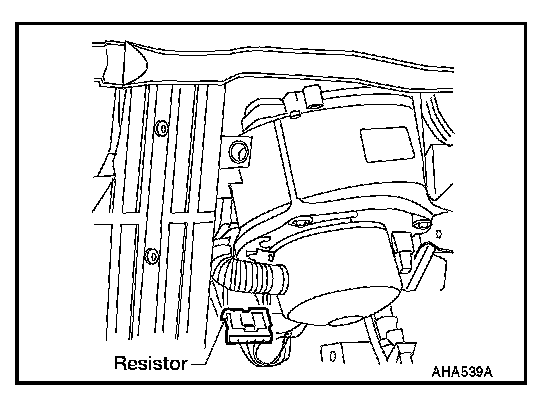

FAN RESISTOR
