Fog/Driving Lamp Bulb: Service and Repair

Bulb Replacement

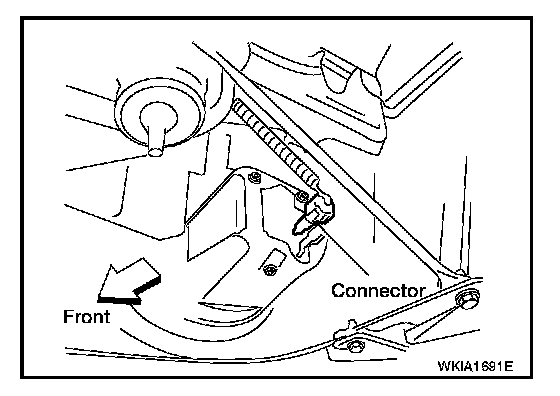

1. Disconnect fog lamp bulb connector.
2. Turn bulb counterclockwise and remove fog lamp bulb.
3. Install in reverse order of removal. DO NOT TOUCH BULB.
