Component Tests and General Diagnostics

POWER SUPPLY CIRCUIT FOR ECM

EC-MAIN-01:

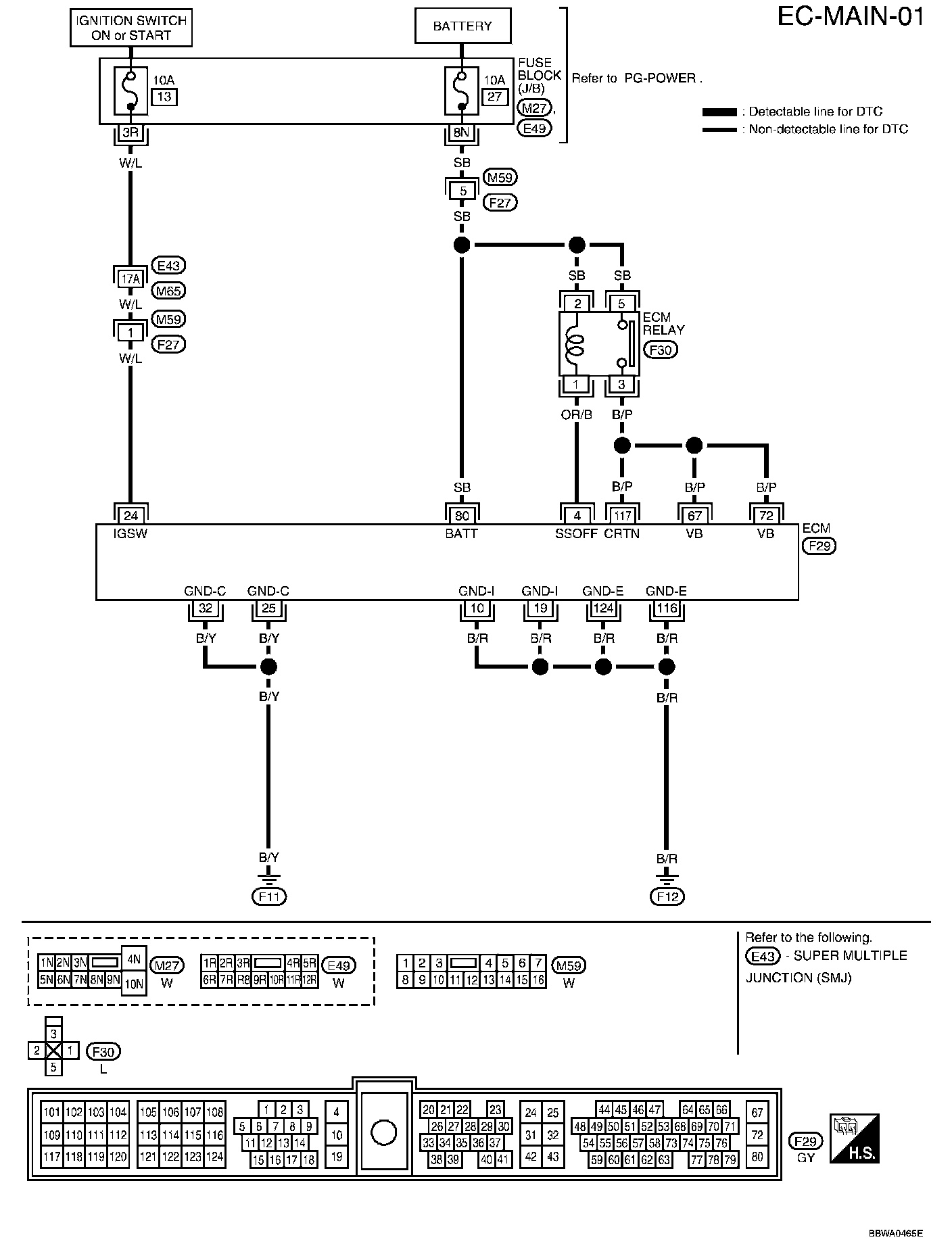

Wiring Diagram

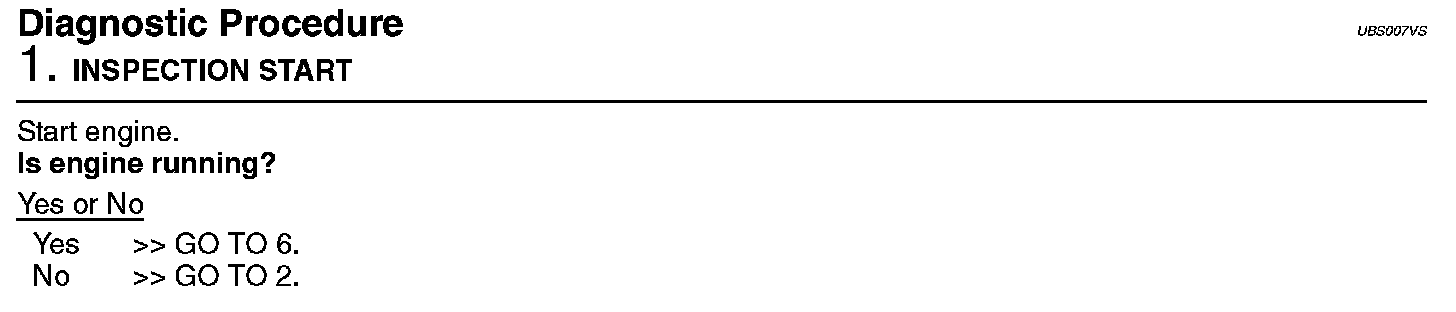

Diagnostic Procedure (Step 1):

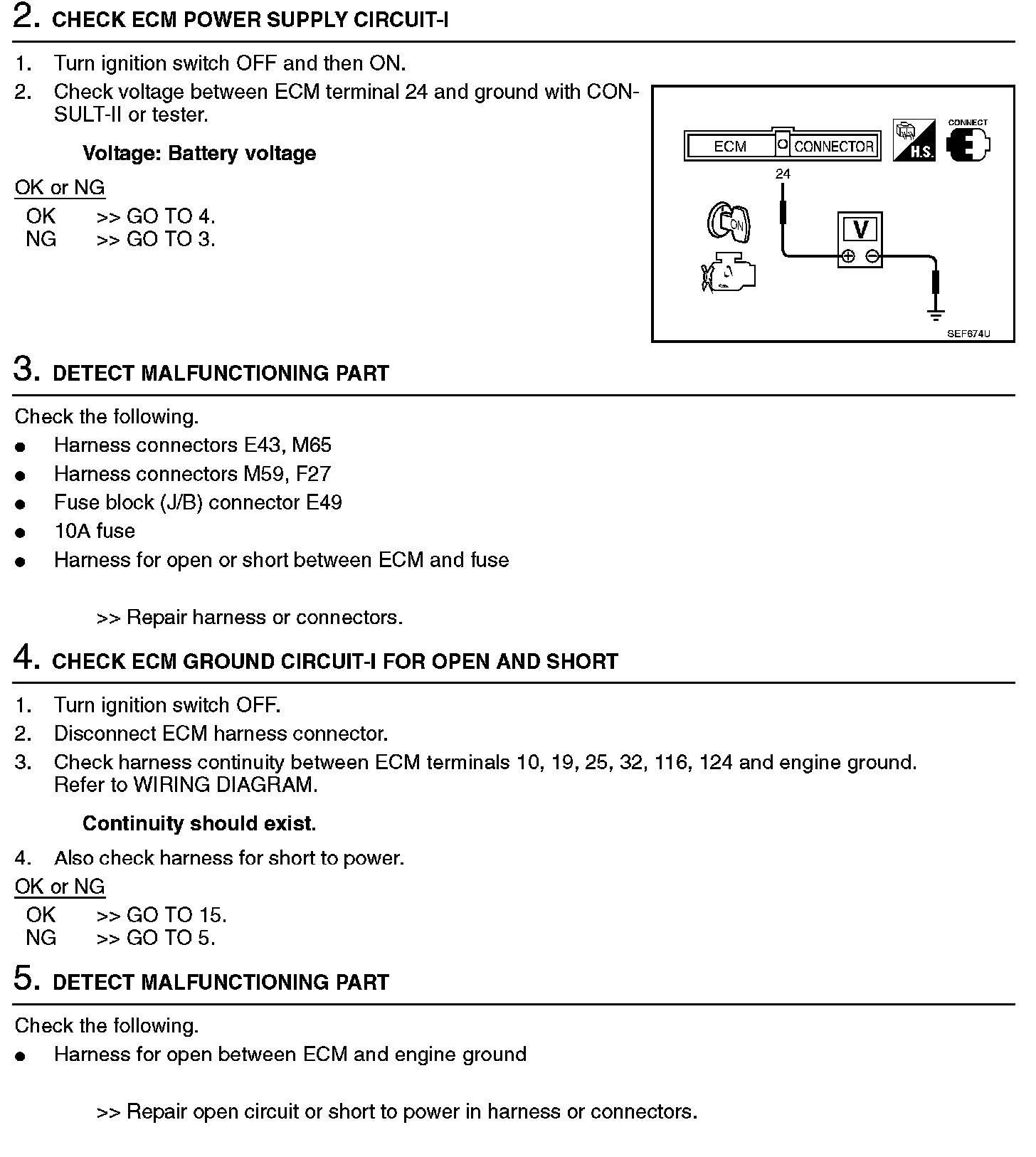

Diagnostic Procedure (Steps 2 - 5):

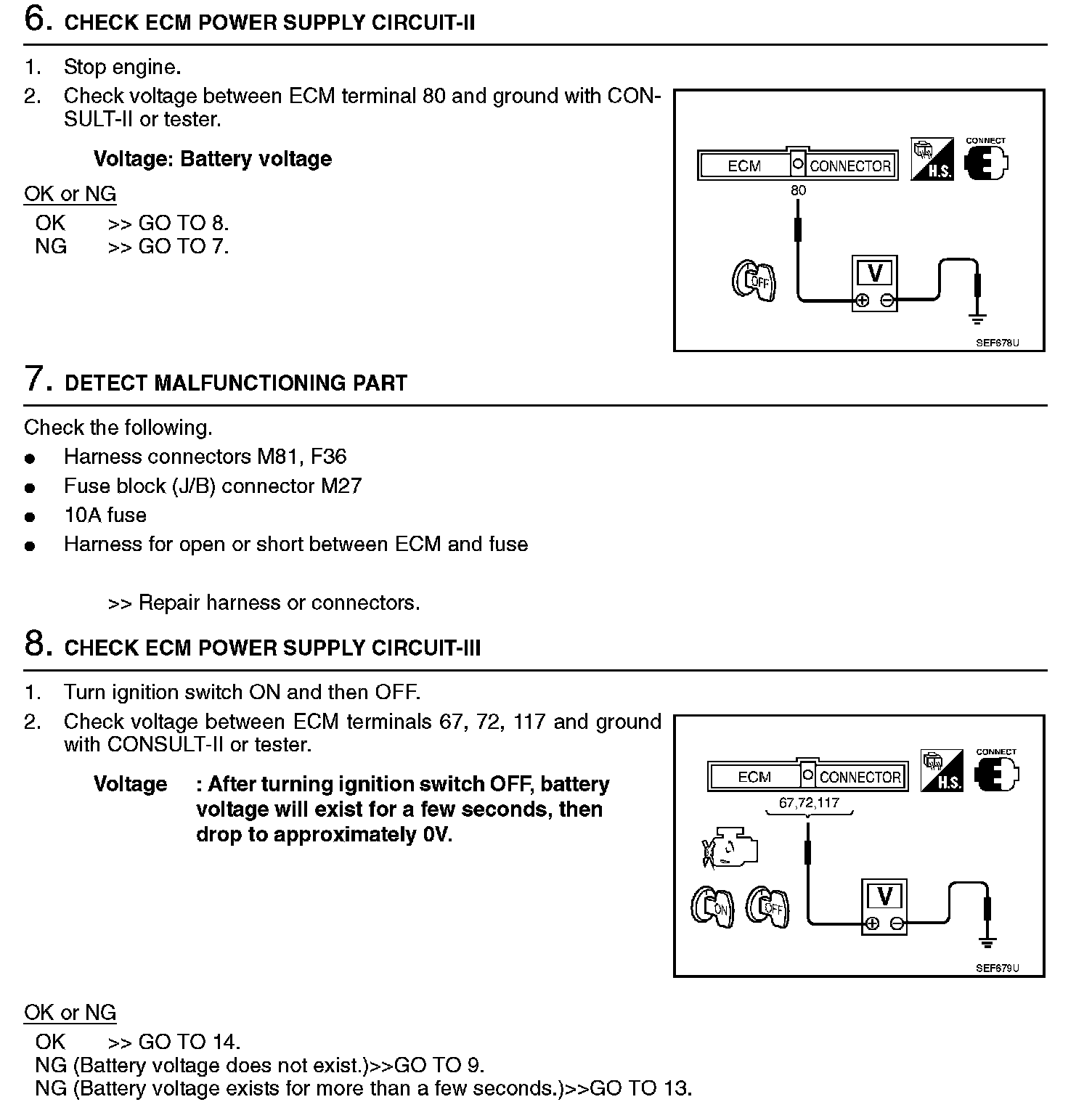

Diagnostic Procedure (Steps 6 - 8):

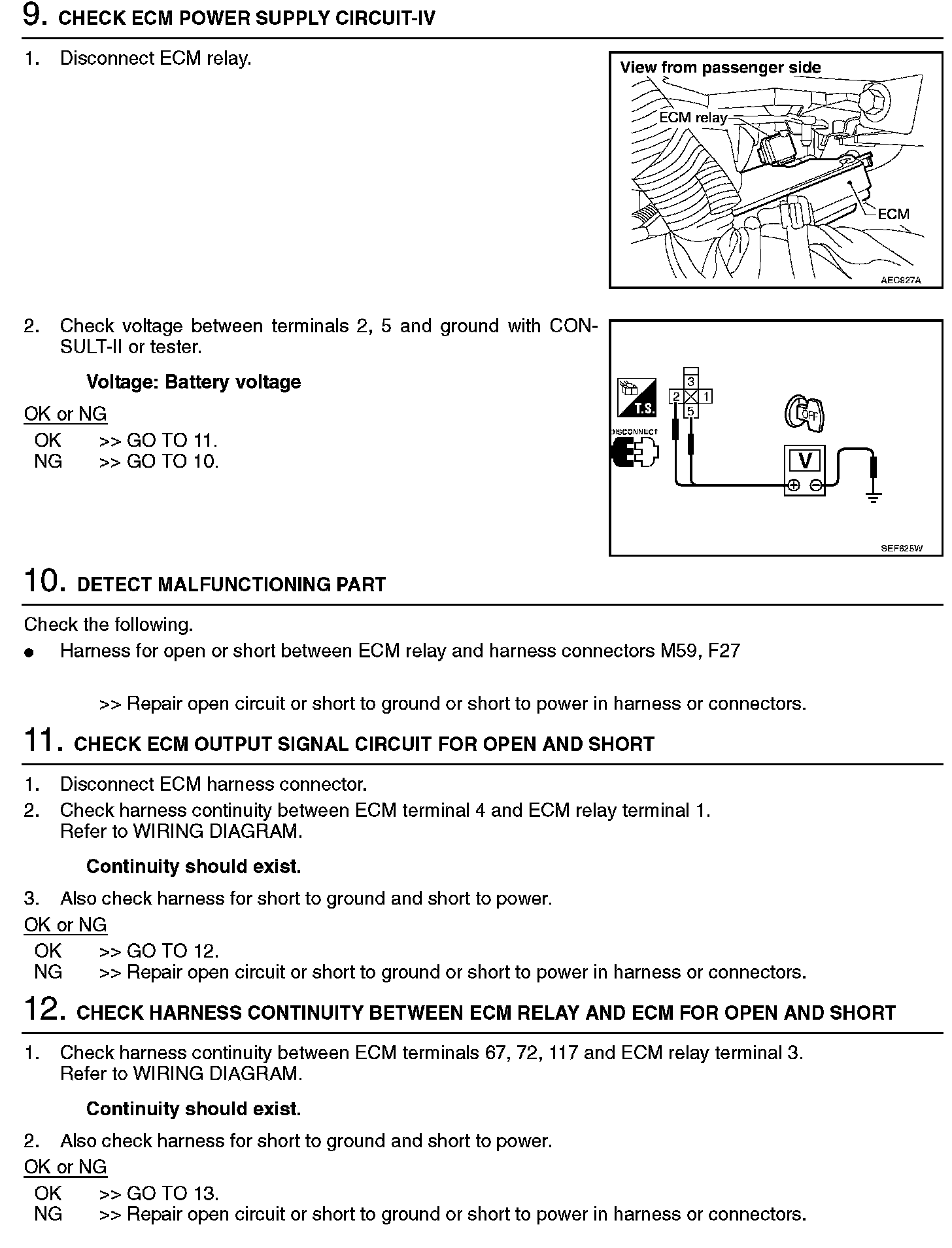

Diagnostic Procedure (Steps 9 - 12):

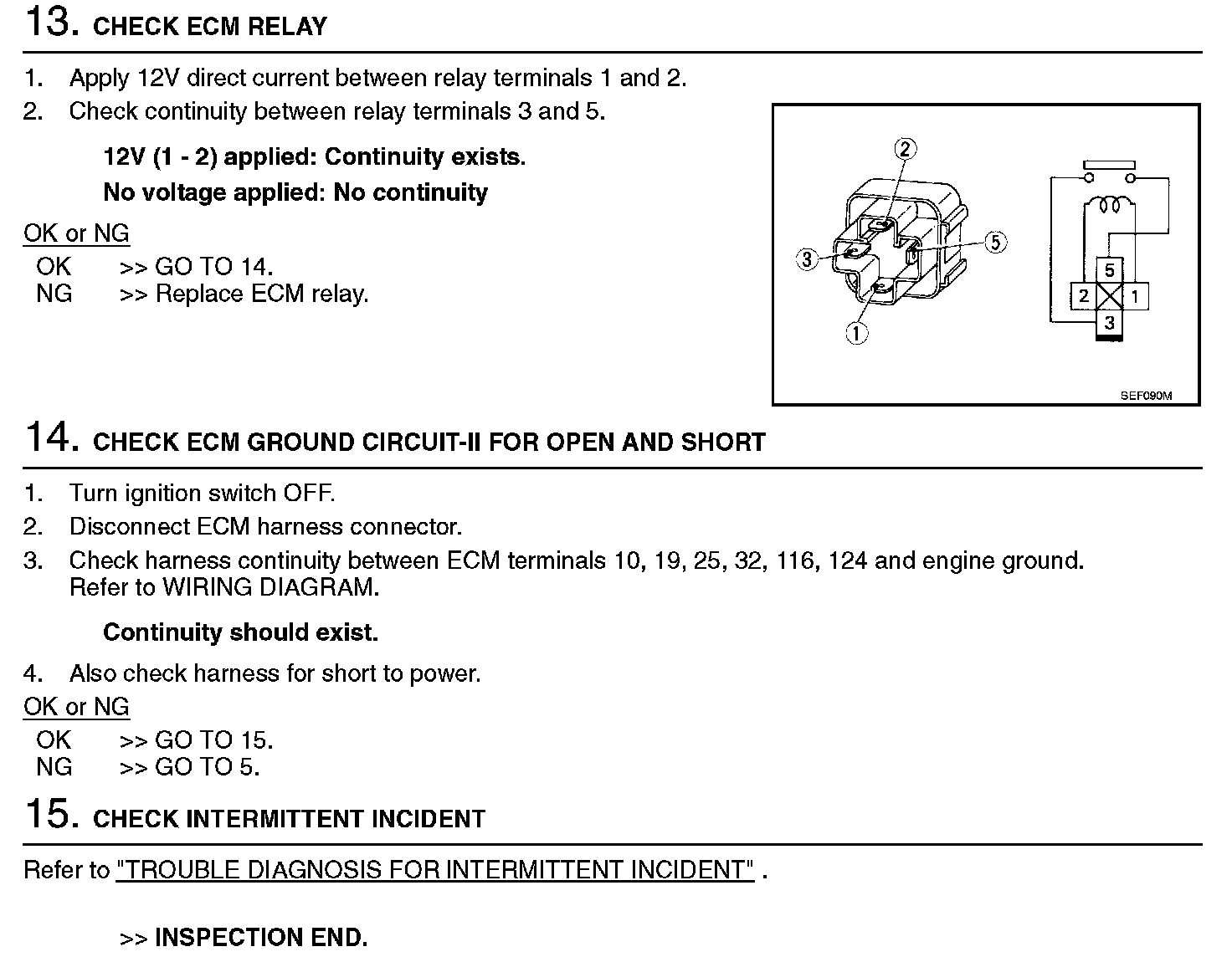

Diagnostic Procedure (Steps 13 - 15):




Diagnostic Procedure
