A/T Does Not Shift: 2(2)->1(1) W/Selector Lever 2->1 Pos.

19. A/T Does Not Shift: 2(2) -> 1(1), When Selector Lever 2 -> 1 Position

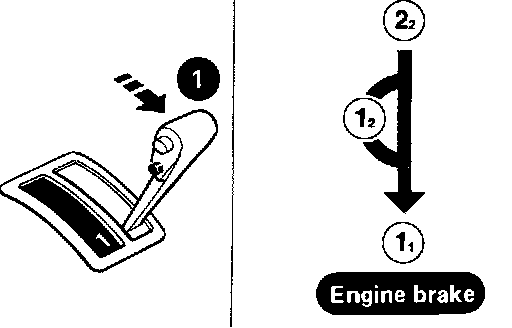

SYMPTOM: A/T does not shift from 2(2) to 1(1) when changing selector lever from 2 to 1 position.

1. CHECK PNP SWITCH CIRCUIT
With CONSULT-II





Does "TCM INPUT SIGNALS" in Data Monitor show damage to PNP switch circuit?

Without CONSULT-II
Does self-diagnosis show damage to PNP switch circuit?
Yes or No
Yes >> Check PNP switch circuit. Refer to "P0705; Diagnostic Procedure".
No >> GO TO 2

2. CHECK SYMPTOM





Check again.
OK or NG
OK >> INSPECTION END
NG >>
1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
