Air Temperature Sensor ( Ambient / Intake ): Testing and Inspection

Component Inspection

INTAKE AIR TEMPERATURE SENSOR

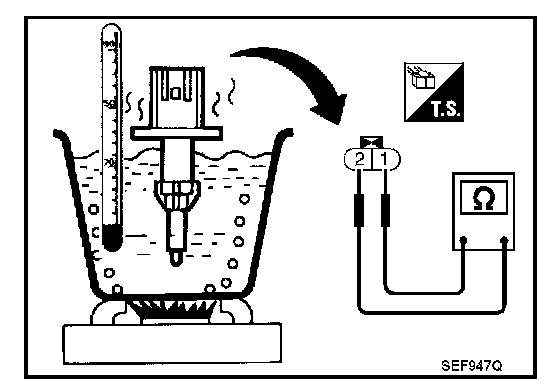

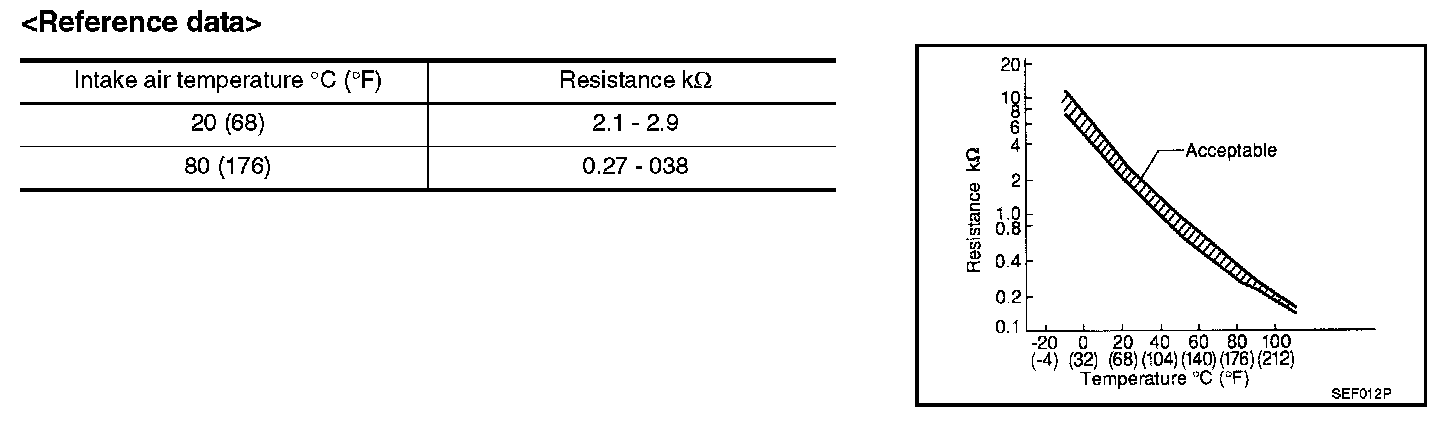

Check resistance as shown.
