Operation CHARM
: Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2004
>>
Xterra 2WD V6-3.3L (VG33E)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Transmission Control Systems
>>
Description and Operation
>>
A/T Control System
A/T Control System
Control Valve

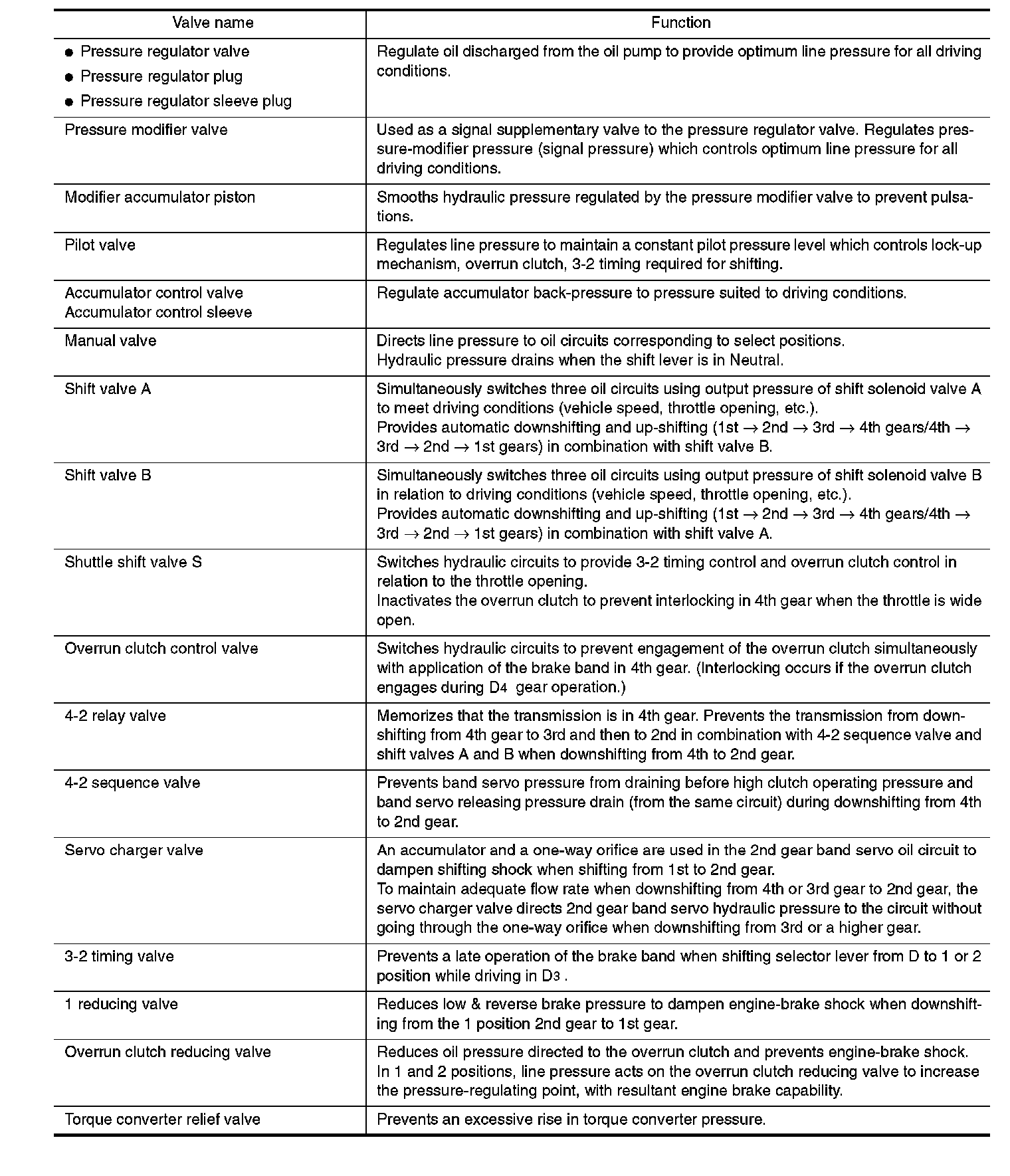

FUNCTION OF CONTROL VALVE
