Control Module
>>
Locations
>>
Interior
Interior

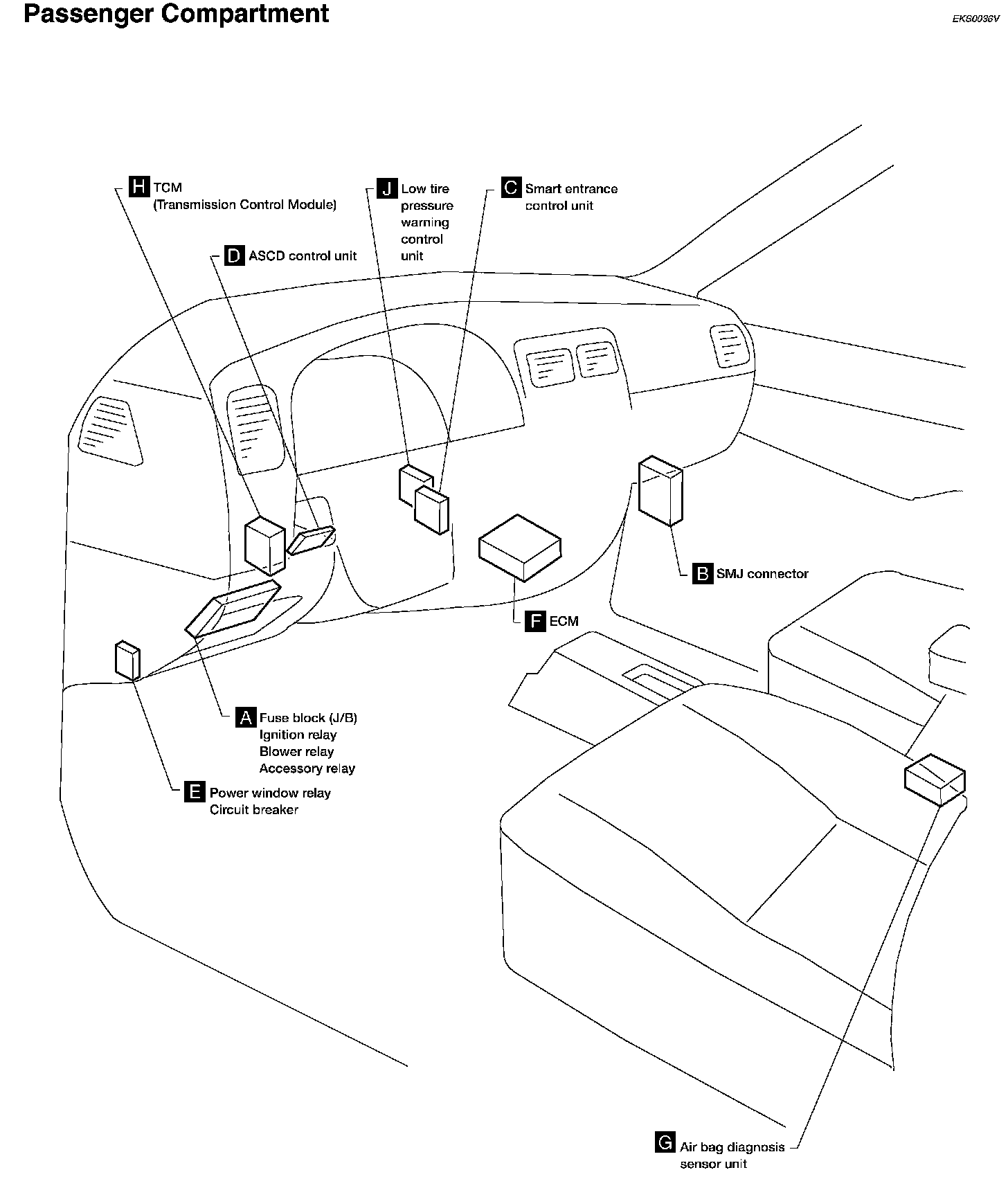

Passenger Compartment Electrical Units Locations Part 1:

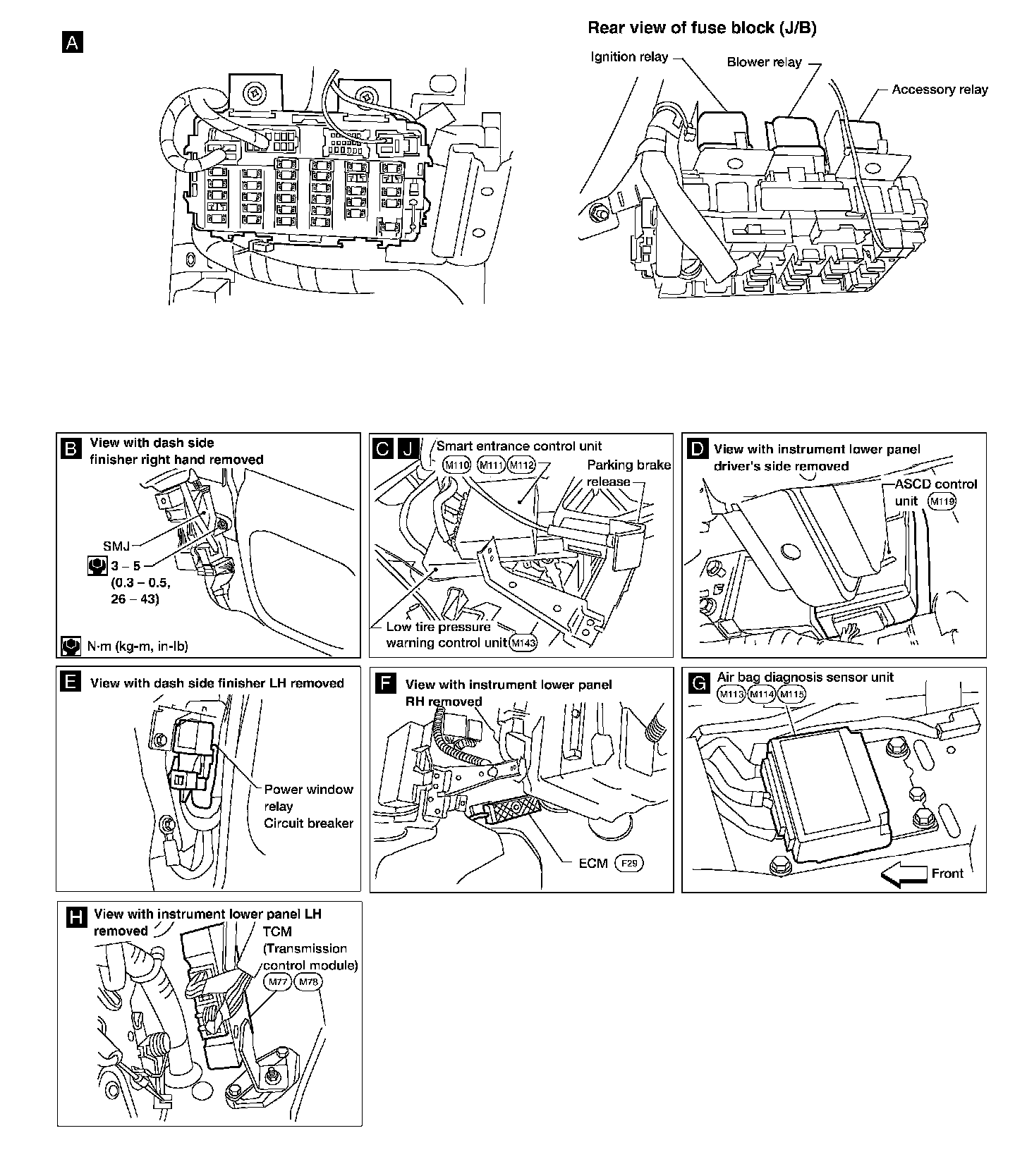

Passenger Compartment Electrical Units Locations Part 2:
