Air Flow Meter/Sensor: Service and Repair

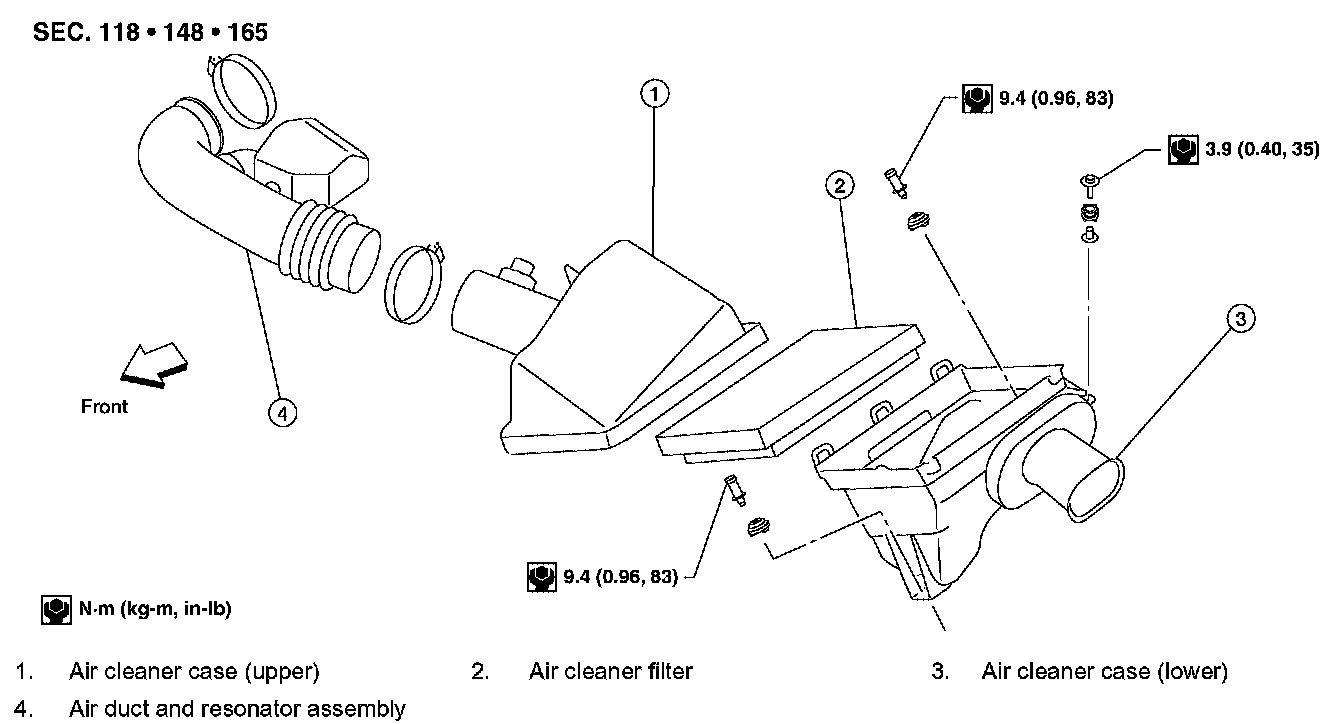

AIR CLEANER AND AIR DUCT






Removal and Installation
REMOVAL
1. Remove the engine room cover using power tool. Refer to "REMOVAL".
2. Disconnect the harness connector from air cleaner case (upper).
3. Remove the air duct and resonator assembly and air cleaner case.
^ Add marks as necessary for easier installation.

INSTALLATION
Installation is in the reverse order of removal.
