Fuel Level Sensor: Testing and Inspection

Electrical Components Inspection

FUEL LEVEL SENSOR UNIT CHECK
For removal, refer to "Removal and Installation".

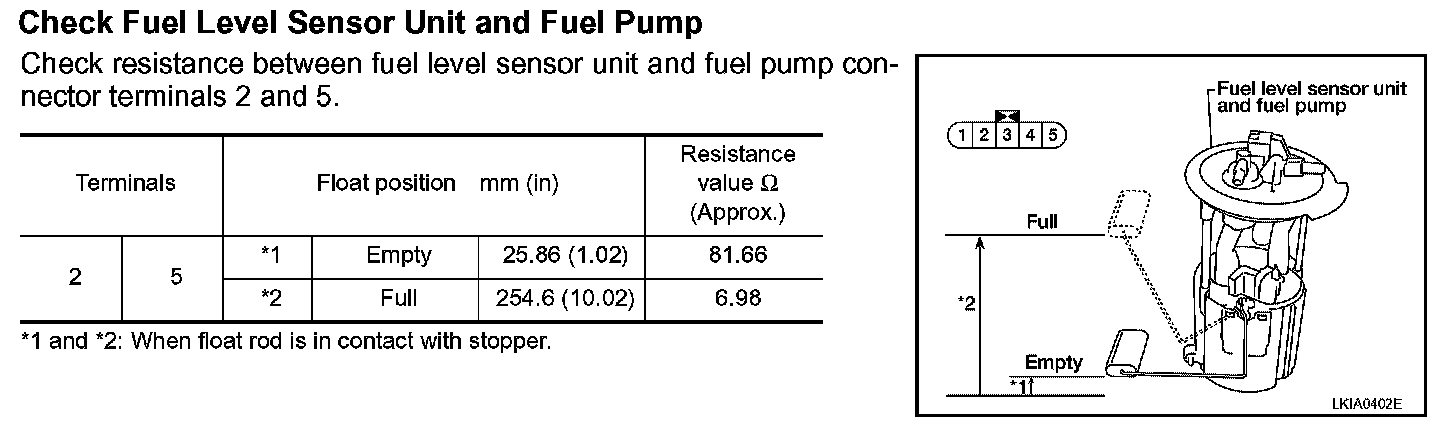

Check Fuel Level Sensor Unit and Fuel Pump
