Connecting Rod, Engine

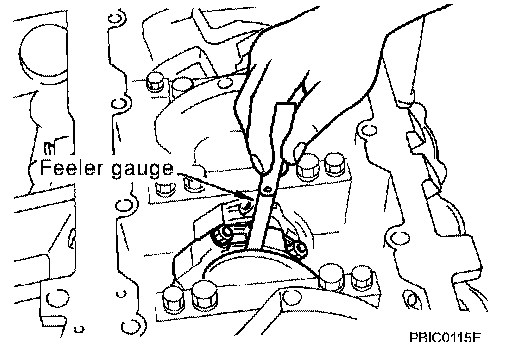

CONNECTING ROD SIDE CLEARANCE





^ Measure side clearance between the connecting rod and crankshaft arm using suitable tool.
Standard: 0.20 - 0.40 mm (0.0079 - 0.0157 inch)
Limit: 0.40 mm (0.0157 inch)
^ If measured value exceeds the repair limit, replace the connecting rod bearings, and measure again. If it still exceeds the repair limit, replace the crankshaft also.

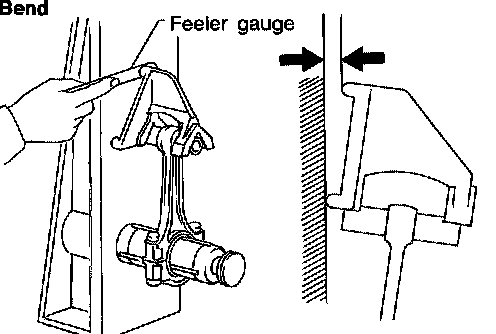

CONNECTING ROD BEND AND TORSION





^ Check connecting rod alignment using suitable tool.
Limit:
Bend: 0.15 mm (0.0059 inch) per 100 mm (3.94 inch) length
Torsion: 0.30 mm (0.0118 inch) per 100 mm (3.94 inch)length





^ If measurement exceeds the limit, replace connecting rod assembly.

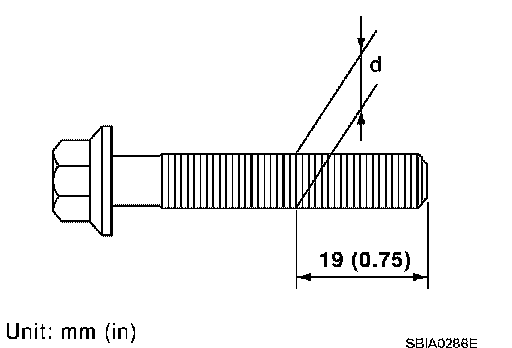

CONNECTING ROD BOLT DIAMETER
^ Measure diameter "d" at position shown.





^ When "d" is out of specifications (when it becomes thinner), replace bolt with a new one.
Limit: 7.75 mm (0.3051 inch) or less.

CONNECTING ROD CAP BOLT TORQUE
Step 1: 19.6 Nm (1.5 kg-m, 11 ft. lbs.)
Step 2: 90° clockwise

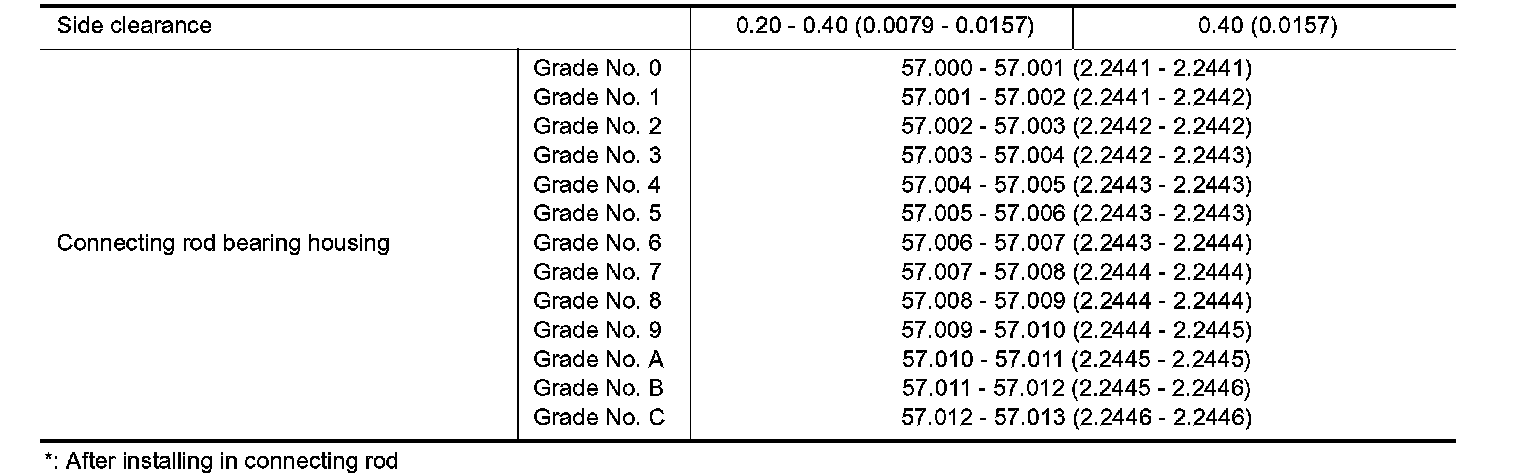

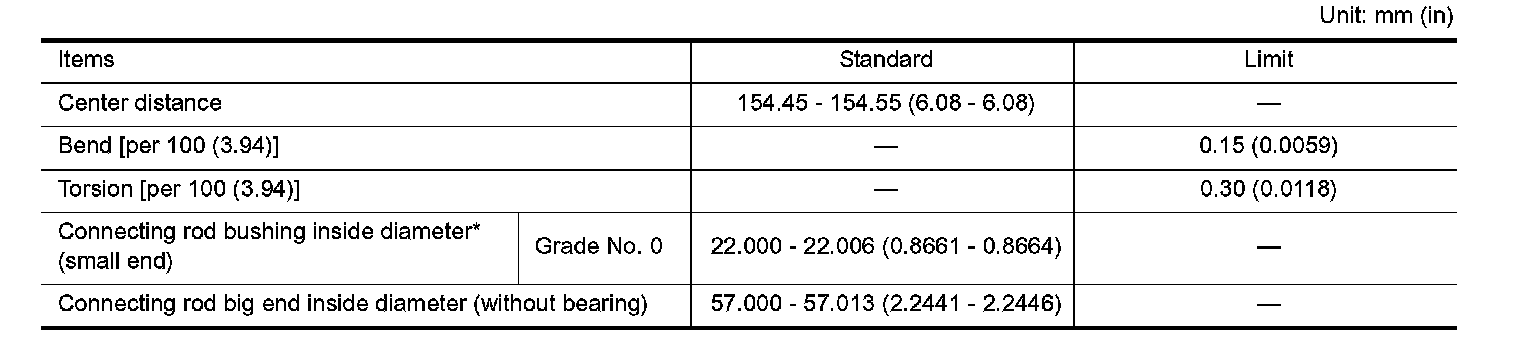

CONNECTING ROD
