Body Control Module

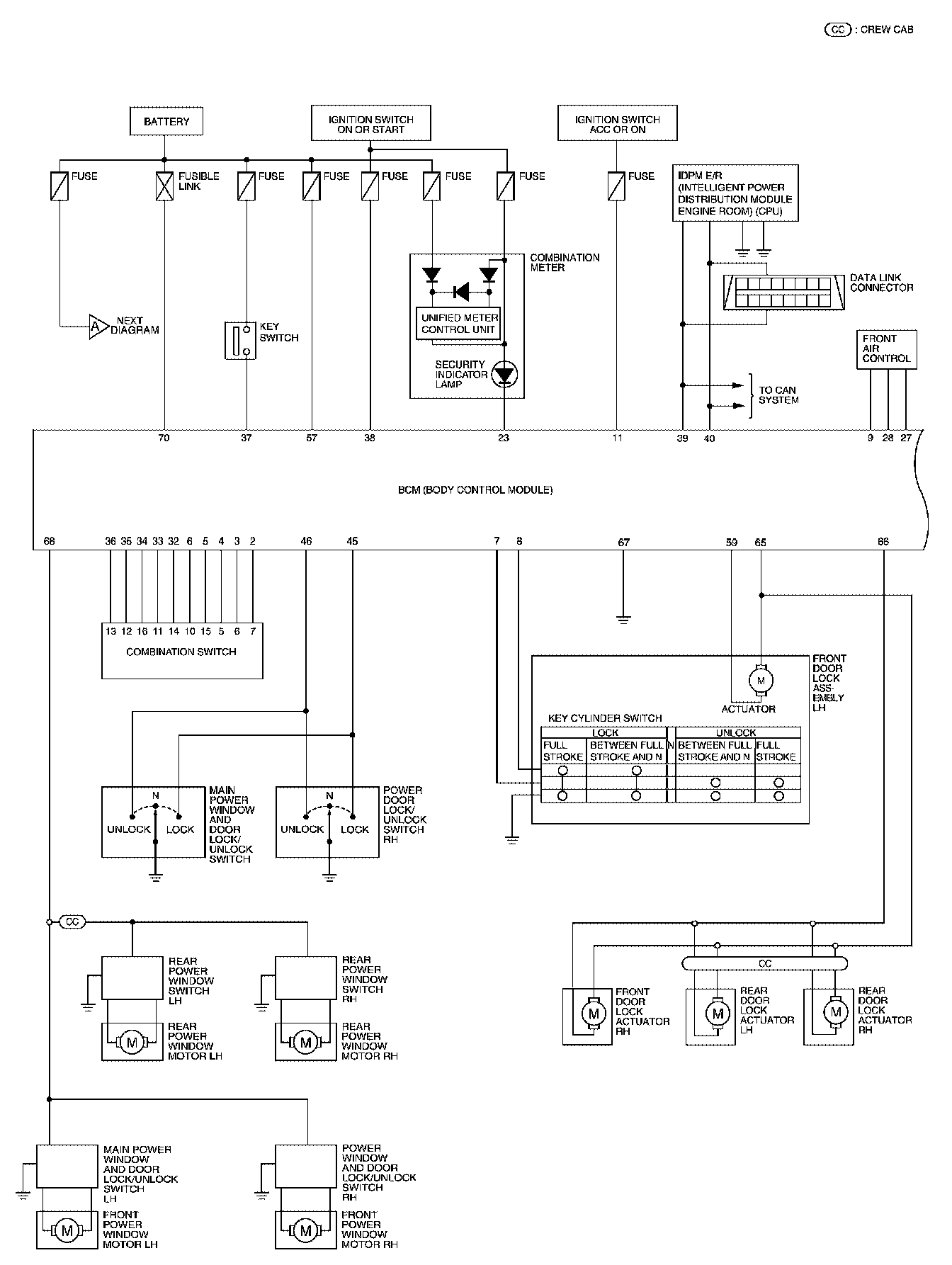

BCM (Body Control System) Schematic Part 1 Of 2:

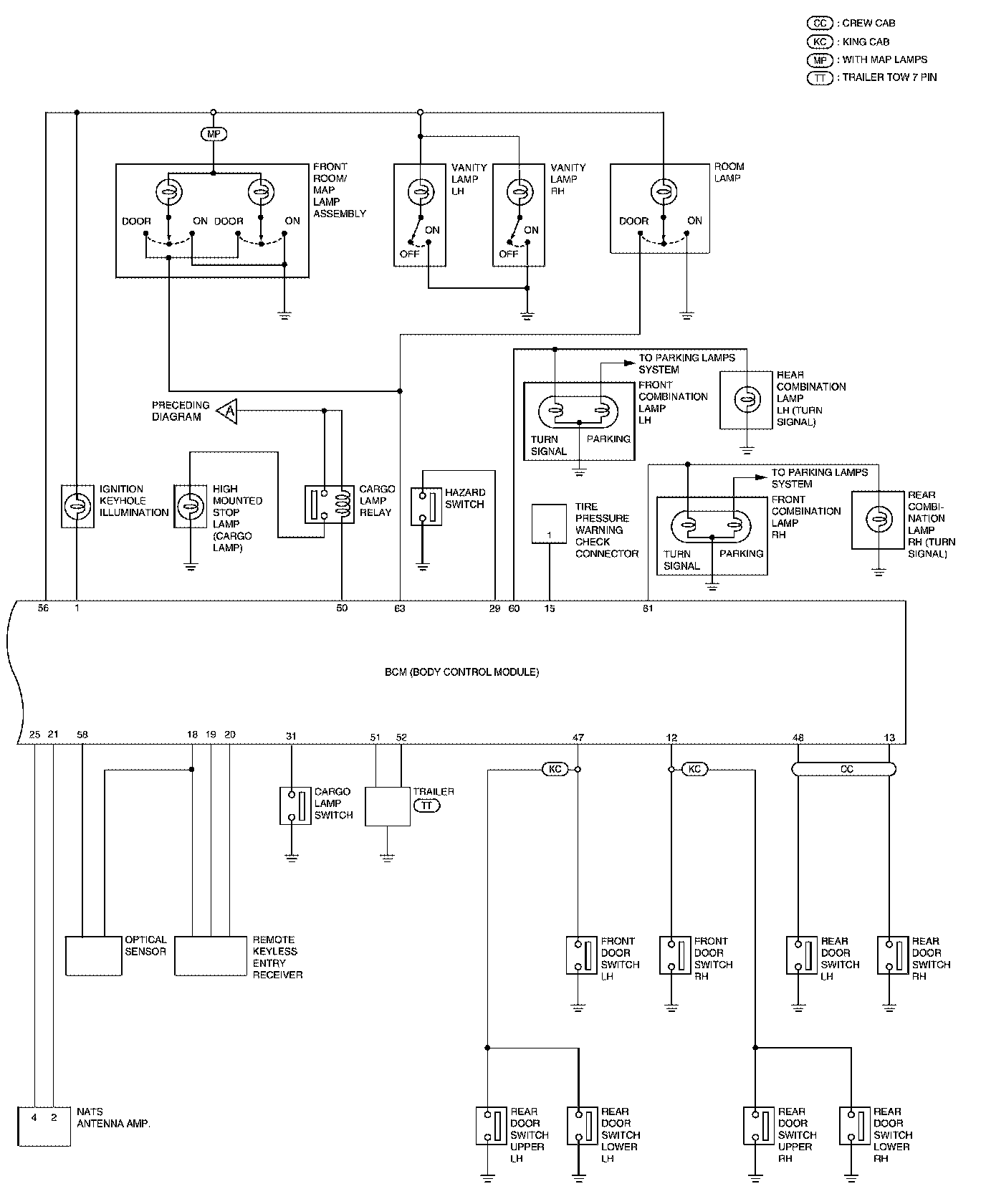

BCM (Body Control System) Schematic Part 2 Of 2:
