Control Assembly: Service and Repair

CONTROL UNIT

Removal and Installation

AIR CONTROL

Removal
1. Remove cluster lid C. Refer to "CLUSTER LID C".

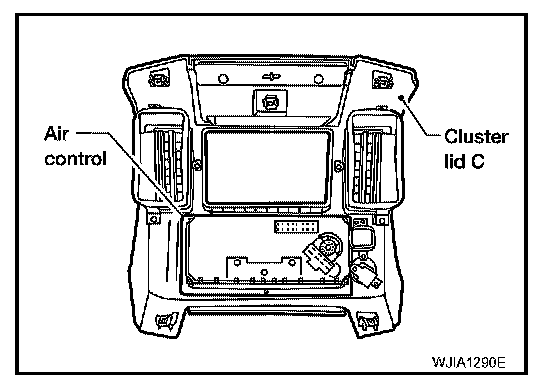

2. Remove the four screws securing the air control to cluster lid C.
3. Remove the air control.

Installation
Installation is in the reverse order of removal.
