Operation CHARM
: Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2005
>>
Frontier 2WD L4-2.5L (QR25DE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Data Link Connector
>>
Locations
>>
Component Locations
Component Locations
Passenger Compartment Electrical Units Location:

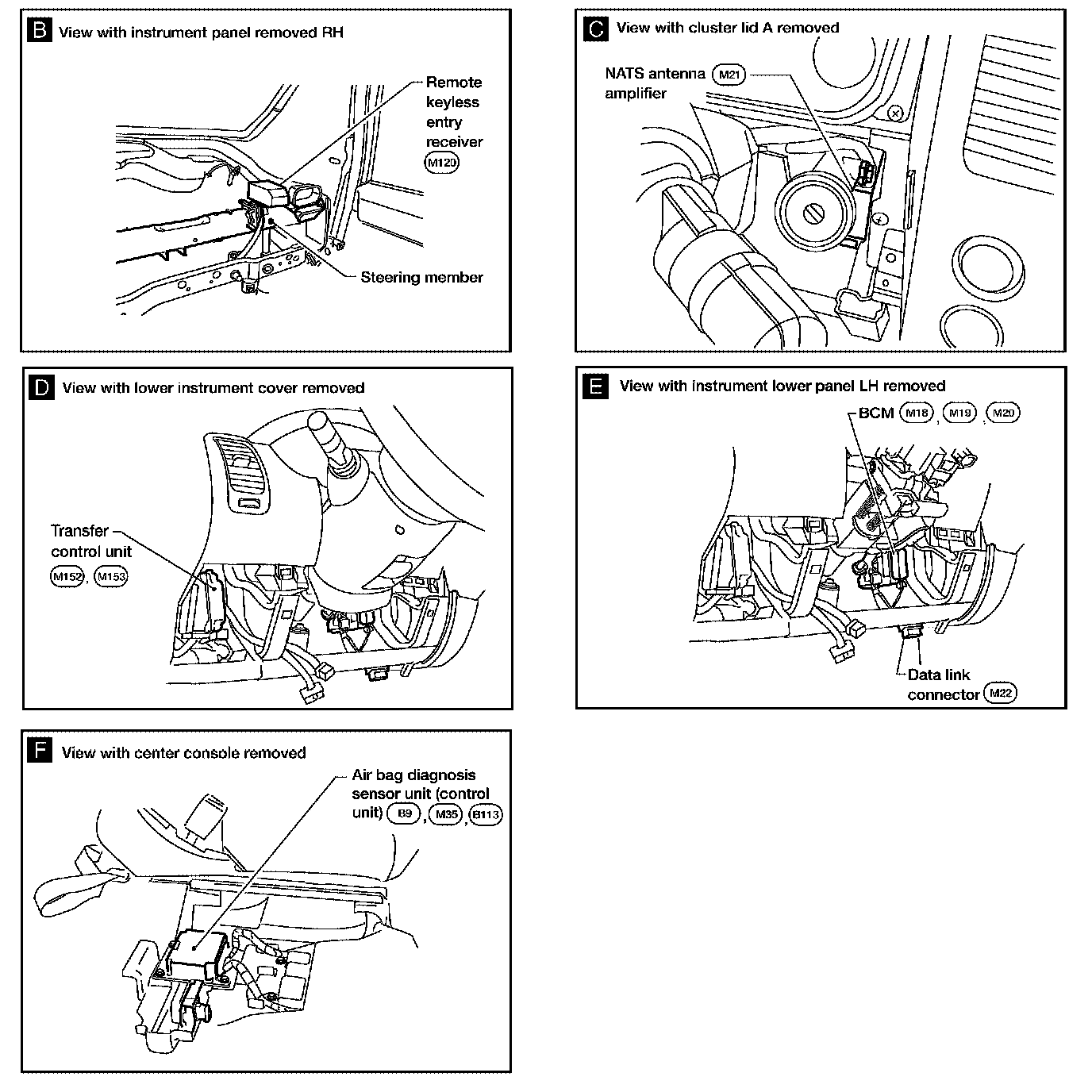

Component Parts And Harness Connector Location:
Component Parts And Harness Connector Location:
