System Specifications
Timing Chain TensionerChain tensioner 7.0 Nm (0.71 kg-m, 62 inch lbs.)
Timing chain tension guide bolt 16.7 Nm (1.7 kg-m, 12 ft. lbs.)
Crankshaft Pulley
Tighten crankshaft pulley bolt using Tool.
Tool number : KV10112100 (BT-8653-A)
Secure crankshaft pulley using suitable tool, and tighten crankshaft pulley bolt.
Apply new engine oil to thread and seat surfaces of crankshaft pulley bolt.
Tighten crankshaft pulley bolt.
Tightening Torque 42.1 Nm (4.3 kg-m, 31 ft. lbs.)

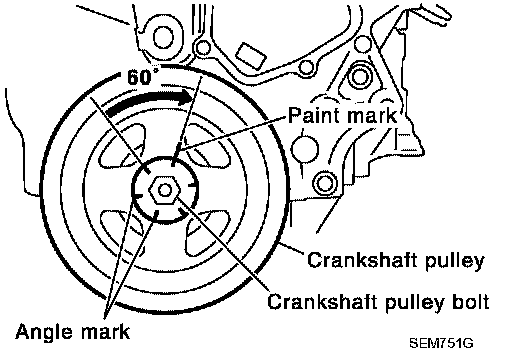

Put a paint mark on crankshaft pulley, mating with any one of six easy to recognize angle marks on bolt flange.
Turn another 60° degrees clockwise (angle tightening).
Check the tightening angle with movement of one angle mark.
