Removal and Installation of Display Control Unit

Removal and Installation of Display Control Unit
1. Remove glove box assembly. Refer to "Instrument Lower Panel RH and Glove Box".

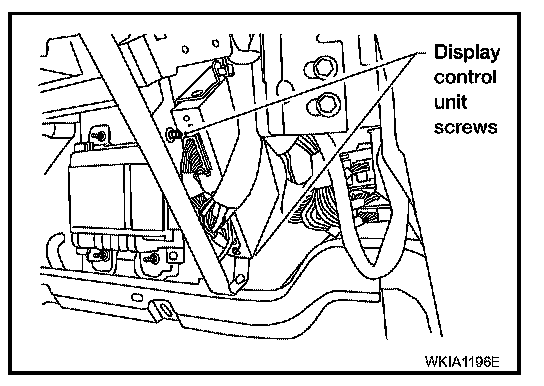

2. Remove the two display control unit screws.

NOTE: The display control unit screws are located on the side and the bottom of the unit.

3. Disconnect connectors.
4. Installation is in reverse order of removal.
