Home >> Nissan-Datsun >> 2005 >> Quest V6-3.5L (VQ35) >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Keyless Entry Receiver >> Testing and Inspection

Keyless Entry Receiver: Testing and Inspection

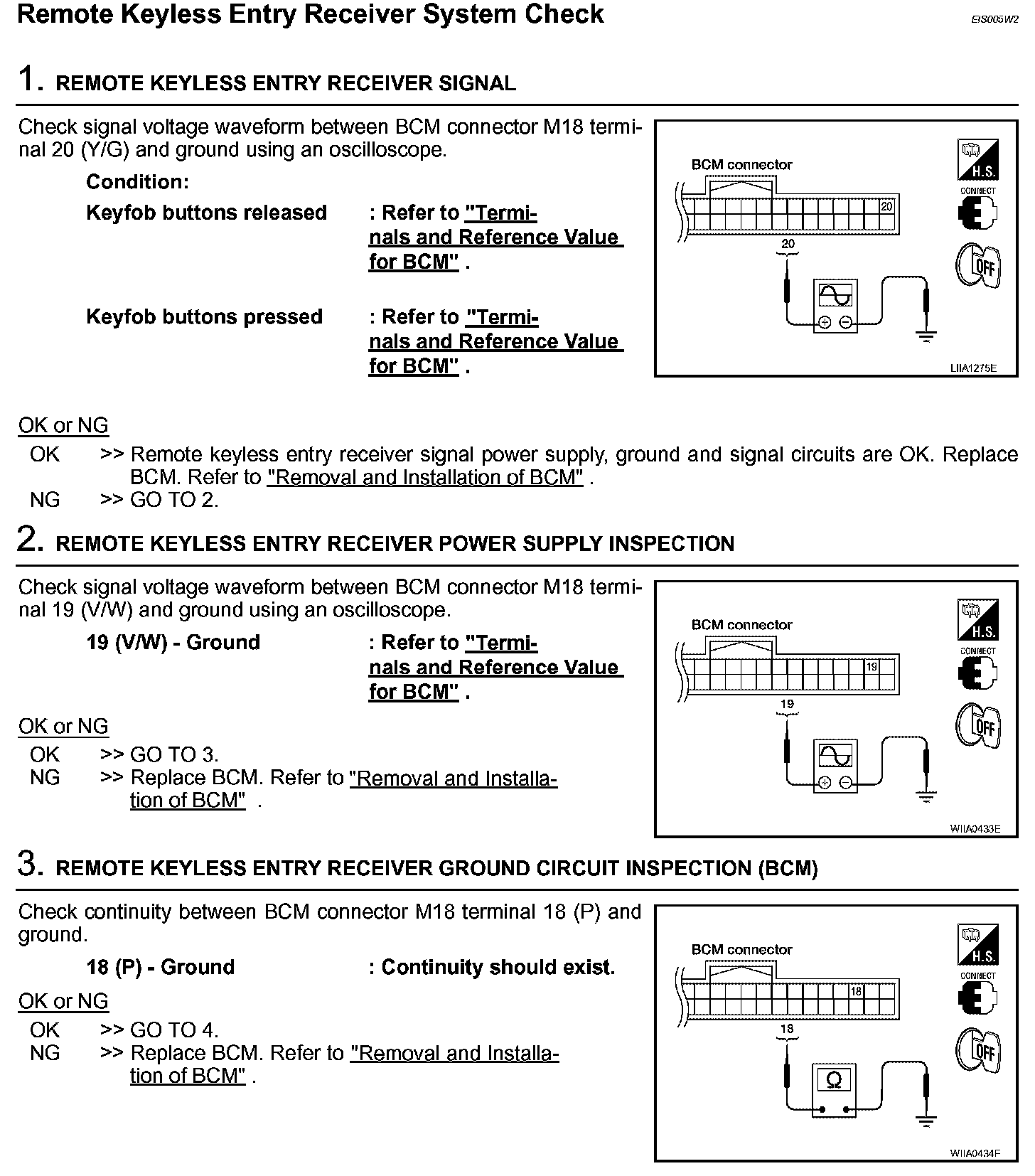

Remote Keyless Entry Receiver System Check (Steps 1 -3):

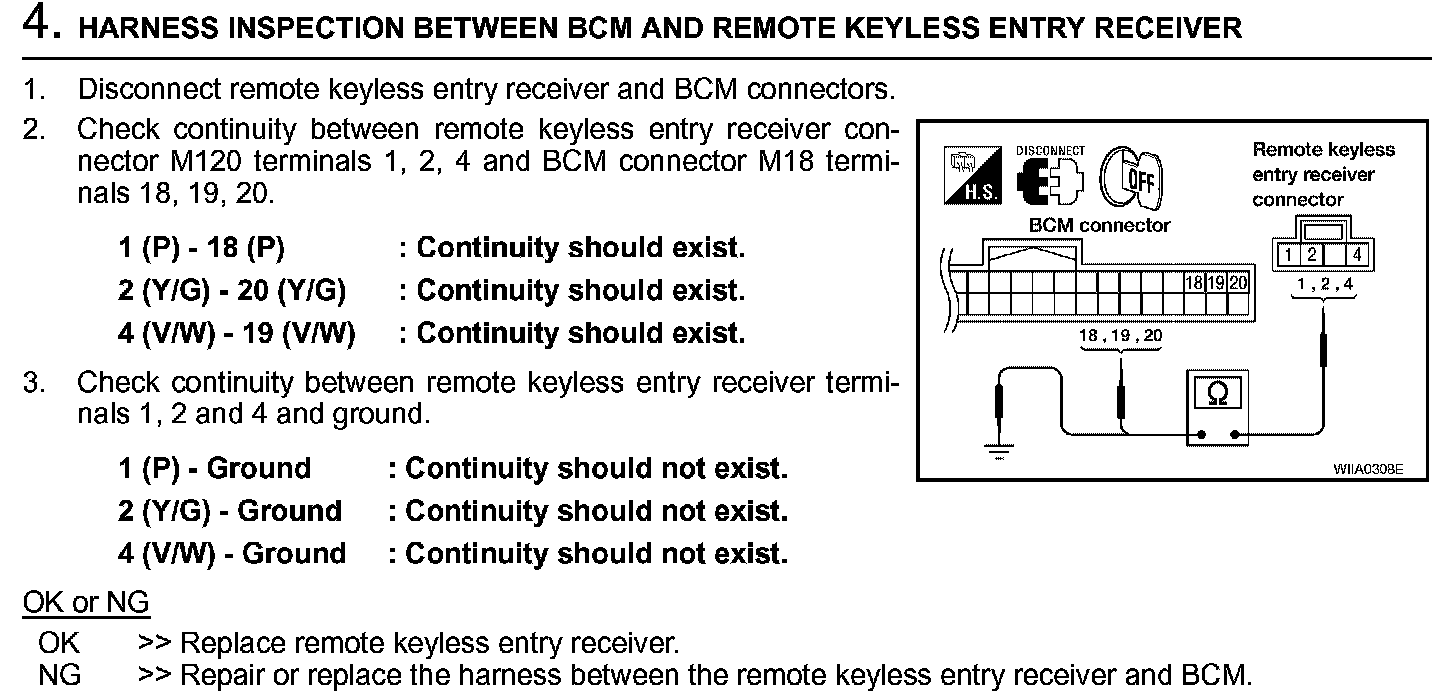

Remote Keyless Entry Receiver System Check (Step 4):
