Ignition Timing: Testing and Inspection

IGNITION TIMING
Any of following two methods may be used.

Method A

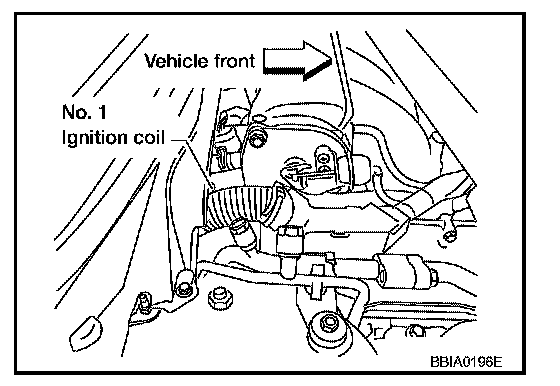

1. Slide the harness protector off ignition coil No.1 to clear the wires.

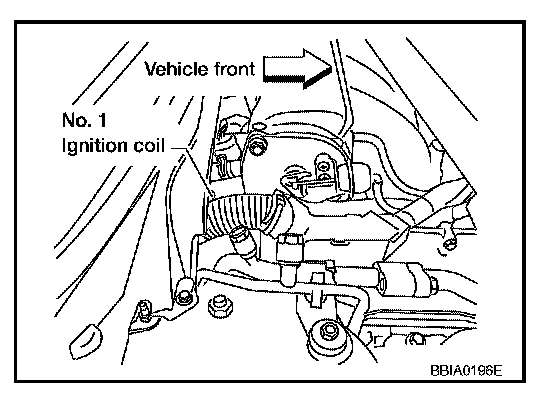

2. Attach timing light to the ignition coil No.1 wires as shown in the figure.

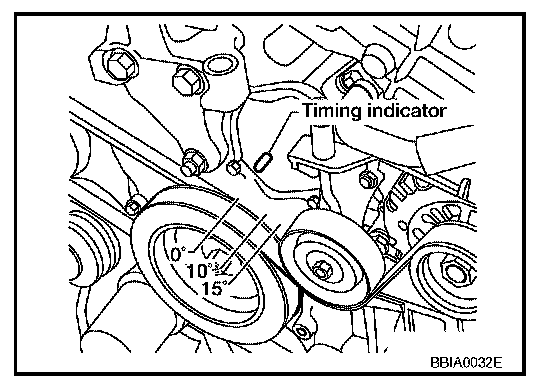

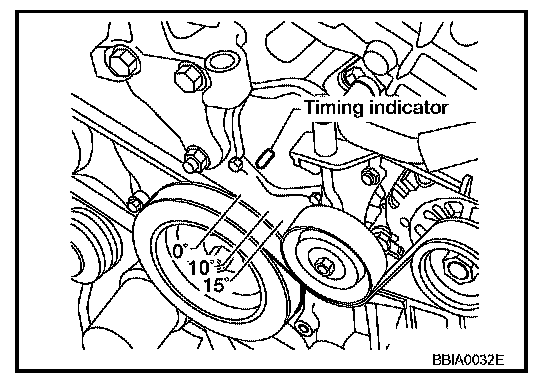

3. Check ignition timing.

Method B




1. Remove No.1 ignition coil.

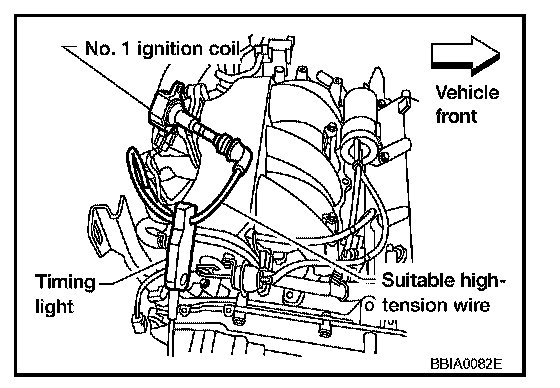

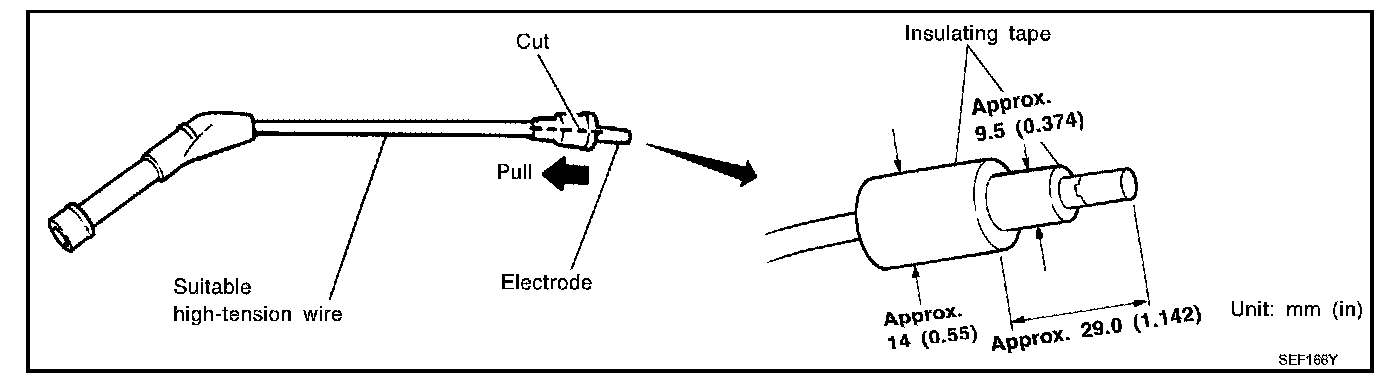

2. Connect No.1 ignition coil and spark plug with suitable high-tension wire as shown, and attach timing light clamp to this wire.




3. Check ignition timing.
