TCS/ABS

ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)

Removal and Installation
REMOVAL
1. Disconnect the negative battery terminal.
2. Remove the cowl top extension. Refer to "Removal and Installation".
3. Drain the brake fluid. Refer to "Changing Brake Fluid".
4. Disconnect the actuator harness from the ABS actuator and electric unit (control unit).

CAUTION:
^ To remove the brake tubes, use a flare nut wrench to prevent the flare nuts and brake tubes from being damaged.
^ Be careful not to splash brake fluid on painted areas.

5. Disconnect the brake tubes.

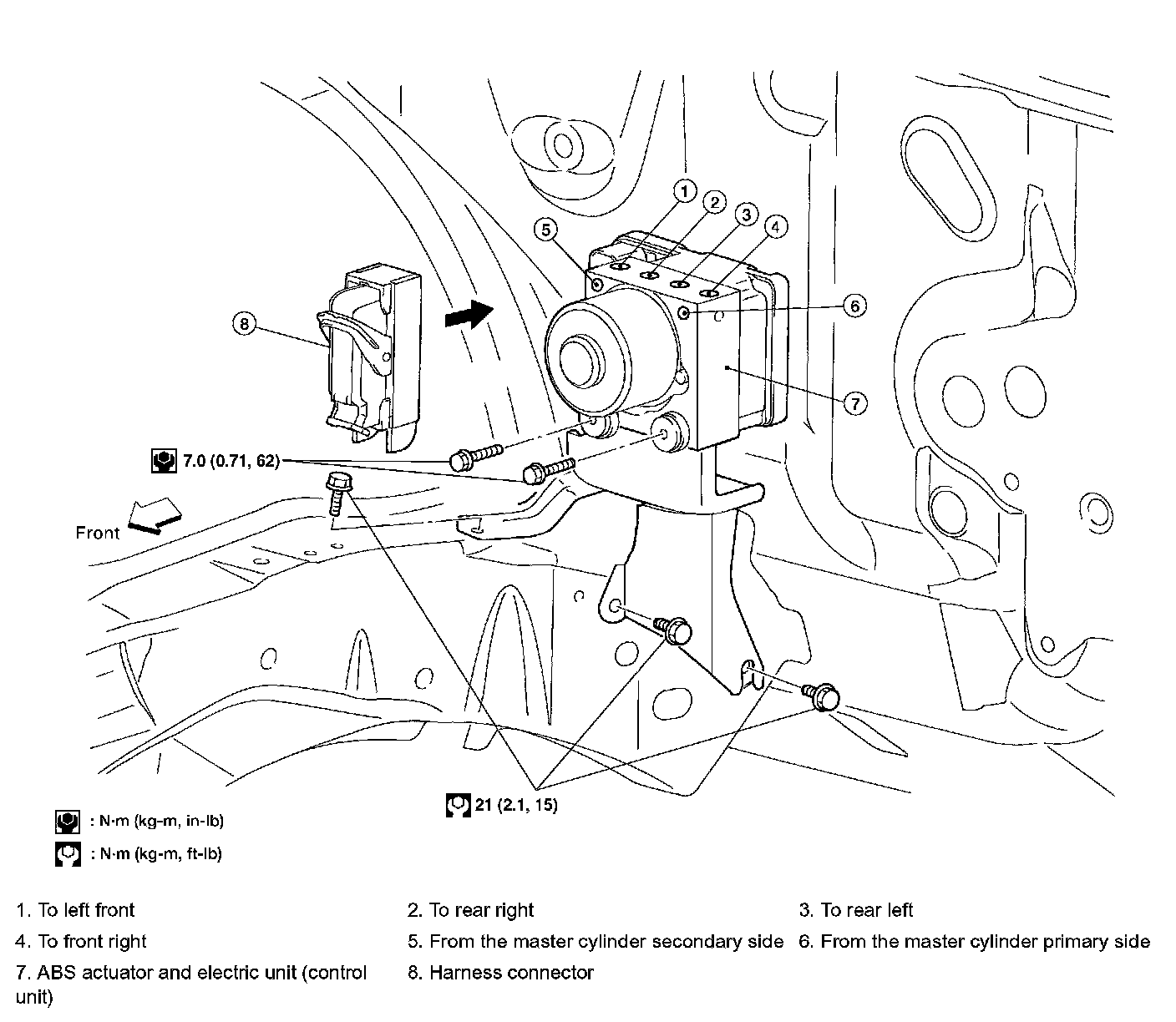

6. Remove the two bolts and then the ABS actuator and electric unit (control unit).

INSTALLATION
Installation is in the reverse order of removal.
^ Refer to "BRAKE PIPING AND HOSE when connecting the brake tubes.

CAUTION:
To install, use a flare nut wrench (commercial service tool).
^ Always tighten the brake tubes to the specified torque when installing.
^ Never reuse drained brake fluid.
^ After installation of the ABS actuator and electric unit (control unit), refill the brake system with new brake fluid. Then bleed the air from the system. Refer to "Bleeding Brake System".
