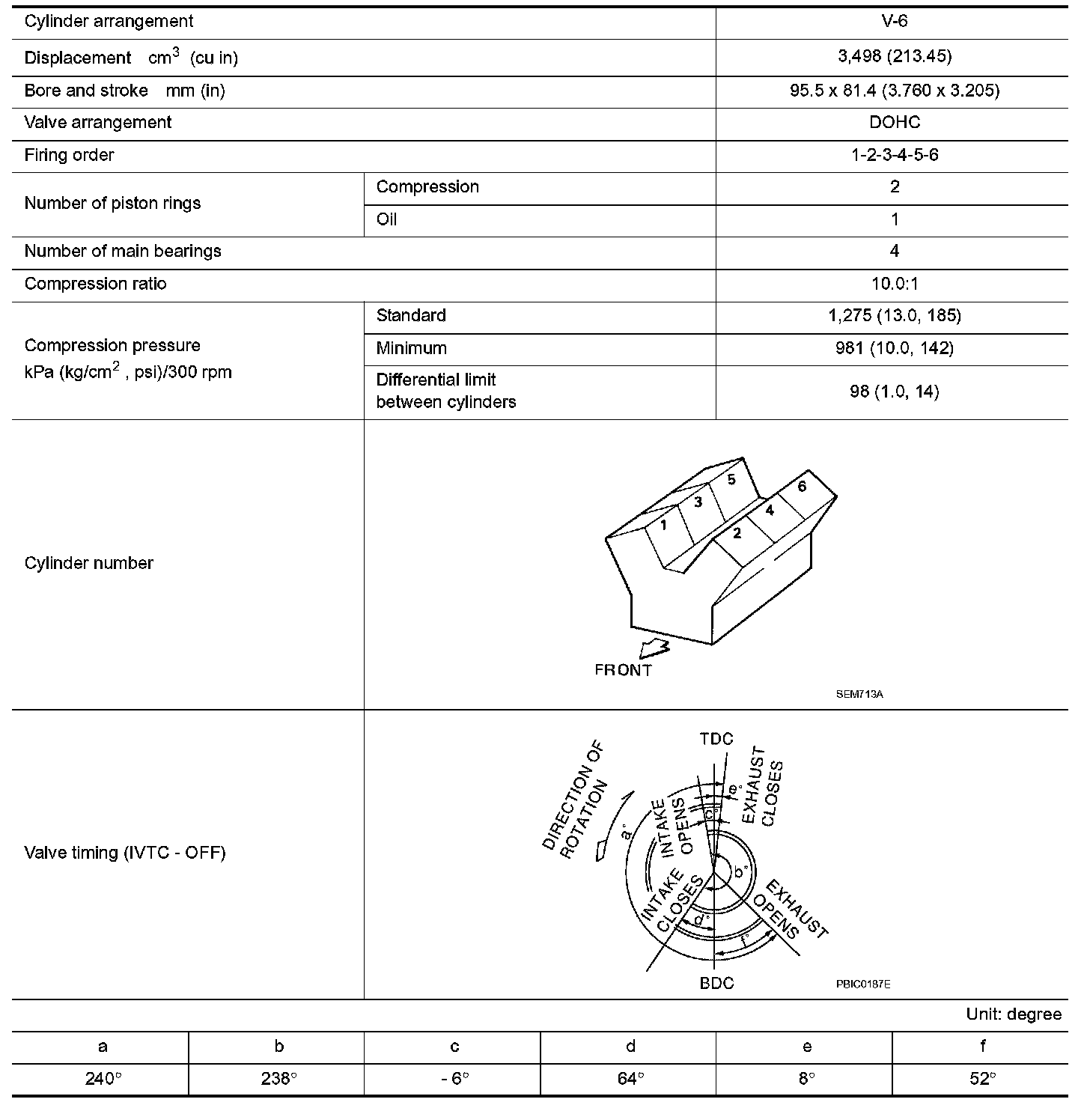

General Specifications

Cylinder Head

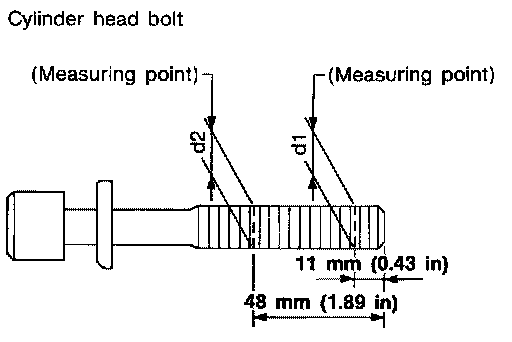

Outer Diameter of Cylinder Head Bolts





^ Inspect the cylinder head bolts before installing the cylinder heads.

CAUTION: Cylinder head bolts are tightened by degree rotation tightening method. Whenever the size difference between d1 and d2 exceeds the limit, replace the bolts with new ones.

Limit (d1 - d2) 0.11 mm (0.0043 inch)
^ If a reduction in outer diameter appears in a position other than d2, use it as the d2 measuring point.
