System Specifications

Crankshaft Pulley

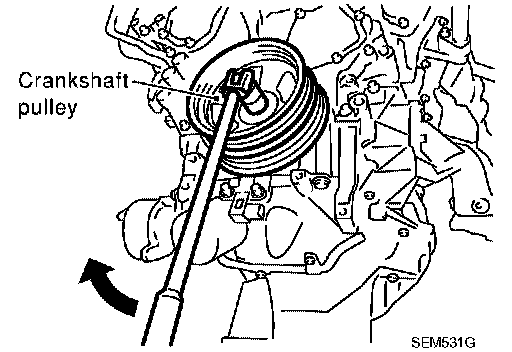

Install crankshaft pulley and tighten the bolt in two steps.
^ Lubricate thread and seat surface of the bolt with new engine oil.

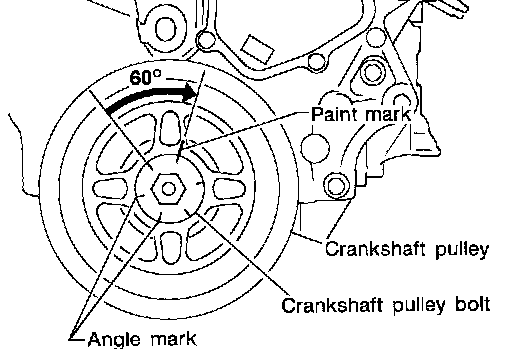

^ Apply a paint mark for the second step of angle tightening.
Crankshaft pulley bolt
Step 1 44 Nm (4.5 kg-m, 32 ft. lbs.)
Step 2 60° - 65° degrees clockwise

Timing Cover





Loosely install the front timing chain case bolts.
Bolt position Bolt diameter
1, 2 8 mm (0.31 inch)
3 - 22 6 mm (0.24 inch)

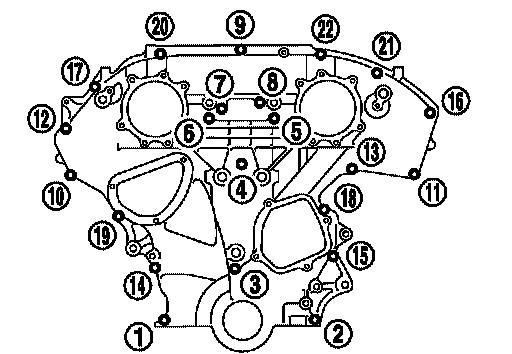

Tighten the front timing chain case bolts in the order as shown.
^ Retighten the front timing chain case bolts in the order as shown.
Bolt position Tightening specification
1, 2 28.5 Nm (2.9 kg-m, 21 ft. lbs.)
3-22 12.8 Nm (1.3 kg-m, 9 ft. lbs.)

Timing Chain Tensioner
4 A/T

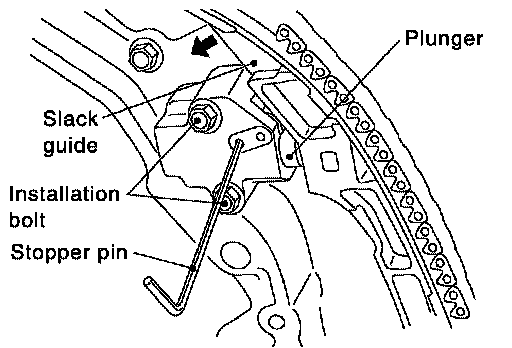

Install the timing chain tensioner for the slack guide.
Timing chain tensioner installation bolts 8.1 Nm (0.83 kg-m, 72 inch lbs.)

5 A/T

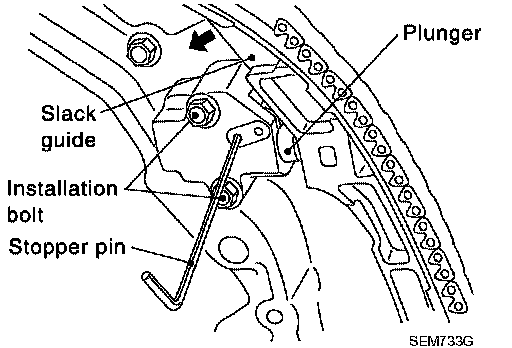

Install the timing chain tensioner for the slack guide.
Timing chain tensioner installation bolts 8.1 Nm (0.83 kg-m, 72 inch lbs.)
