Operation CHARM
: Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2005
>>
Xterra 4WD V6-4.0L (VQ40)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Related Tests, Information and Procedures
>>
Antitheft and Alarm Systems
>>
NVIS (Nissan Vehicle Immobilizer System-NATS)
>>
Diagnostic Procedure 5
Diagnostic Procedure 5
Diagnostic Procedure 5 (Steps 1 - 3):

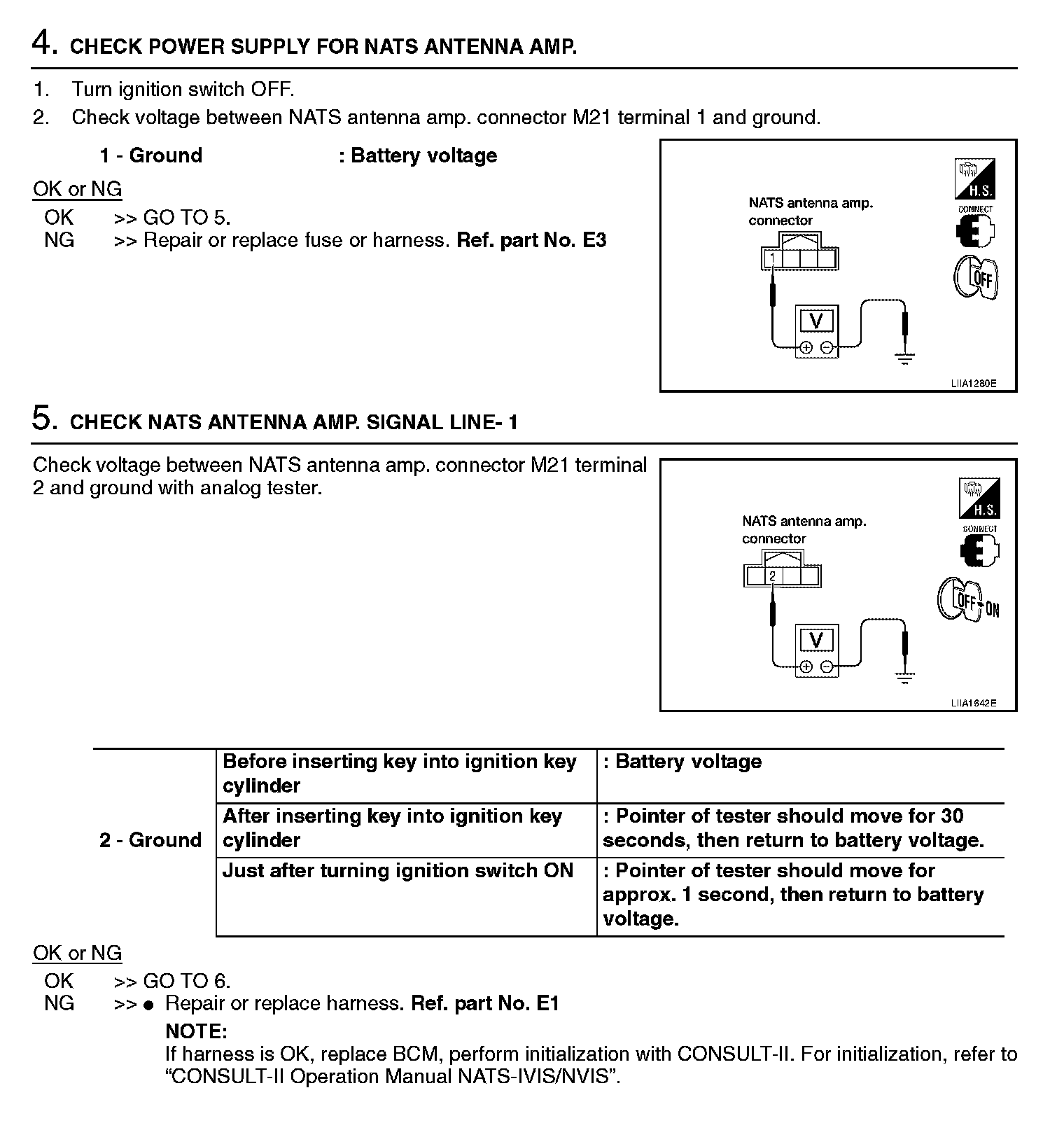

Diagnostic Procedure 5 (Steps 4 - 5):
Diagnostic Procedure 5 (Steps 6 - 7):
