Appendix B: Complete ECM Reprogramming Instructions
APPENDIX B: COMPLETE ECM REPROGRAMMING INSTRUCTIONSBefore beginning reprogramming, use CONSULT-II to make sure there are no DTCs stored in the ECM.
Repairs for stored DTCs must be done before performing the ECM reprogramming. Use ASIST for DTC diagnostic and repair information.
Repairs for stored DTCs are not related to this campaign.
[Reprogramming should be performed by an OBD-II Certified technician.]
Check the Current ECM Part Number (P/N)
1. With the Diagnostic Card (Red/white card) in CONSULT-II and CONSULT-II turned "ON", print the ECM Part Number as follows:
[START(Nissan)] >> [ENGINE] >> [ECM PART NUMBER] >> [COPY]
2. Attach this printout to the Repair Order.

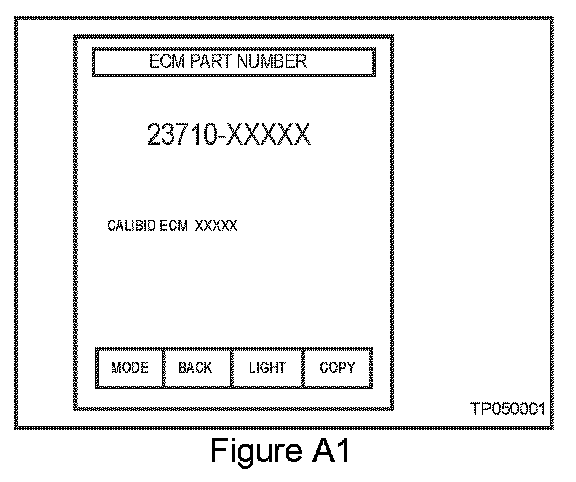

^ Figure A1 is an example of the ECM Part Number printout.
3. Compare your vehicle's ECM P/N to those shown under Current ECM P/N in Chart A, shown above.
A. If your vehicle's ECM P/N matches one of the Current ECM P/N's in the chart above:
^ Go to Reprogramming the ECM below.
B. If your vehicle's ECM P/N does not match one of the Current ECM P/N's in the chart above:
^ This campaign may not apply or has already been done on this vehicle.
^ Recheck Service Comm (campaign ID PB023) to confirm the vehicle you're working on is affected by this campaign.
Reprogramming the ECM
[Reprogramming should be performed by an OBD-II Certified technician.]
The reprogramming procedure involves three general steps:
Setting up
1. Install the Reprogramming Card into CONSULT-II.
^ Make sure CONSULT-II is disconnected from the vehicle and turned OFF.
^ The Reprogramming Software Card is the "orange" Card.
^ Use slot Atop slot (see Figure A2).
2. Connect the AC power supply to CONSULT-II.
3. Connect CONSULT-II to the ASIST PC with the special Ethernet cable (P/N 02002554 is printed on the cable).
A. Connect one end to CONSULT-II at the "PC port".
B. Connect the other end to the ASIST PC at the "Ethernet card" connection port.
4. Confirm the CONSULT-II date and time are correctly set as follows:
(This is necessary to provide a valid print-out for warranty claims.)
A. With the Reprogramming card in slot A, turn ON CONSULT-II.
B. Touch [SUB MODE].
C. Touch [SET DATE] (see Figure A3).
1) If the date is not correct, touch the [MONTH], [DAY] or [YEAR] as needed. Then adjust it by using arrow keys. Once done, press [SAVE], press [BACK], and go to step D.
2) If the date is OK, press [BACK] and go to step D.
D. Touch [SET TIME] (see Figure A3).
1) If the time is not correct, touch the [HOUR], [MINUTE] and [AM/PM] Adjust by using arrow keys. Once done, press [SAVE], press [BACK] and go to Step 5.
2) If time is OK, press [BACK] and go to step 5.
IMPORTANT NOTE:
^ If your ASIST PC is already being used to perform ECM Reprogramming, proceed to step 5 below.
^ If you are unsure whether your ASIST PC has already been set up for ECM Reprogramming, look in ASIST, under "CONSULT Utilities" - "CONSULT-II Info" - "NISSAN" - "ECU Reprogramming". This will give you instructions for setting the Ethernet (IP) Address of the ASIST PC and CONSULT-II. You will need to do this before performing ECM reprogramming.
Download (Transfer) Data From ASIST into CONSULT-II
5. From the ASIST PC main menu screen, select "CONSULT UTILITIES" (see Figure A4).
6. From the "CONSULT UTILITIES" screen, select "ECM / TCM DATA" (see Figure A5).
7. Select the "ECU REPROGRAMMING DATA" (see Figure A6) as follows:
A. Select vehicle model and model year.
B. Select the correct reprogramming data:
1) Locate the specific "Model Configuration" (Example: QR25 A/T ASCD).
NOTE:
^ Model Configuration may include items like engine type, transmission type, and vehicle options such as ASCD, TCS, ABS, etc.
^ Vehicle configuration can be verified using the "Current ECM P/N" in Chart A.
2) Select (click on) the "To" number.
NOTE:
The "To" number reads: 23710-XXXXX.
3) Write the "To" number on the Repair Order. You will need it later in the reprogramming process.
C. Click on the "Add" button to add data to the "File(s) selected" list. This list is on the right side of the screen.
D. Click the "CONTINUE" button to proceed with CONSULT-II setup.
8. Turn ON CONSULT-II as shown in Figure A7.
9. Select [Transfer files via LAN] (see Figure A8).
NOTE:
If you accidentally choose a menu option other than "Transfer Files via LAN"; turn CONSULT-II OFF, and then back ON as shown in Figure A7 above.
Set the CONSULT-II unit down for now and go to your ASIST PC.
10. Transfer (download) data from ASIST into CONSULT-II.
A. On the ASIST screen, click on "Transfer" (see Figure A9).
^ Data transfer will take about 15 seconds.
^ Transfer progress is displayed on the ASIST screen.
B. Wait until the data transfer is complete (see CAUTION below).
CAUTION: DO NOT DISCONNECT THE ETHERNET CABLE UNTIL COMPLETE IS DISPLAYED AS SHOWN IN FIGURE A10.
^ If the cable is disconnected before "File Transfer Complete" is displayed, you MUST restart the transfer (download) procedure; otherwise ECM damage can occur.
^ f the cable is disconnected during the transfer; wait for ASIST to display an "error" message, then click on "OK". Select "Backup", then return to step 6.

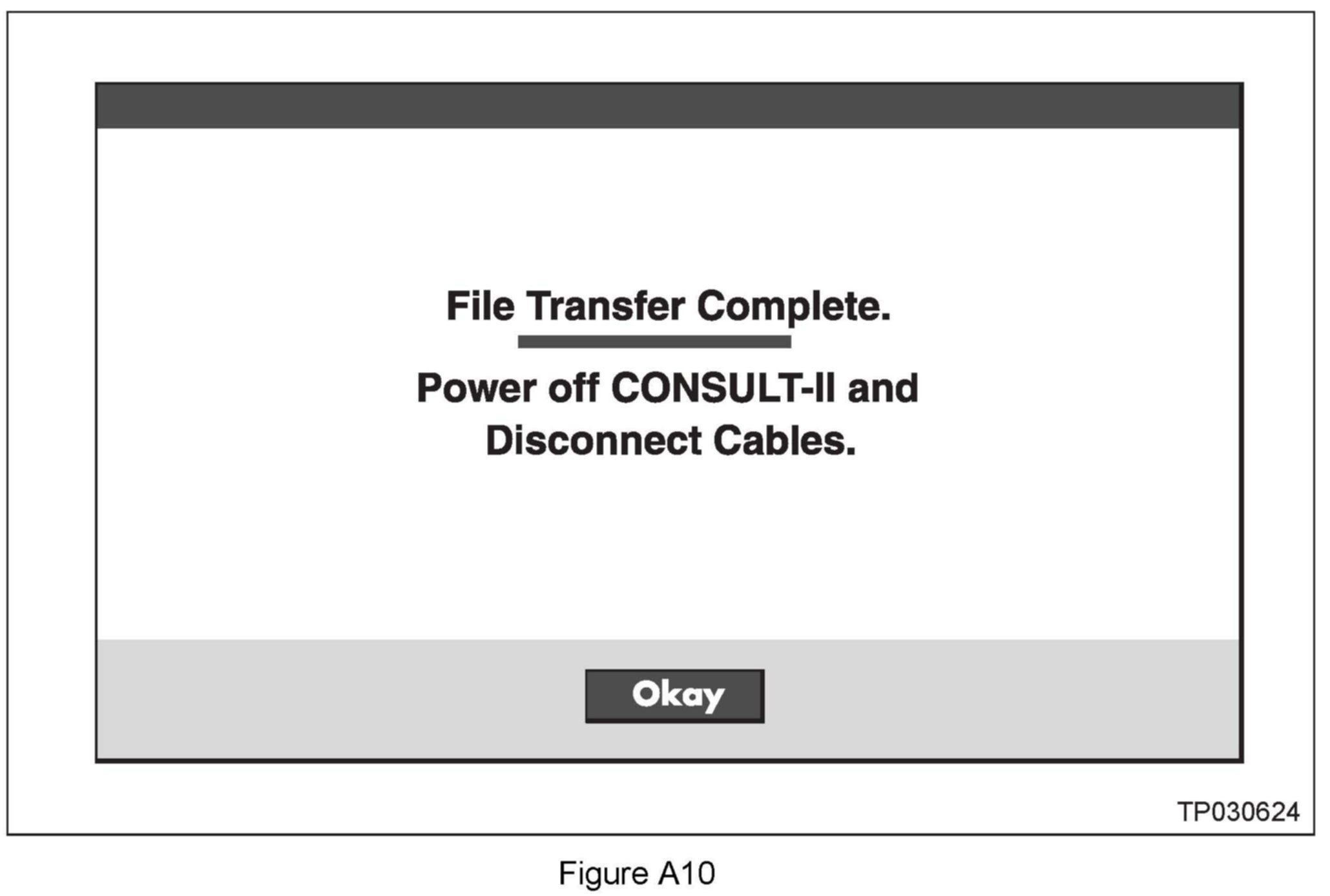

11. When transfer is complete as shown in Figure A10.
A. Select (click on) "Okay", then "MAIN MENU".
B. Turn OFF CONSULT-II.
C. Disconnect the AC power cord and the Ethernet cable from CONSULT-II.
Download New Data From CONSULT-II into the Vehicle (Reprogram ECM)
CAUTION:
^ Perform this operation in four (4) sections. DO NOT SKIP any of these sections.
^ They must be performed in order, 1 through 4.
Section 1: Connect a battery charger and CONSULT-II to the vehicle.
Section 2: Confirm the vehicle battery voltage and CONSULT-II "Charger Input".
Section 3: Perform ECM Reprogramming.
Section 4: Perform ECM Reprogram Confirmation.
Section 1: Connect a battery charger and CONSULT-II to the vehicle.
12. Confirm the ignition switch is OFF.
13. Connect a battery charger to the vehicle battery.
A. Set the charger at a low charge rate (trickle charge).
IMPORTANT
14. Connect CONSULT-II to the vehicle using the DLC-II cable with black Converter Box (see Figure A11).
VERY IMPORTANT:
^ Make sure the DLC-II is straight and fully plugged in to the vehicle.
^ Make sure all other DLC-II cable connections shown in Figure A11 are connected properly.
CAUTION
15. Turn ON the ignition switch (do not start the engine).
^ CONSULT-II will turn ON automatically (see Figure A12).
Confirm that all electrical loads* (except for the ignition) are OFF.
^ * Headlights, defroster, A/C, Audio (radio), and cellular telephone, etc.
16. Roll down the driver's window part way, exit the vehicle, close the door, and hang the CONSULT-II unit on the outside of the window (see figure A13).
^ This step is necessary to ensure the CONSULT-II and DLC-II cable will not be disturbed during reprogramming.
CAUTION:
DO NOT connect the CONSULT-II AC power supply for Steps 17, 18 and 19.
Section 2: Confirm the vehicle's battery voltage and CONSULT-II "Charger Input"
17. Press [SUB MODE] (see Figure A14) then:
A. Press [DOWN] 4 times.
B. Select [BATTERY CHARGE].
18. Check the CONSULT-II's "Charger Input" reading (see Figure A14).
NOTE;
^ "Battery Voltage" is the voltage level of CONSULT-II's battery.
^ "Charger Input" is the voltage level of the vehicle's battery; (it must be above 12 volts.).
19. The "Charger Input" reading MUST be above 12 volts (see Figure A14).
^ A reading above 12 volts confirms;
a. The DLC-II is properly connected to the vehicle,
b. The vehicle battery voltage is sufficient for ECM reprogramming, and
c. CONSULT-II has a sufficient power supply to perform ECM reprogramming.
^ If the vehicles battery voltage ("Charger Input") is below 12 volts, one or more of the following may be the cause:
a. The battery charger you hooked up in section 1 is not charging the battery (poor connection or it is not working).
b. The DLC-II does not have a good connection to the vehicle (not straight).
c. The DLC-II cable may have a malfunction (damaged wire or pins).
d. The CONSULT-II Converter (J44200-50 / black box) is not working correctly
CAUTION
Section 3: ECM Reprogramming
20. Press [INITIATE ECU REPROGRAM] (see Figure A15), then
A. Press [ECM]
B. Review the precaution
C. Press [NEXT]
21. Press [CHECK ECM P/N] to "confirm" (take note of) the current ECM part number (see Figure A16).
NOTE:
This is the vehicle's ECM part number BEFORE Reprogramming.
22. Press [COPY] to print the current ECM part number for future reference.
23. Press [BACK] to return to the main menu.
24. Select the ECM program to install (see Figure A17).

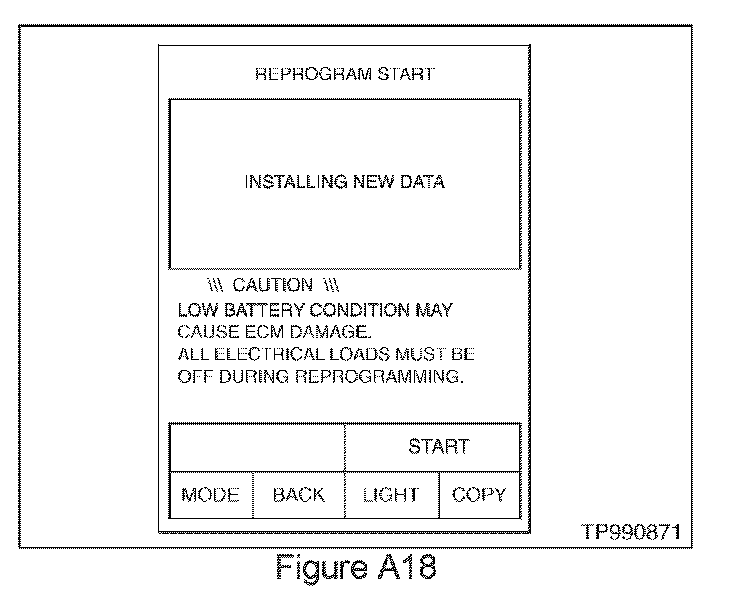

25. The "REPROGRAM START" window should appear (see Figure A18).
^ NOTE:
If you get an error message, refer to the ECU Reprogramming Software Operations Manual.
CAUTION DURING REPROGRAMMING:
^ Do not unplug CONSULT-II from the vehicle during reprogramming. Permanent ECM damage can occur.
^ Do not open any door or the trunk during reprogramming.
^ On some vehicles, the cooling fans may come on during reprogramming. This is a normal condition. Do not disconnect the cooling fans. Forgetting to reconnect them may cause severe engine damage. A vehicle battery charger is needed* to maintain the battery voltage level during reprogramming.
* You should have hooked up a battery charger in Section 1
26. Press [START].
^ After a few seconds, the window shown in Figure A19 will appear.
^ CONSULT-II will now turn OFF its screen backlight.
^ When the screen backlight goes OFF, ECM reprogramming has started.
NOTE:
This process will take from 10 to 20 minutes.
CAUTION:
You must leave the vehicle and the CONSULT-II unit "undisturbed" (don't touch) until reprogramming is complete.
NOTE:
If the CONSULT-II screen gives you an error message "Unmatch of Vehicle Data":
^ You tried to reprogram with an incorrect data file, or
^ You are trying to reprogram with a file that is already in the ECM.
27. When the Reprogramming is complete, CONSULT-II will "beep", turn the screen backlight back ON and automatically print out a report (see Figure A20).
^ Remember it may take up to 20 minutes.
^ Attach the print-out to the repair order for future reference.
CAUTION
If CONSULT-II prints "REPROGRAMMING UNEXPECTEDLY TERMINATED":
^ The ECM has been permanently damaged and will require replacement.
^ In this case, perform steps A through F (under "Programming Unexpectedly Terminated" below.
Do not start the engine with the damaged ECM installed.
The chart above is provided as a reference to confirm the correct final ECM P/N after reprogramming
NOTE:
^ Part numbers for ECM programs are subject to change.
^ If a more recent part number is available for any of the ECM data (specified in the Chart above) the latest version should be used to complete this campaign repair.
^ ASIST contains the latest version of all ECM data.
28. Press [END] to return to the main menu.
29. Turn the ignition switch OFF and CONSULT-II OFF.
30. Wait more than 10 seconds, then turn the ignition switch ON for 1 second. Then, turn the ignition switch OFF again for 10 seconds (see Figure A21).
^ This will reset ECM self learned Data.
Section 4: Perform ECM Reprogram Confirmation.
31. Start the engine.
32. Check engine idle speed.
^ If idle speed is too low, perform IAVL (Idle Air Volume Learning). See the appropriate Service Manual (ESM) for this procedure.
NOTE:
If the engine will not idle, hold the engine RPM at about 2000, then slowly bring it down to an idle. IAVL can now be performed.
33. Confirm the engine is operating normally
34. Make sure the Check Engine Light (MIL) is not ON.
^ If necessary, use CONSULT-II and the Diagnostic (red/white) Card to erase any DTC's that may have stored during the reprogramming procedure.
PROGRAMMING UNEXPECTEDLY TERMINATED (See step 27):
^ The ECM has been permanently damaged and will require replacement.
^ Perform steps A through F below.
CAUTION:
Do not start the engine with the damaged ECM installed.
A. Turn the ignition OFF, turn CONSULT-II OFF, and DISCONNECT THE NEGATIVE TERMINAL OF THE VEHICLE BATTERY.
B. Attach the CONSULT-II print-out to the repair order for future reference.
C. Replace the damaged ECM.
D. Reconnect the negative battery cable.
E. Perform IAVL (Idle Air Volume Learning). See the appropriate Service Manual (ESM) for this procedure.
F. Check the new ECM's current P/N. Make sure it is the latest (newest) P/N see step 21.
NOTE:
^ A new ECM from the parts department may not have the newest program.
^ If needed, return to step 5 of this procedure (Appendix B: ECM Reprogramming) and reprogram the new ECM with the latest available P/N. Be careful to follow each step exactly as written.
