Air Flow Meter/Sensor: Service and Repair

AIR CLEANER AND AIR DUCT

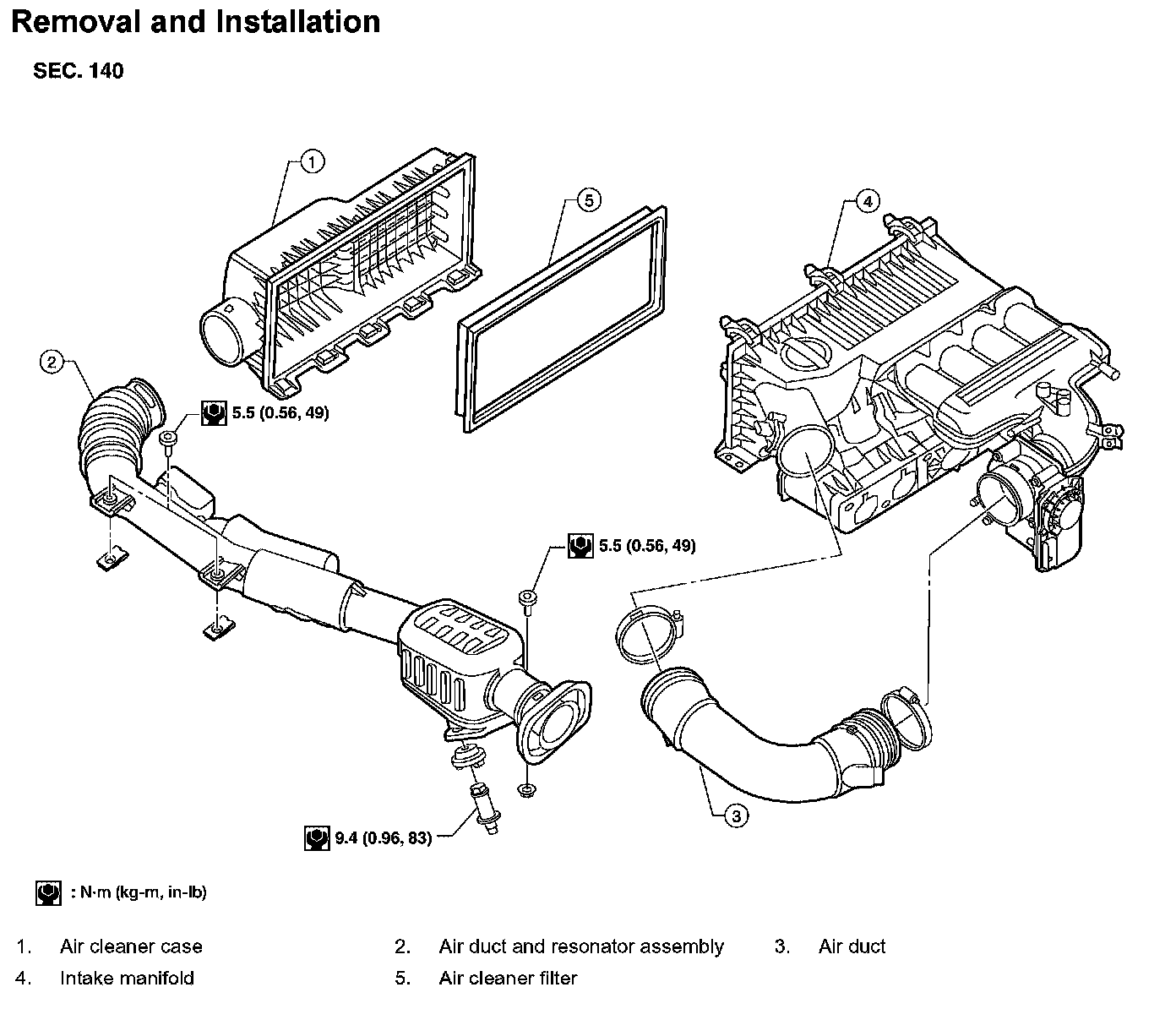

REMOVAL
1. Remove two bolts and remove air duct.
^ Add mating marks as necessary for easier installation.
2. Remove resonator in fender lifting left fender protector, as necessary.

INSPECTION AFTER REMOVAL
Inspect air duct assembly for cracks or tear.
^ Replace air duct assembly, if necessary.

INSTALLATION
Installation is in the reverse order of removal.
^ Align marks. Attach each joint. Screw clamps firmly
^ Install duct to intake manifold by aligning "LOCK-UNLOCK" upward.
