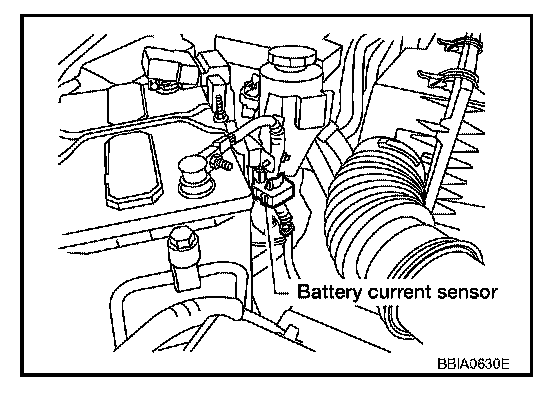

Battery Current Sensor: Locations

QR25DE:

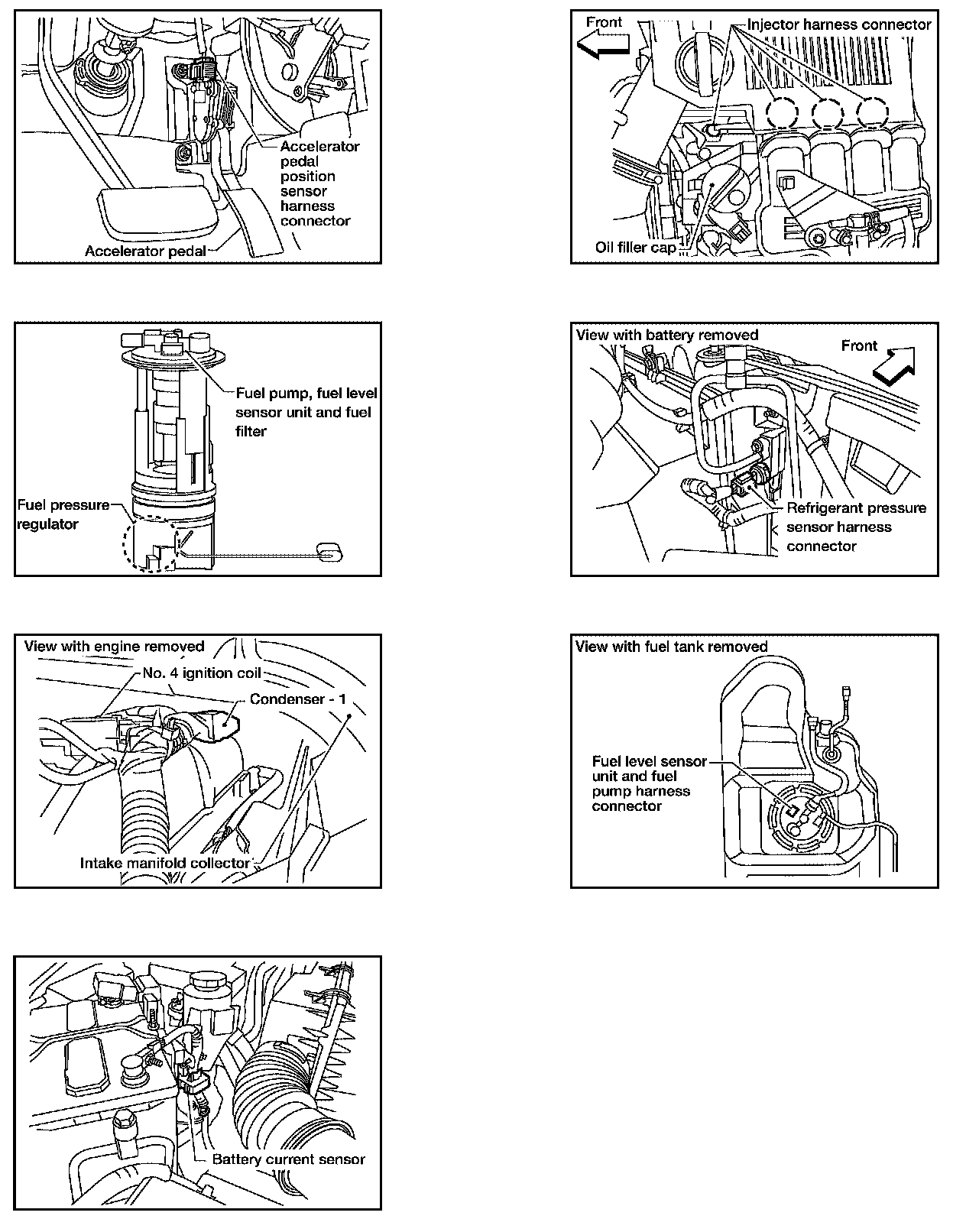

Engine Control Component Parts Location:



Engine Control Component Parts Location:
