Inspection Between TCM And Data Link Connector Circuit
Inspection Between TCM And Data Link Connector Circuit

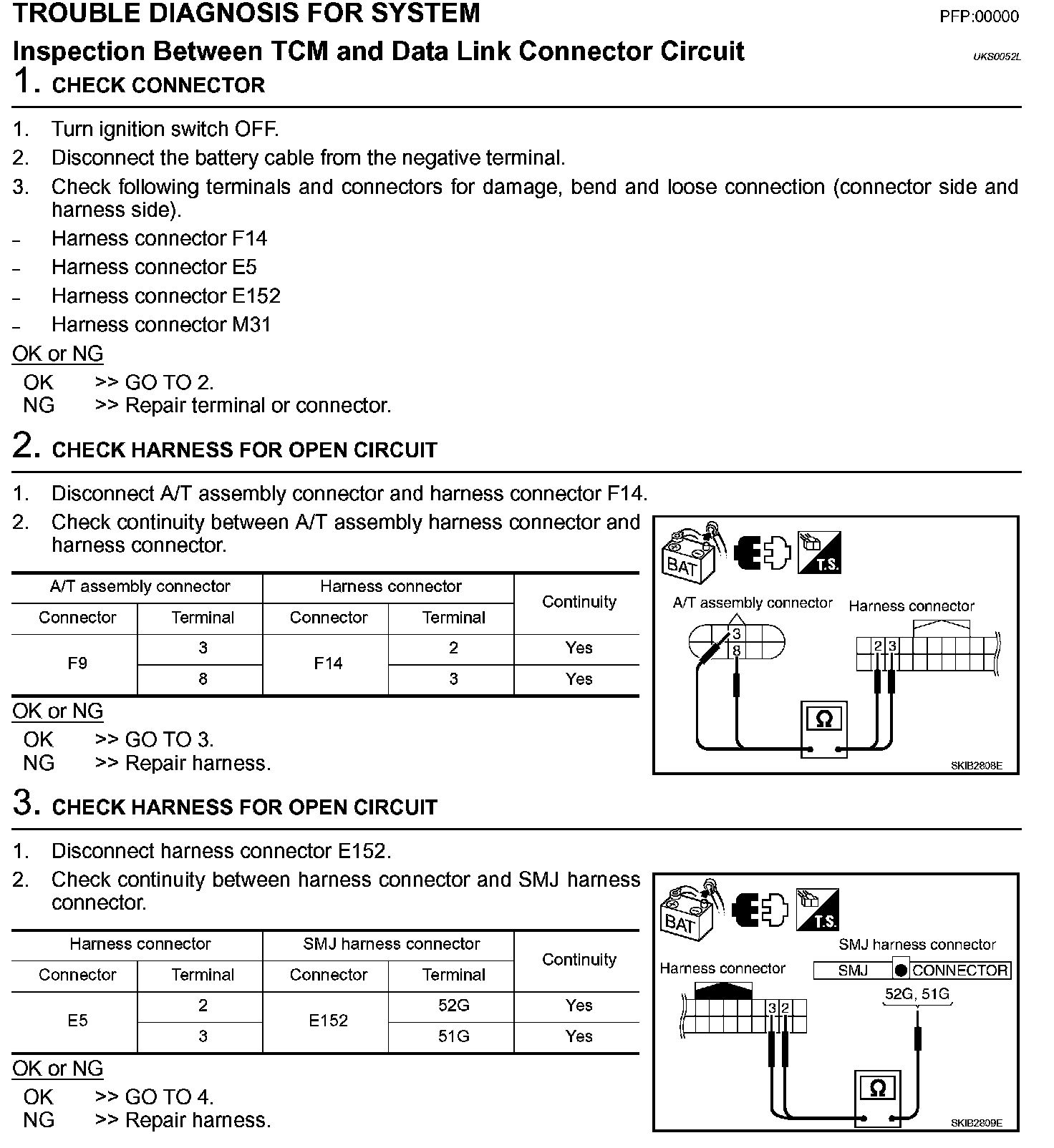

Inspection Between TCM And Data Link Connector Circuit (Steps 1 - 3):

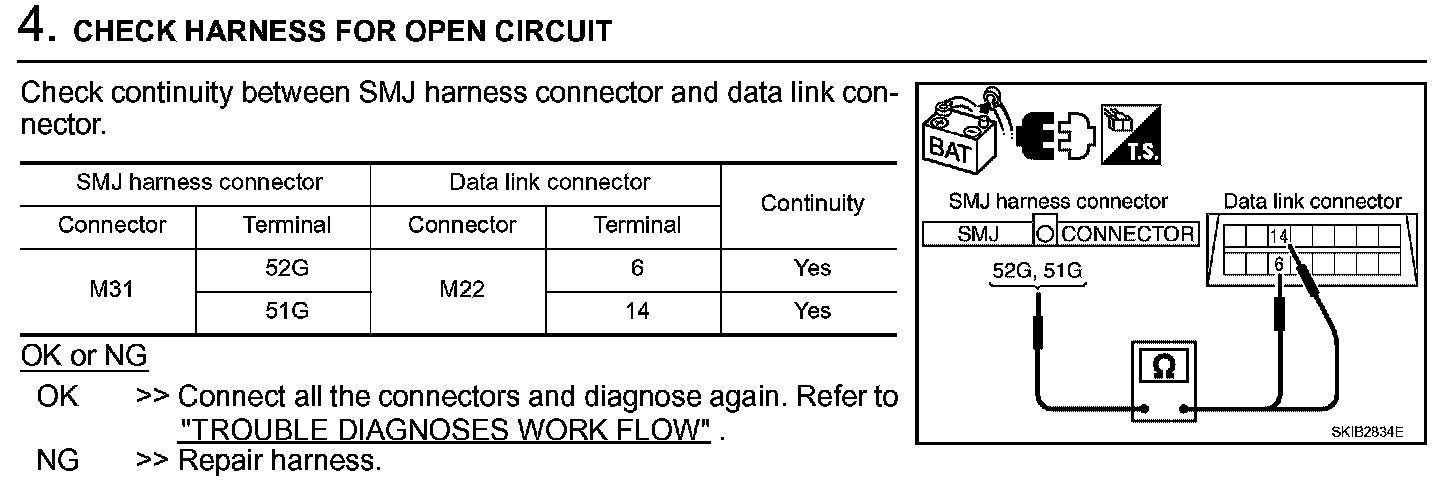

Inspection Between TCM And Data Link Connector Circuit (Step 4):
