Condenser: Testing and Inspection

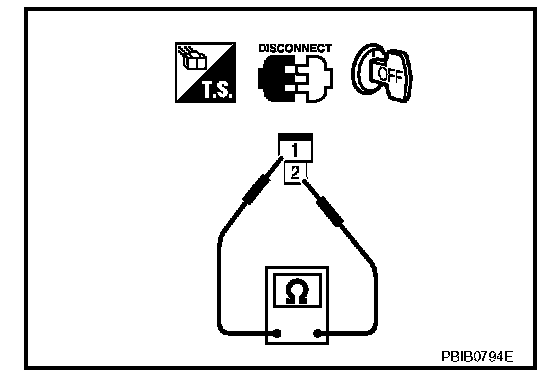

CONDENSER-11. Turn ignition switch OFF.
2. Disconnect condenser-1 harness connector.
3. Check resistance between condenser-1 terminals 1 and 2.
Resistance: Above 1 M Ohms [at 25 degrees C (77 degrees F)]
1. Turn ignition switch OFF.
2. Disconnect condenser-1 harness connector.
3. Check resistance between condenser-1 terminals 1 and 2.
Resistance: Above 1 M Ohms [at 25 degrees C (77 degrees F)]
