Home >> Nissan-Datsun >> 2006 >> Frontier 2WD L4-2.5L (QR25DE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Alignment >> Front Suspension

Front Suspension

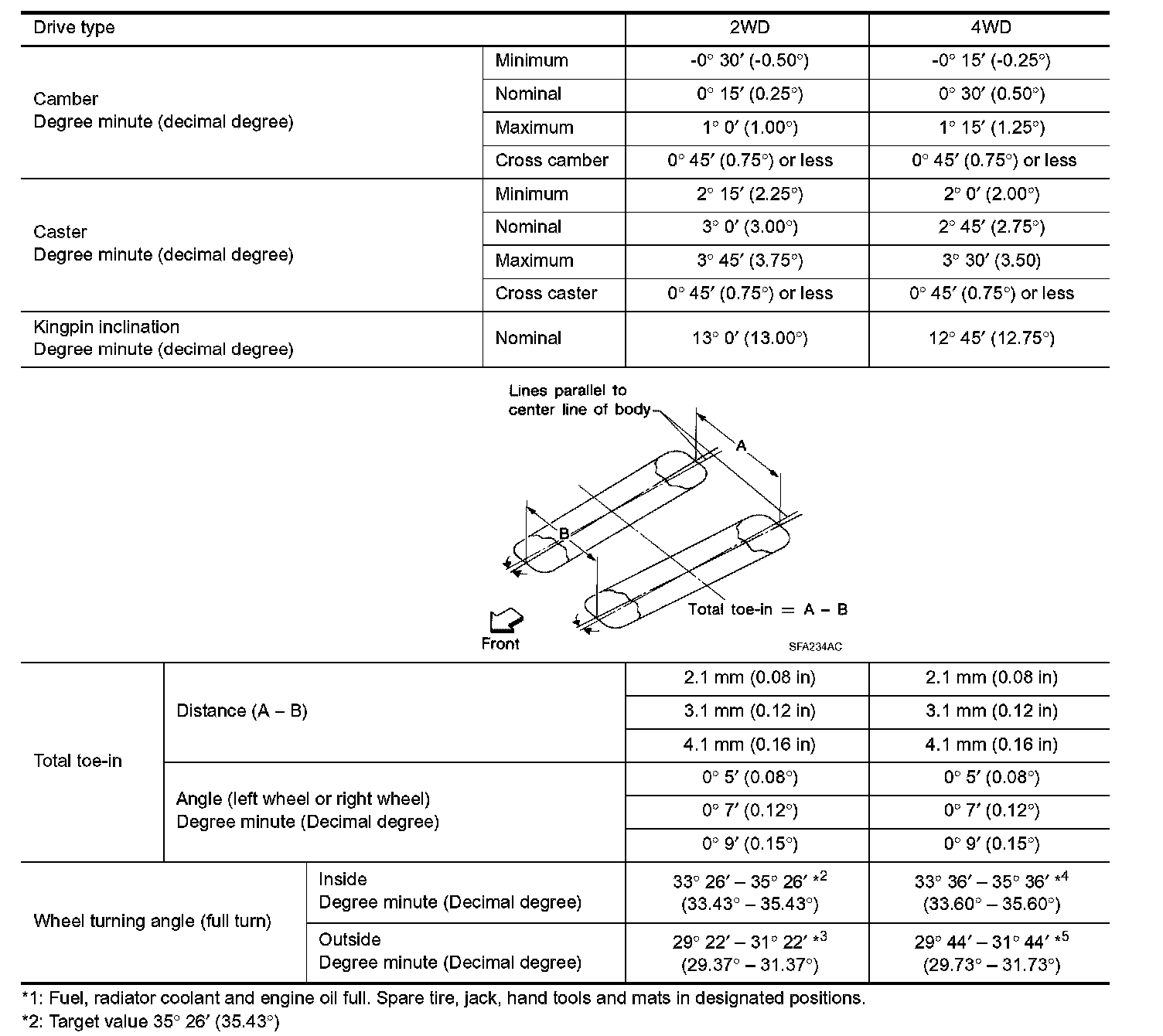

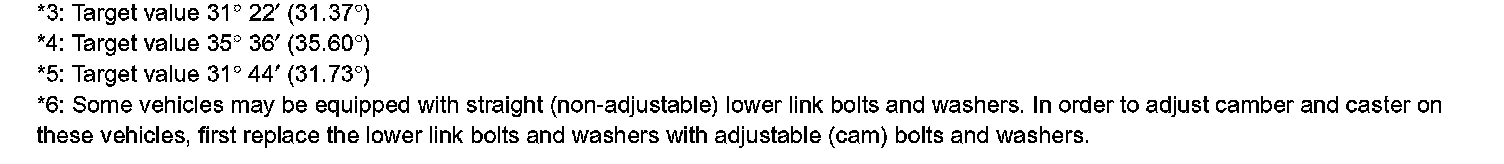

Wheel Alignment (Unladen*1)*6:



Wheel Alignment (Unladen*1)*6:
