Intake Manifold

Intake Manifold

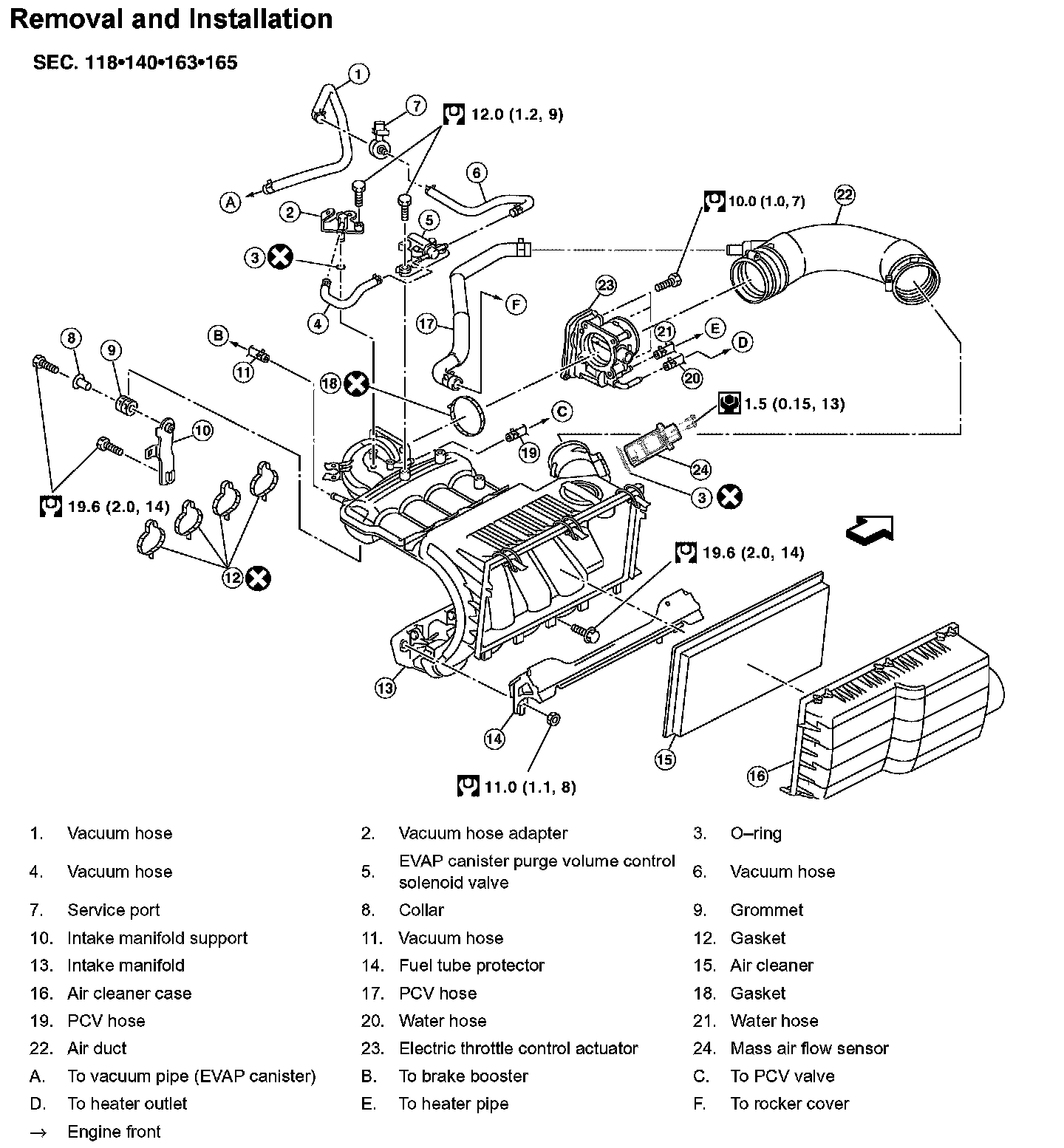

Image Symbols:

^ If stud bolts were removed, install them and tighten to the specified torque below.
Intake manifold bolts 9.4 Nm (0.96 kgf-m, 83 inch lbs.)

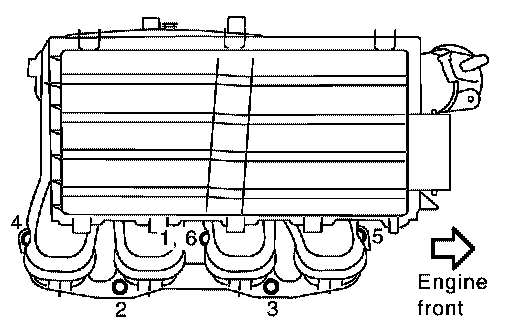

^ Tighten in numerical order as shown.

NOTE: No. 6 means double tightening of bolt No. 1.

Refer to the following for locating bolts and nuts.
M8 x 38 mm (1.50 inch) (Color green): No. 1, 6
M8 x 35 mm (1.38 inch): No. 2, 3
Nut: No. 4, 5
