Data Link Connector: Locations

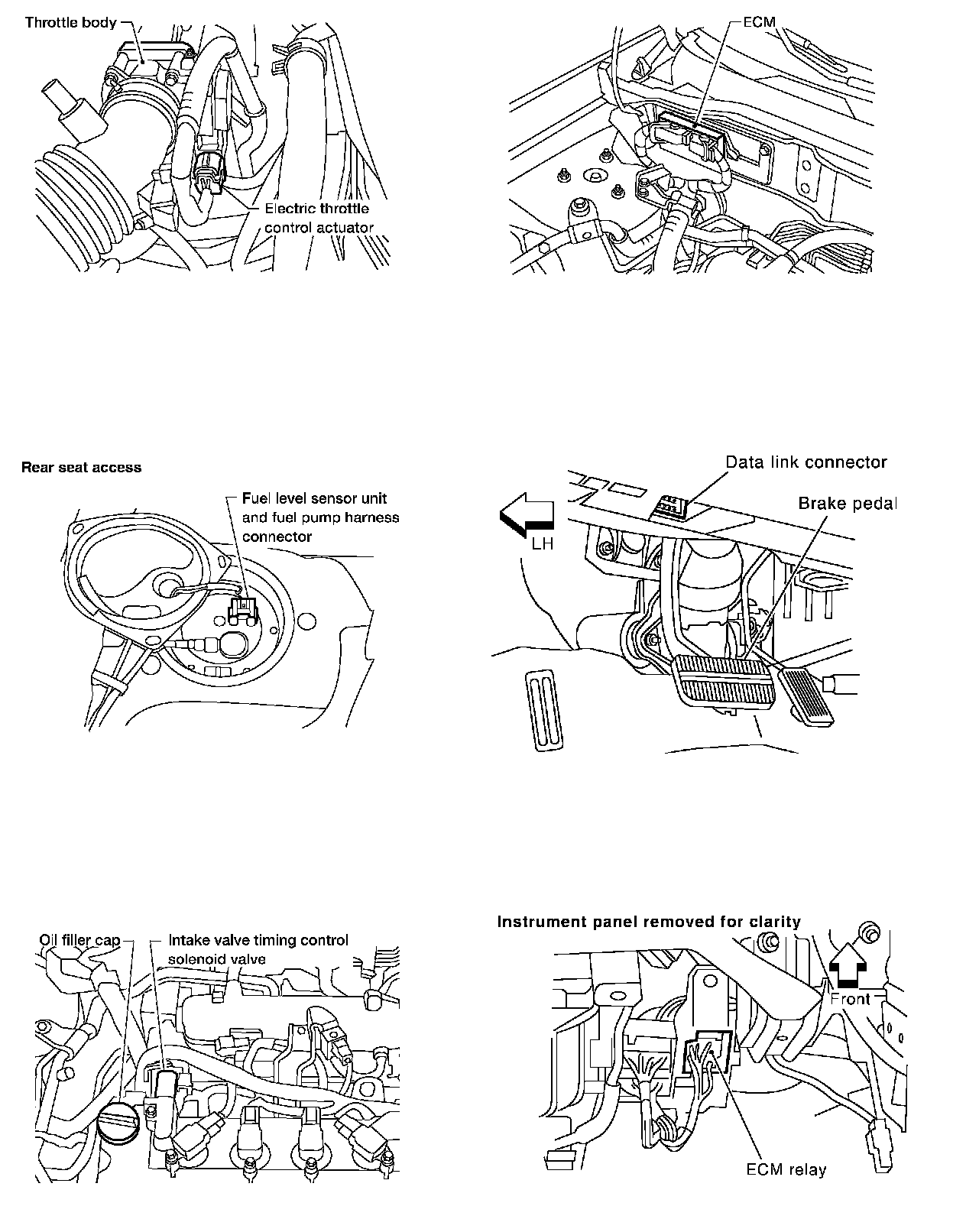

Engine Control Component Parts Location:



Engine Control Component Parts Location:

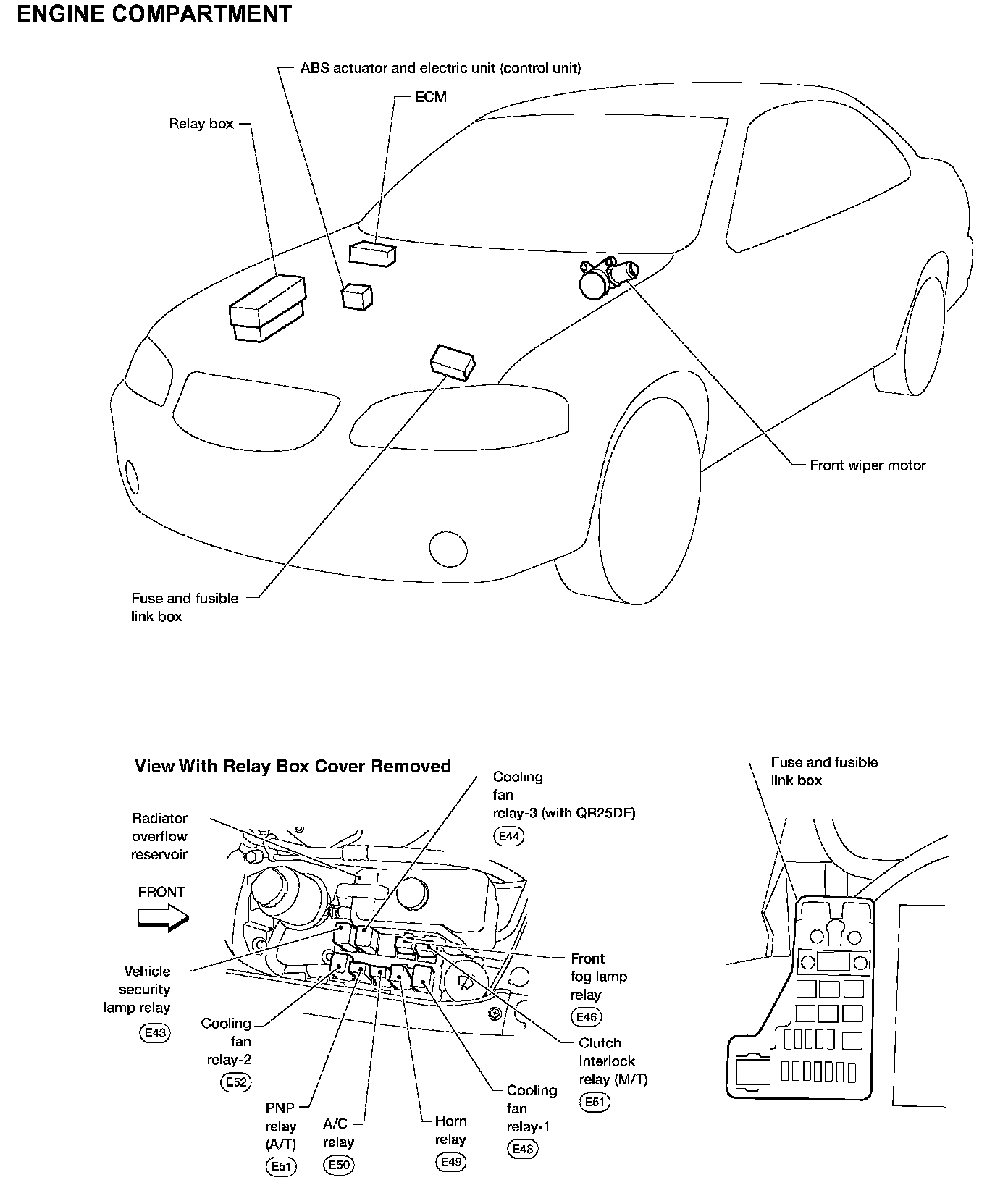

Engine Compartment Electrical Units Locations:
